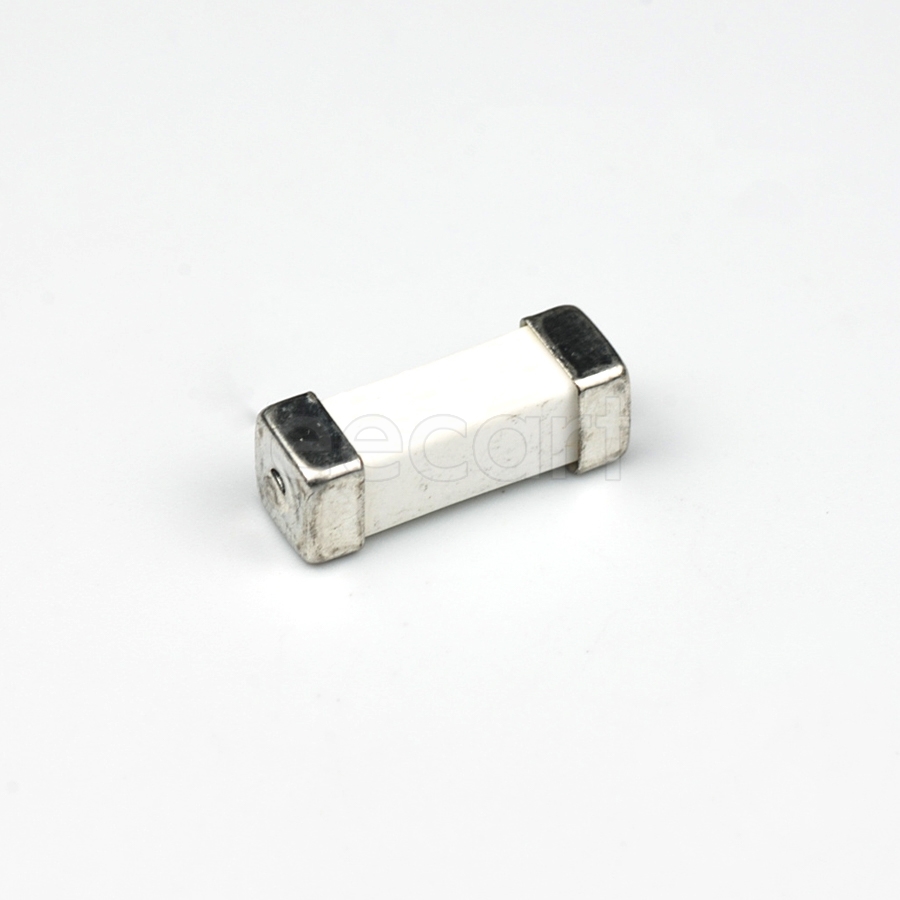

3403.0171.11
Manufacturer:
Schurter
Mfr.Part #:
3403.0171.11
Datasheet:
Description:
Fuses SMD/SMT Time Delay / Slow Blow 3.15 A Voltage Rating (AC):250 V Voltage Rating (DC):125 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 10.1 mm |
| Width | 3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Height | 3 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 0.23 g |
| Contact Plating | Tin |
| Type | Time Delay / Slow Blow |
| Current Rating | 3.15 A |
| Max Voltage Rating (DC) | 125 V |
| Approvals | CQC, CSA, IEC, KC, PSE, TUV, UL, VDE, cURus |
| Max Power Dissipation | 1.5 W |
| Power Dissipation | 1.5 W |
| Body Material | Ceramic |
| Terminal Material | Tin |
| Housing Material | Ceramic |
| Max Voltage Rating (AC) | 250 V |
| Size | 3 mm x 10.1 mm |
Stock: 440
Distributors
pcbx
pcbxUnit Price$0.86946
Ext.Price$0.86946
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.86946 | $0.86946 |
| 10 | $0.80107 | $8.01070 |
| 25 | $0.68242 | $17.06050 |
| 50 | $0.58135 | $29.06750 |
| 100 | $0.49159 | $49.15900 |
| 300 | $0.46388 | $139.16400 |
| 500 | $0.43773 | $218.86500 |
| 1000 | $0.43601 | $436.01000 |
