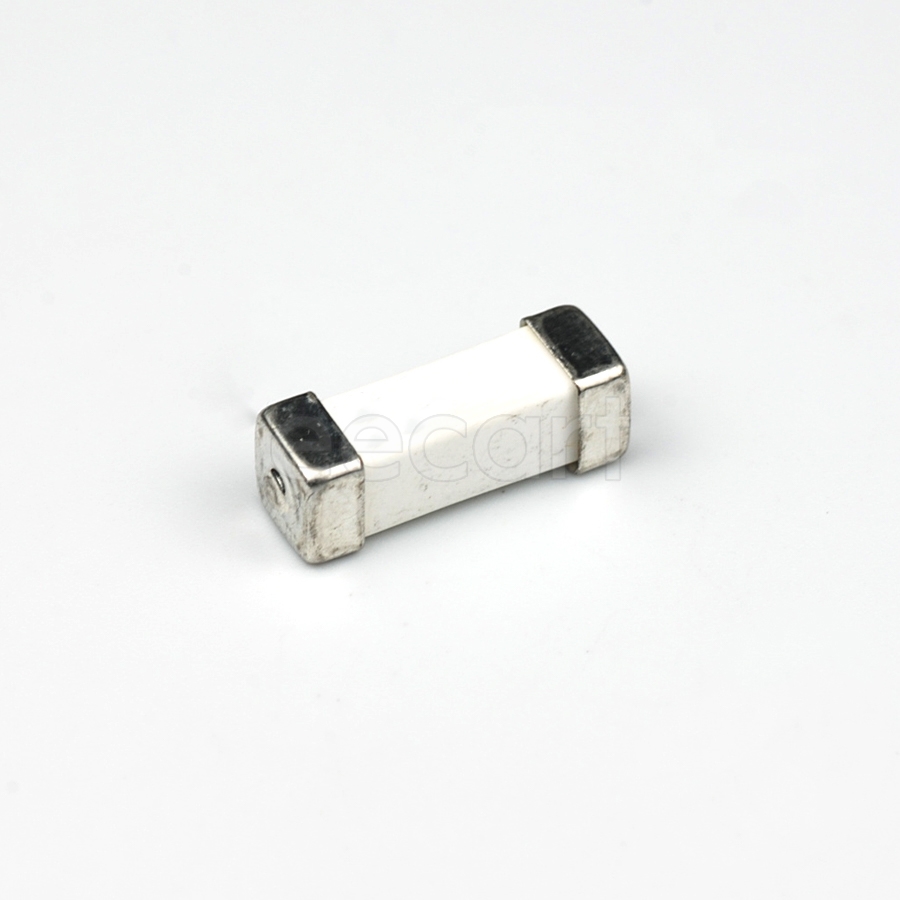

3403.0266.23
Manufacturer:
Schurter
Mfr.Part #:
3403.0266.23
Datasheet:
Description:
Fuses SMD/SMT Time Delay / Slow Blow 160 mA Voltage Rating (AC):277 V Voltage Rating (DC):250 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 15.3924 mm |
| Width | 5.35 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 277 V |
| Height | 5.35 mm |
| Packaging | Reel |
| Voltage Rating | 277 V |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Type | Time Delay / Slow Blow |
| Current Rating | 160 mA |
| Approvals | VDE, cURus |
| Body Material | Ceramic |
| Terminal Material | Tin |
| Fuse Current | 160 mA |
| Size | 5.3 mm x 16 mm |
Stock: 2337
Distributors
pcbx
pcbxUnit Price$0.91392
Ext.Price$0.91392
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.91392 | $0.91392 |
| 10 | $0.90857 | $9.08570 |
| 25 | $0.90325 | $22.58125 |
| 50 | $0.89796 | $44.89800 |
| 100 | $0.89270 | $89.27000 |
| 300 | $0.88747 | $266.24100 |
| 500 | $0.88229 | $441.14500 |
| 1000 | $0.85750 | $857.50000 |
