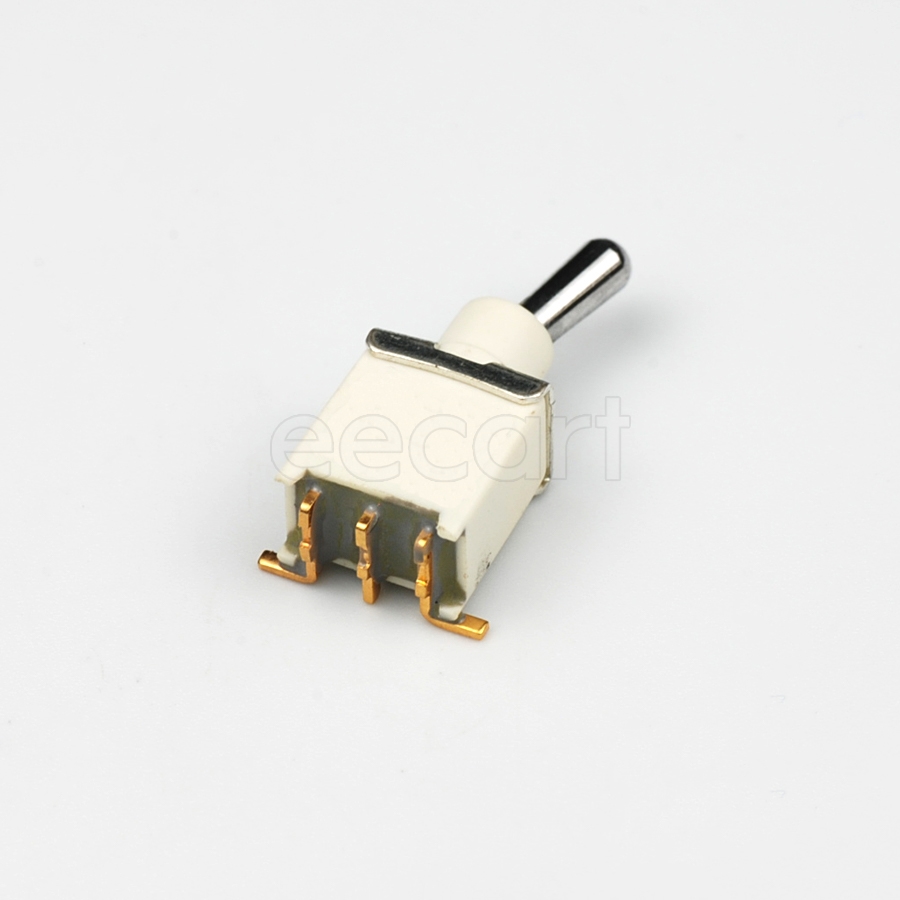

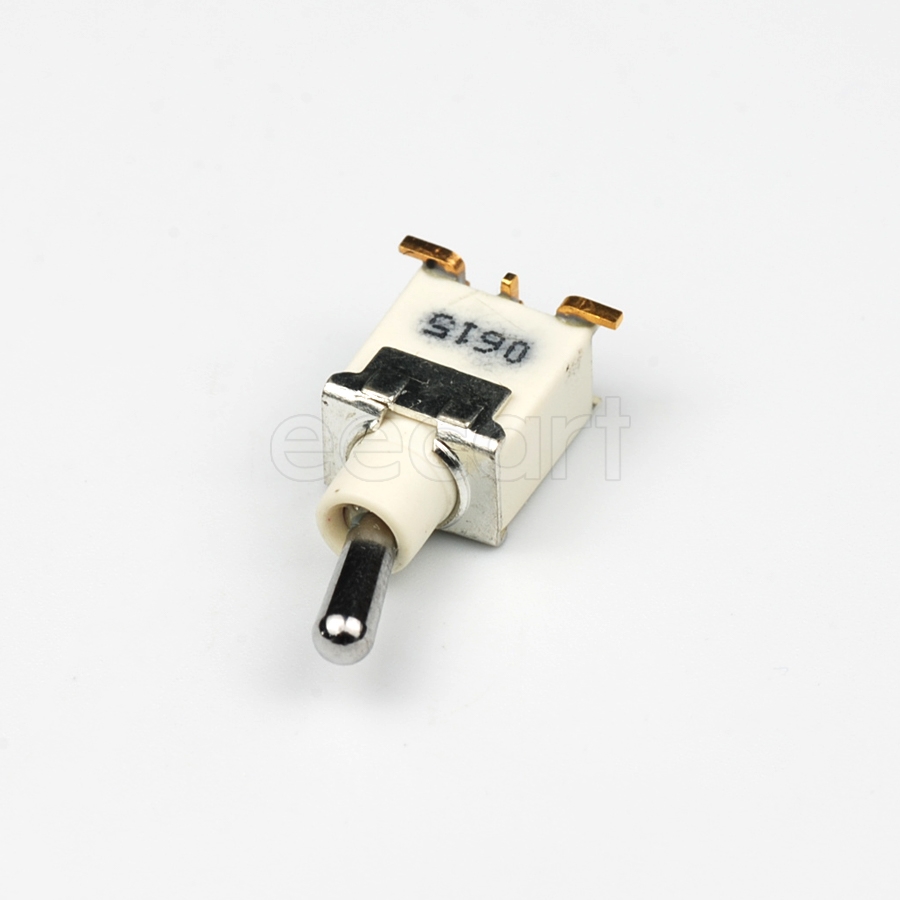

34EWMSP12M6RT
Manufacturer:
Grayhill
Mfr.Part #:
34EWMSP12M6RT
Datasheet:
Description:
Toggle Switches SMD/SMT Current Rating:400 mA SPDT ON - ON Standard Round
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 20 V |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 20 V |
| Power Rating | 400 mW |
| Circuit Type | SPDT |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Current Rating | 400 mA |
| Max Voltage Rating (DC) | 20 V |
| Orientation | Right Angle |
| Actuator Length | 6.1 mm |
| Throw Configuration | SPDT |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 20 V |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 30 kcycles |
| Actuator Material | Brass, Chrome |
| Mechanical Life | 30 kcycles |
| Actuator Type | Standard Round |
| Termination Style | Gull Wing Lead |
Stock: 570
Distributors
pcbx
pcbxUnit Price$3.99169
Ext.Price$3.99169
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.99169 | $3.99169 |
| 10 | $3.44695 | $34.46950 |
| 25 | $3.25061 | $81.26525 |
| 50 | $3.10921 | $155.46050 |
| 100 | $2.97374 | $297.37400 |
| 300 | $2.82350 | $847.05000 |
| 500 | $2.68084 | $1340.42000 |
