35362-0450
Manufacturer:
Molex
Mfr.Part #:
35362-0450
Datasheet:
Description:

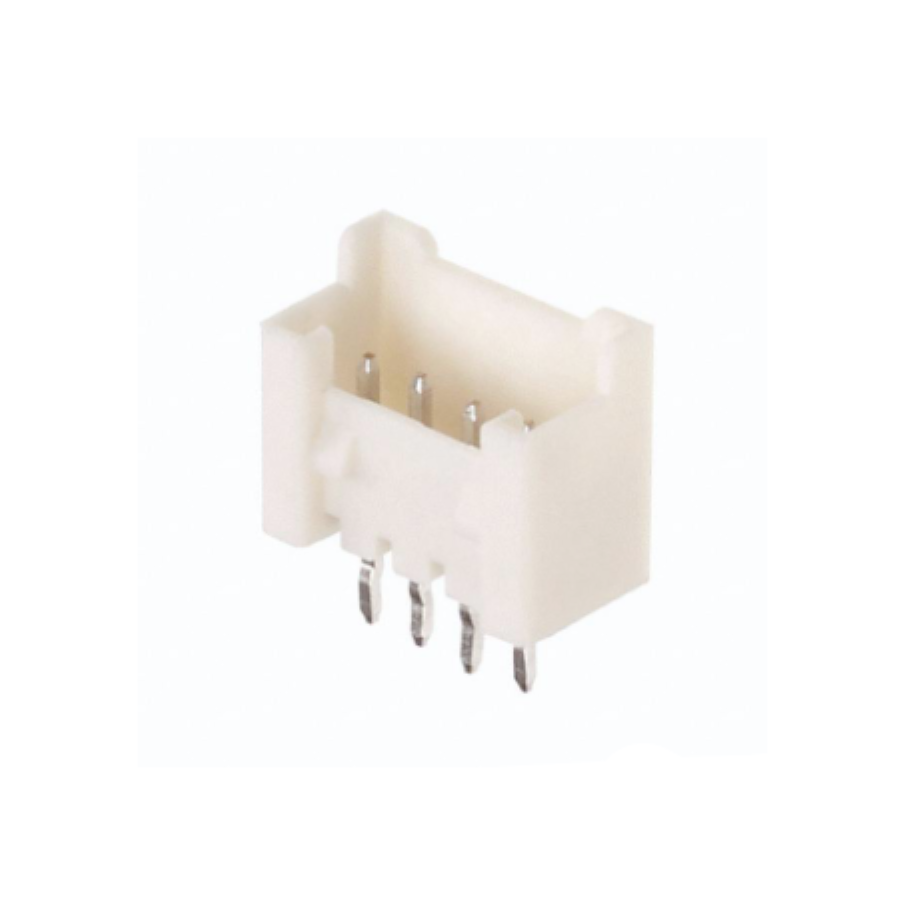

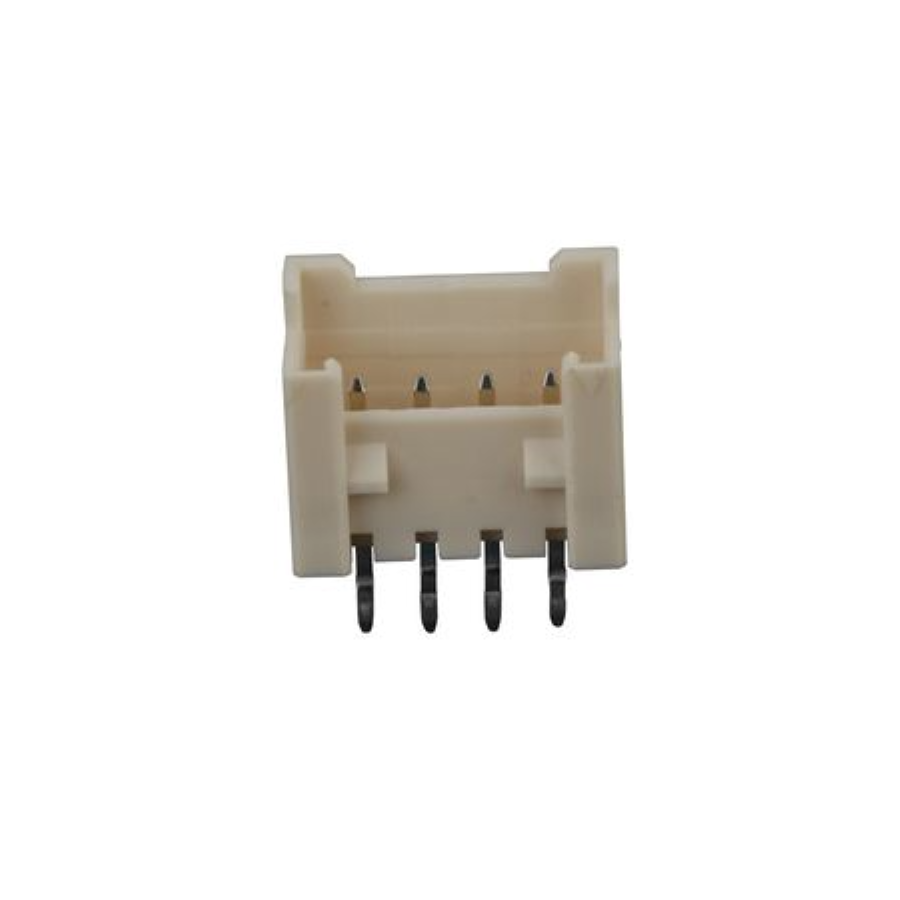

Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Width | 12.3 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 4 |
| Height | 8.7 mm |
| Packaging | Bulk |
| Voltage Rating | 125 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Weight | 0.285 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Max Voltage Rating (DC) | 125125 V (125.125 kV) |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Mating Post Length | 3.7 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.3 mm |
Stock: 11393
Distributors
pcbx
pcbxUnit Price$0.20690
Ext.Price$0.20690
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20690 | $0.20690 |
| 10 | $0.17440 | $1.74400 |
| 50 | $0.16014 | $8.00700 |
| 100 | $0.14705 | $14.70500 |
| 500 | $0.12180 | $60.90000 |
| 1000 | $0.10088 | $100.88000 |
