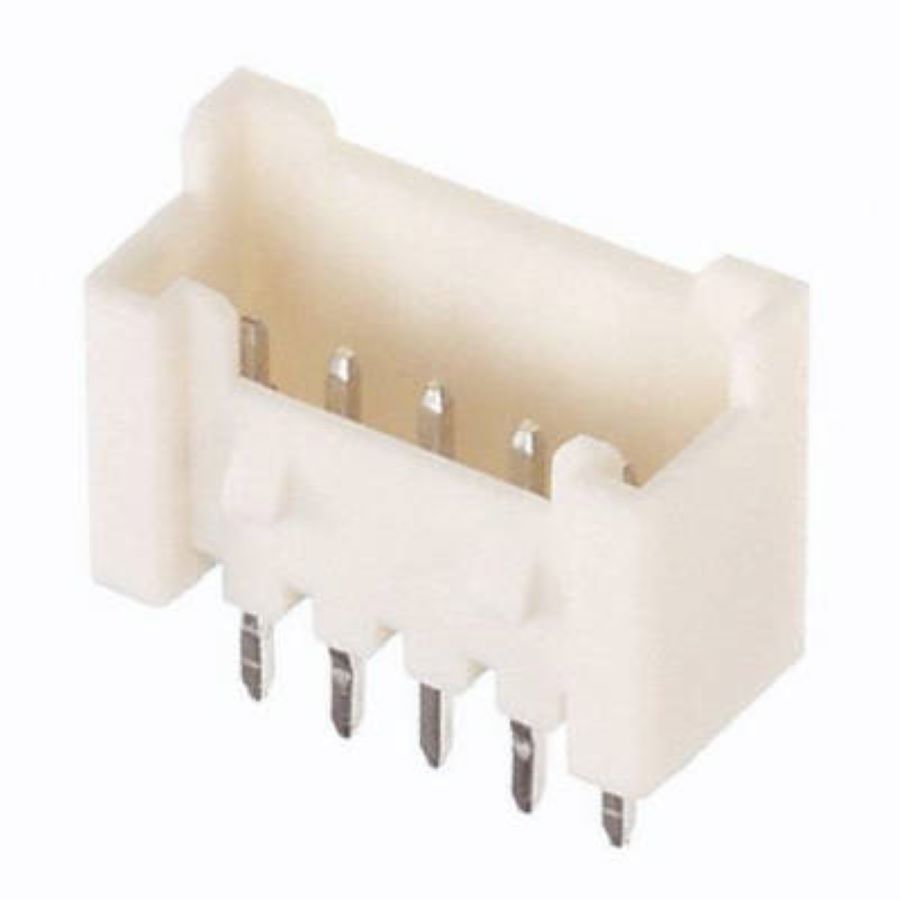

35362-0550
Manufacturer:
Molex
Mfr.Part #:
35362-0550
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:5 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 12.3 mm |
| Width | 14.3 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 5 |
| Height | 8.7 mm |
| Packaging | Bulk |
| Voltage Rating | 125 V |
| Depth | 5.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Max Voltage Rating (DC) | 125 V |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 5 |
| Connector Type | Header |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Ramp |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Housing Color | Natural |
| Plating | Tin |
| Contact Mating Length | 3.683 mm |
| Mating Post Length | 3.7 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | KR |
| Termination Post Length | 3.3 mm |
Stock: 6865
Distributors
pcbx
pcbxUnit Price$0.21287
Ext.Price$0.21287
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21287 | $0.21287 |
| 10 | $0.18552 | $1.85520 |
| 50 | $0.16613 | $8.30650 |
| 100 | $0.14876 | $14.87600 |
| 500 | $0.13995 | $69.97500 |
| 1000 | $0.13166 | $131.66000 |
| 3000 | $0.12311 | $369.33000 |
| 5000 | $0.12095 | $604.75000 |
| 10000 | $0.11883 | $1188.30000 |
