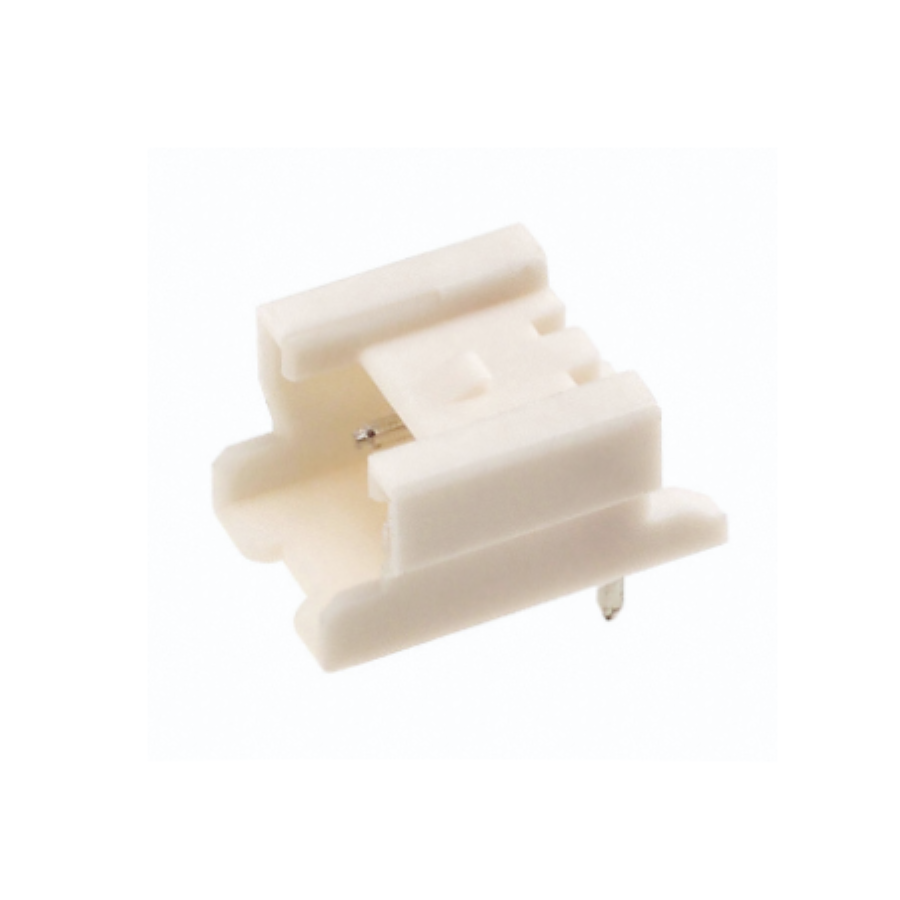

35363-0260
Manufacturer:
Molex
Mfr.Part #:
35363-0260
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 14.7 mm |
| Width | 8.3 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Height | 2.3 mm |
| Packaging | Bulk |
| Voltage Rating | 125 V |
| Depth | 2.3 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Max Voltage Rating (DC) | 600 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 3.7 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | TW |
| Termination Post Length | 3.2 mm |
Stock: 13087
Distributors
pcbx
pcbxUnit Price$0.10003
Ext.Price$0.10003
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10003 | $0.10003 |
| 10 | $0.08977 | $0.89770 |
| 50 | $0.08743 | $4.37150 |
| 100 | $0.08515 | $8.51500 |
| 500 | $0.08480 | $42.40000 |
| 1000 | $0.08446 | $84.46000 |
| 3000 | $0.08426 | $252.78000 |
| 5000 | $0.08406 | $420.30000 |
| 10000 | $0.08387 | $838.70000 |
