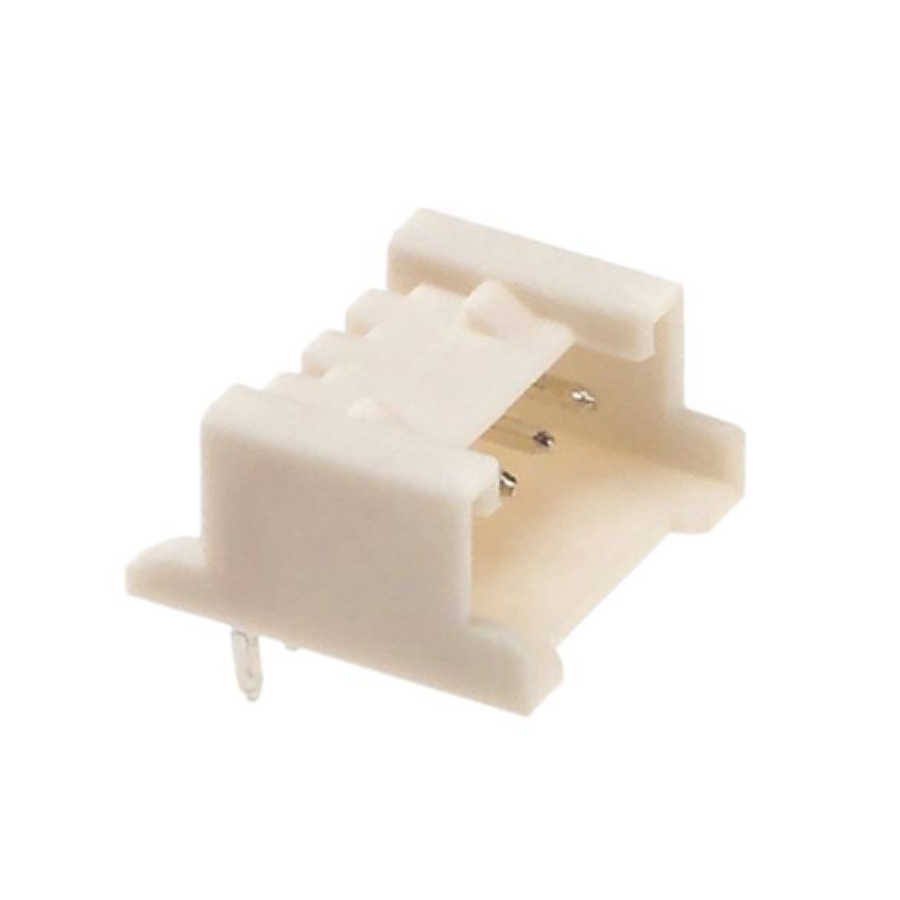

35363-0460
Manufacturer:
Molex
Mfr.Part #:
35363-0460
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Width | 12.3 mm |
| Termination | Kinked Pin, Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Packaging | Bulk |
| Voltage Rating | 125 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 3.7 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | TW |
| Termination Post Length | 3.2 mm |
Stock: 2737
Distributors
pcbx
pcbxUnit Price$0.24366
Ext.Price$0.24366
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.24366 | $0.24366 |
| 10 | $0.18809 | $1.88090 |
| 25 | $0.18210 | $4.55250 |
| 50 | $0.17424 | $8.71200 |
| 100 | $0.16671 | $16.67100 |
| 300 | $0.16019 | $48.05700 |
| 500 | $0.15392 | $76.96000 |
| 1000 | $0.14790 | $147.90000 |
| 3000 | $0.13679 | $410.37000 |
| 5000 | $0.13333 | $666.65000 |
| 10000 | $0.12995 | $1299.50000 |
