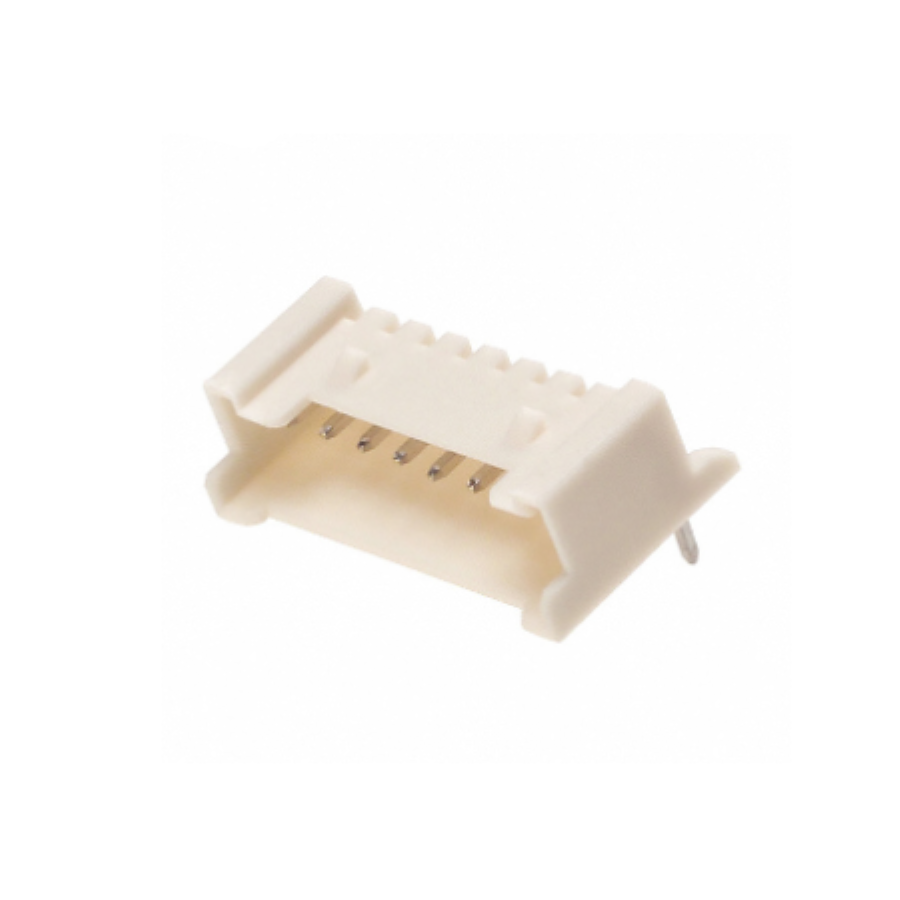

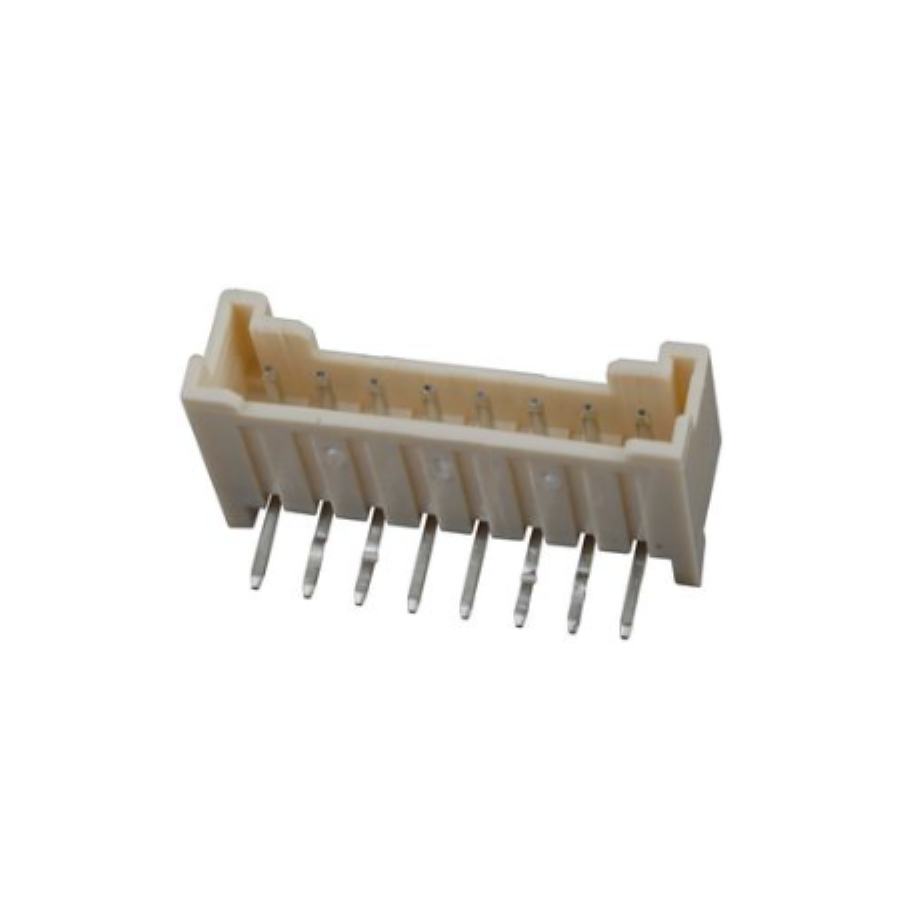

35363-0860
Manufacturer:
Molex
Mfr.Part #:
35363-0860
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:8 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 18.3 mm |
| Width | 20.3 mm |
| Termination | Kinked Pin, Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Packaging | Bulk |
| Voltage Rating | 125 V |
| Depth | 8.55 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 8 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 8 |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Mating Post Length | 3.7 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | KR |
| Termination Post Length | 3.2 mm |
Stock: 3686
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.24109 | $2.41090 |
| 25 | $0.23510 | $5.87750 |
| 50 | $0.22327 | $11.16350 |
| 100 | $0.21203 | $21.20300 |
| 300 | $0.20059 | $60.17700 |
| 500 | $0.18977 | $94.88500 |
| 1000 | $0.17953 | $179.53000 |
| 3000 | $0.17693 | $530.79000 |
| 5000 | $0.17437 | $871.85000 |
| 10000 | $0.17184 | $1718.40000 |
