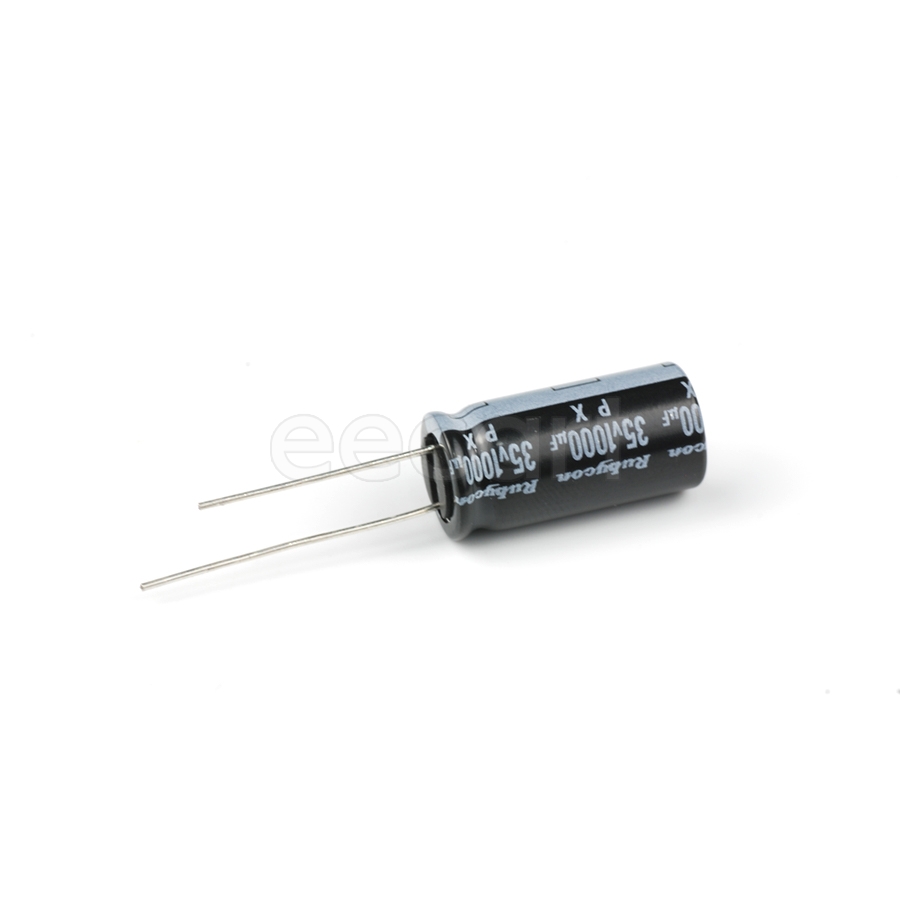

35PX1000MEFC10X20
Manufacturer:
Rubycon
Mfr.Part #:
35PX1000MEFC10X20
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial,10.00mm×20.00mm Through Hole 1 mF 20 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 1 mF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 865 mA |
| Height - Seated (Max) | 22 mm |
| Termination | Radial |
| Diameter | 10 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 20 mm |
| Voltage Rating | 35 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| REACH SVHC | Unknown |
| Ripple Current (AC) | 865 mA |
| Packaging | Bulk |
| Polarity | Polar |
| Ripple Current @ High Frequency | 1.038 A @ 10 kHz |
| Ripple Current @ Low Frequency | 865 mA @ 120 Hz |
Stock: 12681
Distributors
pcbx
pcbxUnit Price$0.27235
Ext.Price$0.27235
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.27235 | $0.27235 |
| 10 | $0.24308 | $2.43080 |
| 50 | $0.21696 | $10.84800 |
| 100 | $0.17738 | $17.73800 |
| 500 | $0.14502 | $72.51000 |
| 1000 | $0.13800 | $138.00000 |
| 3000 | $0.13132 | $393.96000 |
| 5000 | $0.12495 | $624.75000 |
