35ZLJ330M8X20
Manufacturer:
Rubycon
Mfr.Part #:
35ZLJ330M8X20
Datasheet:
Description:

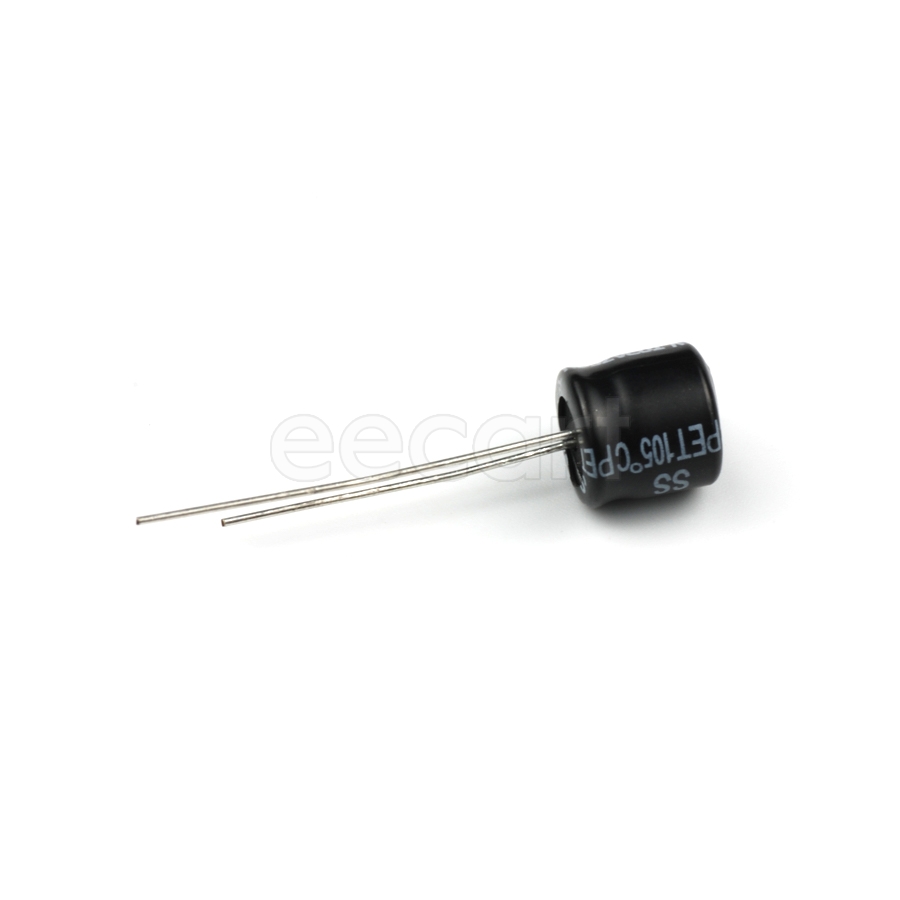

Aluminum Electrolytic Capacitors Radial,8.00mm×20.00mm Through Hole 330 µF 20 % 35 V
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 22 mm |
| Lead Free | Lead Free |
| Impedance | 41 mΩ |
| Ripple Current | 1.96 A |
| Min Operating Temperature | -40 °C |
| Diameter | 8 mm |
| Lead Pitch | 3.5 mm |
| Voltage Rating | 35 V |
| Tolerance | 20 % |
| Height | 20 mm |
| Termination | Radial |
| Capacitance | 330 µF |
| Life (Hours) | 10000 Hours |
| Voltage Rating (DC) | 35 V |
| Packaging | Bulk |
| Voltage | 35 V |
| Max Operating Temperature | 105 °C |
| Number of Pins | 2 |
| Case/Package | Radial |
| Leakage Current | 3 µA |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Dielectric Material | Aluminium |
| Lead Diameter | 600 µm |
| Ripple Current @ Low Frequency | 1.078 A @ 120 Hz |
| Mount | Through Hole |
| RoHS | Compliant |
Stock: 1576
Distributors
pcbx
pcbxUnit Price$0.45055
Ext.Price$0.45055
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45055 | $0.45055 |
| 10 | $0.21886 | $2.18860 |
| 50 | $0.20472 | $10.23600 |
| 100 | $0.19150 | $19.15000 |
| 500 | $0.15560 | $77.80000 |
| 1000 | $0.13936 | $139.36000 |
| 3000 | $0.12961 | $388.83000 |
| 5000 | $0.12054 | $602.70000 |
