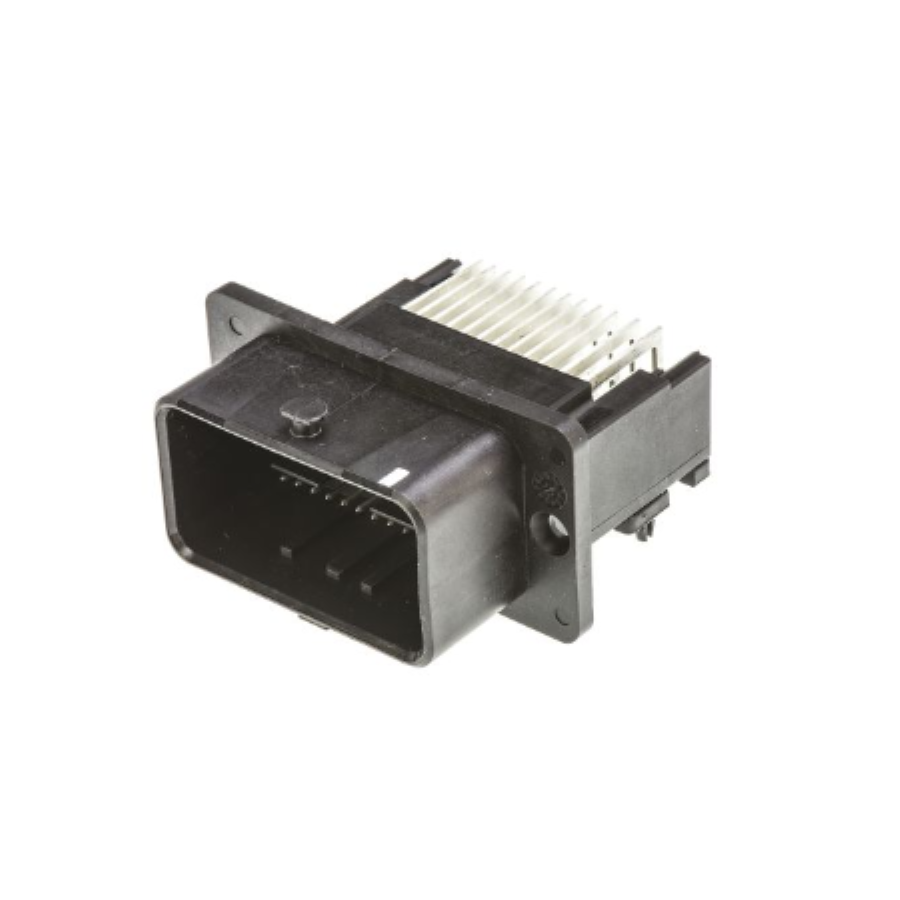

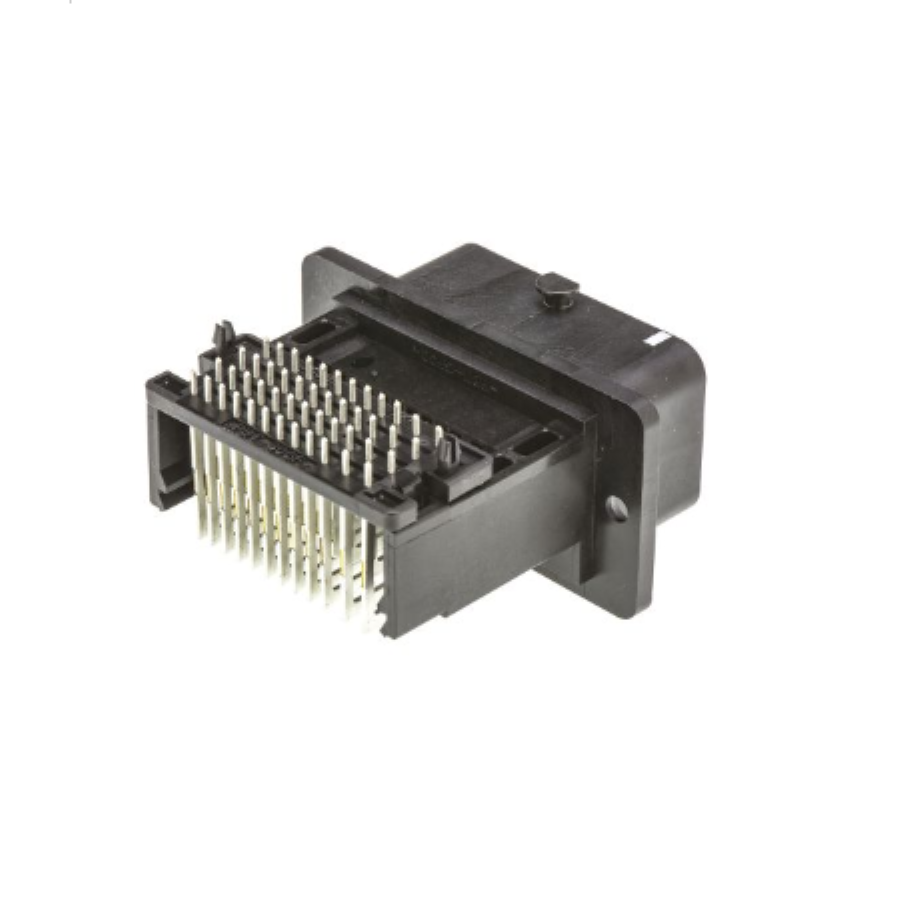

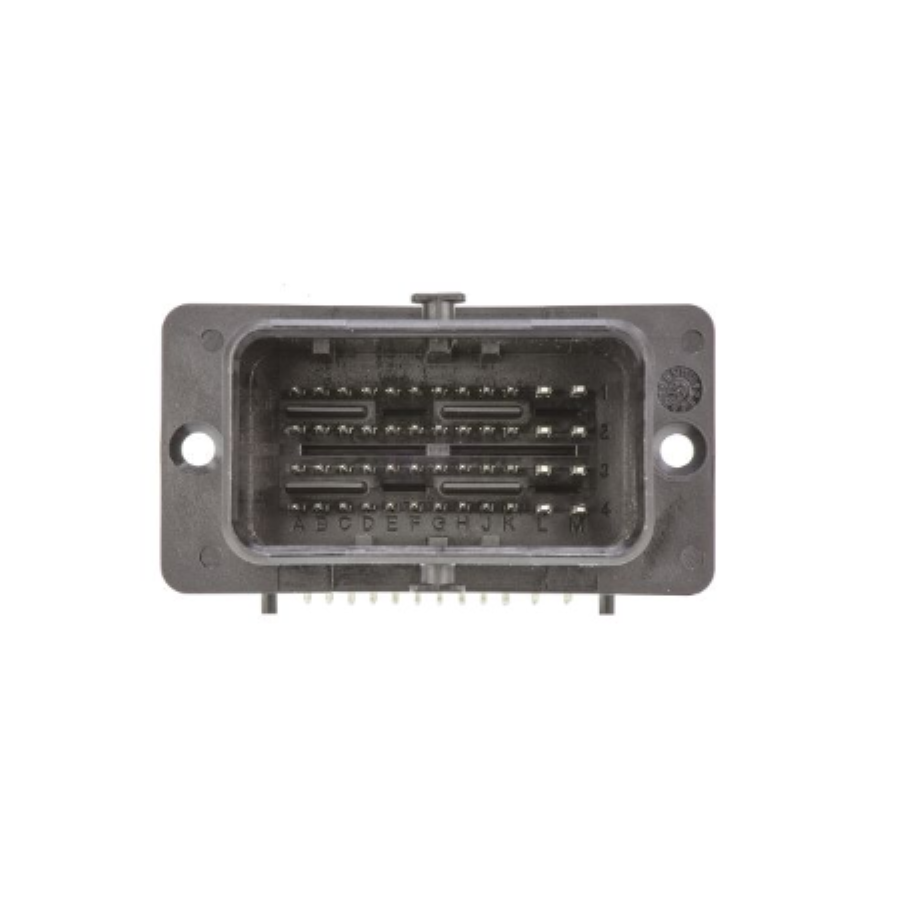

36638-0002
Manufacturer:
Molex
Mfr.Part #:
36638-0002
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:48 Pitch:3.7 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 14 V |
| Length | 58.5 mm |
| Width | 34.9 mm |
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Height | 29 mm |
| Material | Polyester |
| Packaging | Tray |
| Voltage Rating | 14 V |
| Depth | 56.5 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.7 mm |
| Current Rating | 8 A |
| Max Voltage Rating (DC) | 14 V |
| Number of Circuits | 48 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 48 |
| Connector Type | Header |
| Number of Positions | 48 |
| Number of Rows | 4 |
| Housing Material | Polyester |
| Max Voltage Rating (AC) | 250 V |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Schedule B | 8536694030 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | IN |
Stock: 554
Distributors
pcbx
pcbxUnit Price$17.06610
Ext.Price$17.06610
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $17.06610 | $17.06610 |
| 10 | $12.37853 | $123.78530 |
| 25 | $12.17928 | $304.48200 |
| 50 | $11.98323 | $599.16150 |
| 100 | $11.79033 | $1179.03300 |
| 300 | $11.39911 | $3419.73300 |
| 500 | $11.02090 | $5510.45000 |
| 1000 | $10.89523 | $10895.23000 |
