38700-6314
Manufacturer:
Molex
Mfr.Part #:
38700-6314
Datasheet:
Description:

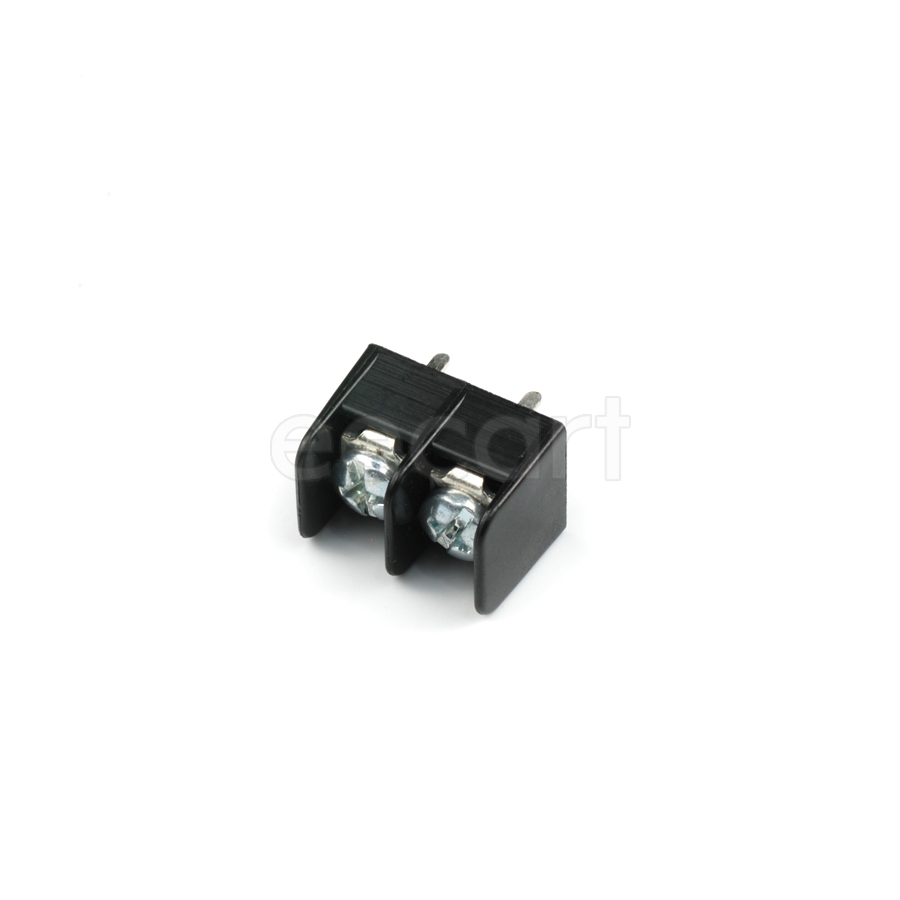

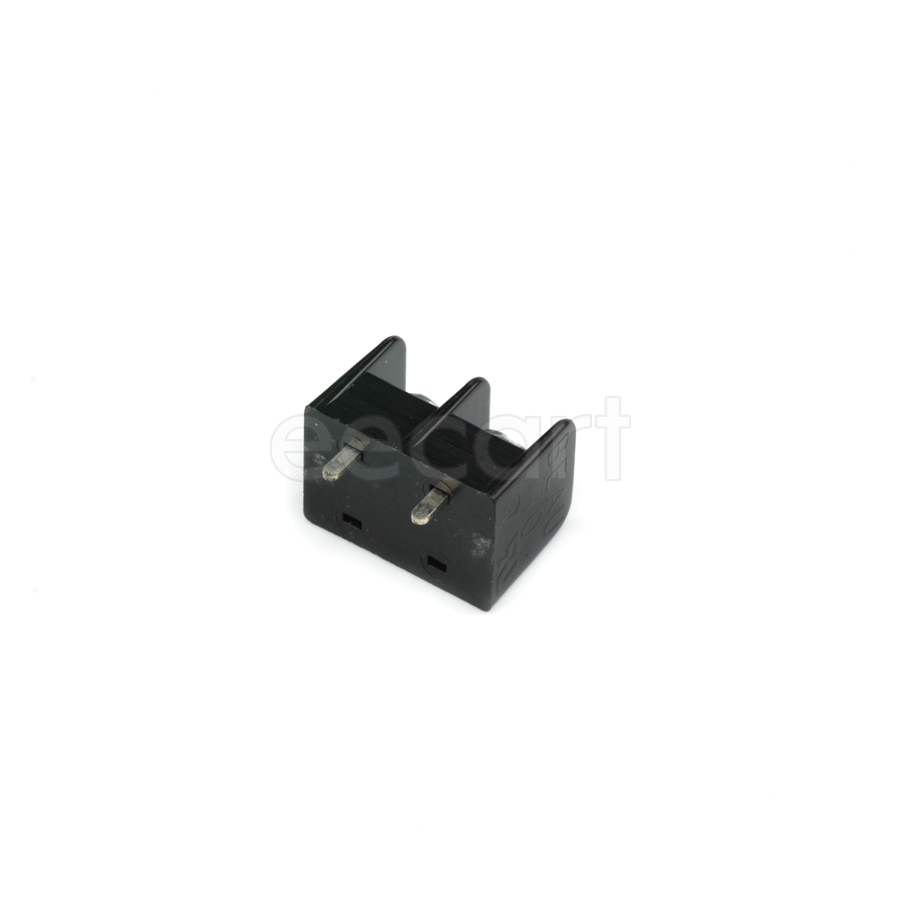

Terminal Blocks Through Hole 14 8.26 mm 15 A 300 V 22 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Length | 117.5 mm |
| Termination | Screw |
| Max Operating Temperature | 130 °C |
| Min Operating Temperature | -40 °C |
| Material | Brass, Polyester |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 12.7 mm |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Steel |
| Pitch | 8.26 mm |
| Current Rating | 15 A |
| Number of Circuits | 14 |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Max Supply Voltage | 300 V |
| Color | Black |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Insulation Material | Thermoplastic |
| Housing Material | Thermoplastic |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 14 AWG |
| Housing Color | Black |
| Plating | Tin |
| Number of Wire Entries | 14 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Connection Method | Screw |
| Wire Gauge Range | 22 AWG to 14 AWG |
Stock: 95
Distributors
pcbx
pcbxUnit Price$6.09565
Ext.Price$6.09565
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.09565 | $6.09565 |
| 10 | $4.32423 | $43.24230 |
| 25 | $3.87369 | $96.84225 |
| 50 | $3.65483 | $182.74150 |
| 100 | $3.42424 | $342.42400 |
| 300 | $3.20820 | $962.46000 |
| 500 | $3.00579 | $1502.89500 |
| 1000 | $2.81614 | $2816.14000 |
