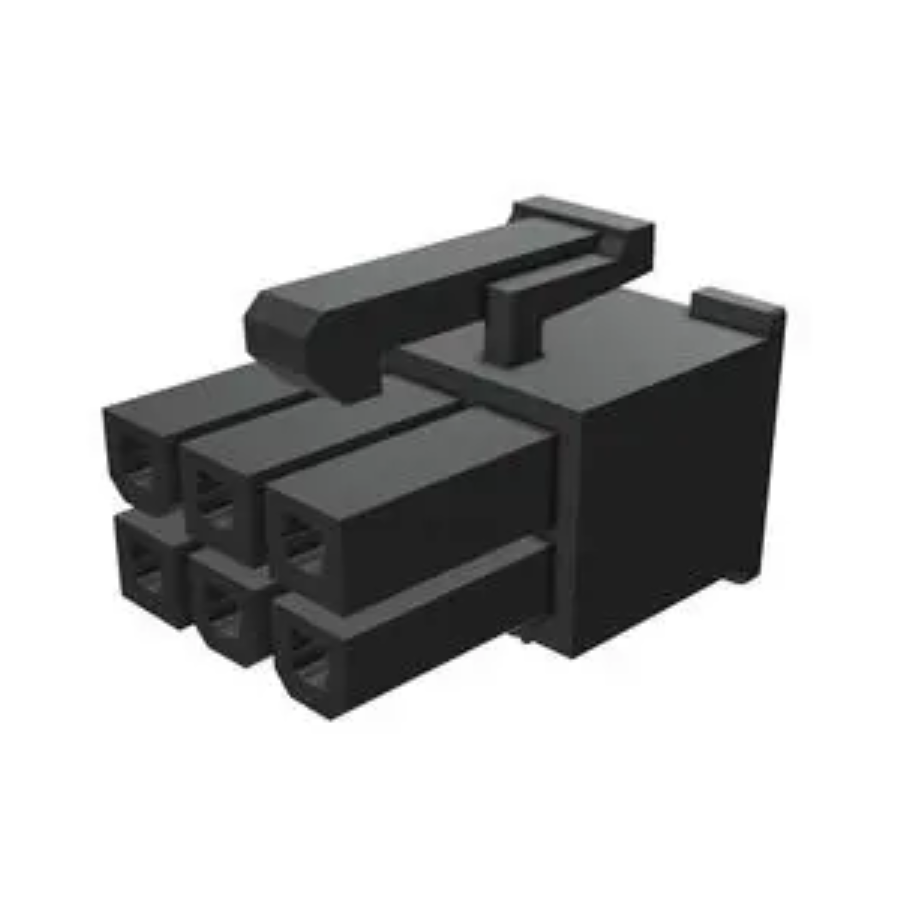

39-01-4031
Manufacturer:
Molex
Mfr.Part #:
39-01-4031
Datasheet:
Description:
Headers and Wire Housings Free Hanging Socket Number of Positions:3 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 13.8 mm |
| Width | 7.4 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 10.2 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 20.6 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Pitch | 4.2 mm |
| Current Rating | 13 A |
| Max Current Rating | 12 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 3 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Number of Lines | 1 |
| Connector Type | Socket |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Max Voltage Rating (AC) | 600 V |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 20 AWG |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Row Spacing | 4.2 mm |
Stock: 3851
Distributors
pcbx
pcbxUnit Price$0.29410
Ext.Price$0.29410
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29410 | $0.29410 |
| 10 | $0.24280 | $2.42800 |
| 25 | $0.22314 | $5.57850 |
| 50 | $0.21575 | $10.78750 |
| 100 | $0.20860 | $20.86000 |
| 300 | $0.19715 | $59.14500 |
| 500 | $0.18633 | $93.16500 |
| 1000 | $0.17611 | $176.11000 |
| 3000 | $0.17173 | $515.19000 |
| 5000 | $0.16746 | $837.30000 |
| 10000 | $0.16329 | $1632.90000 |
