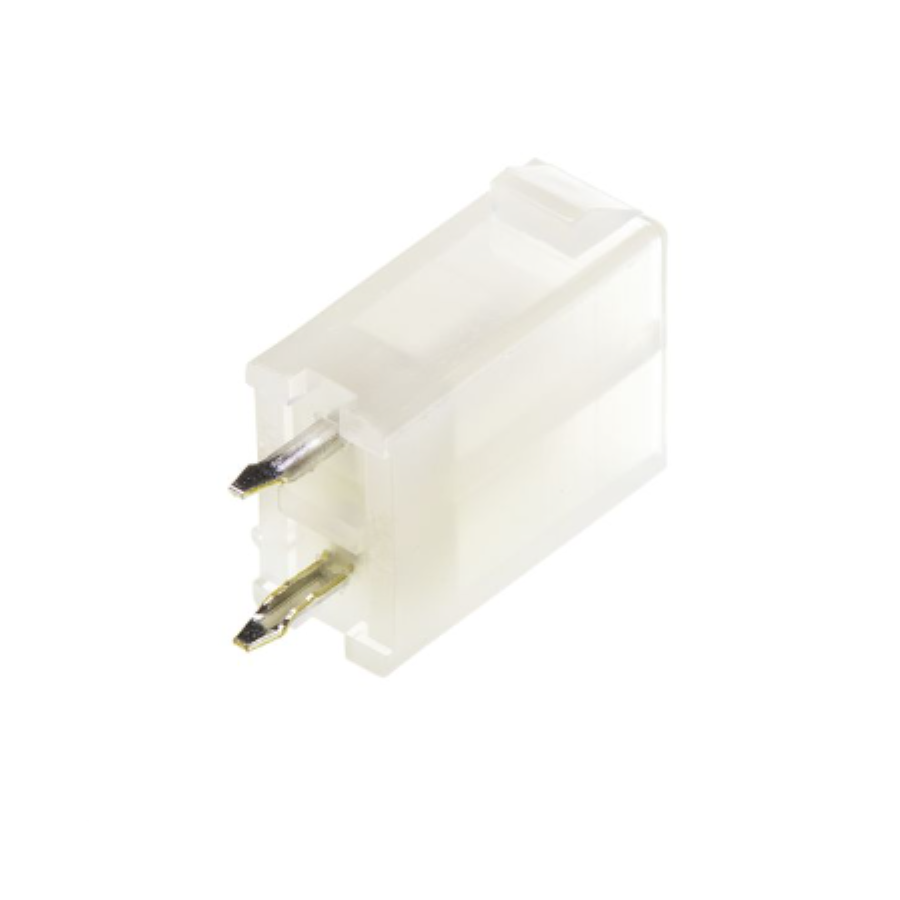

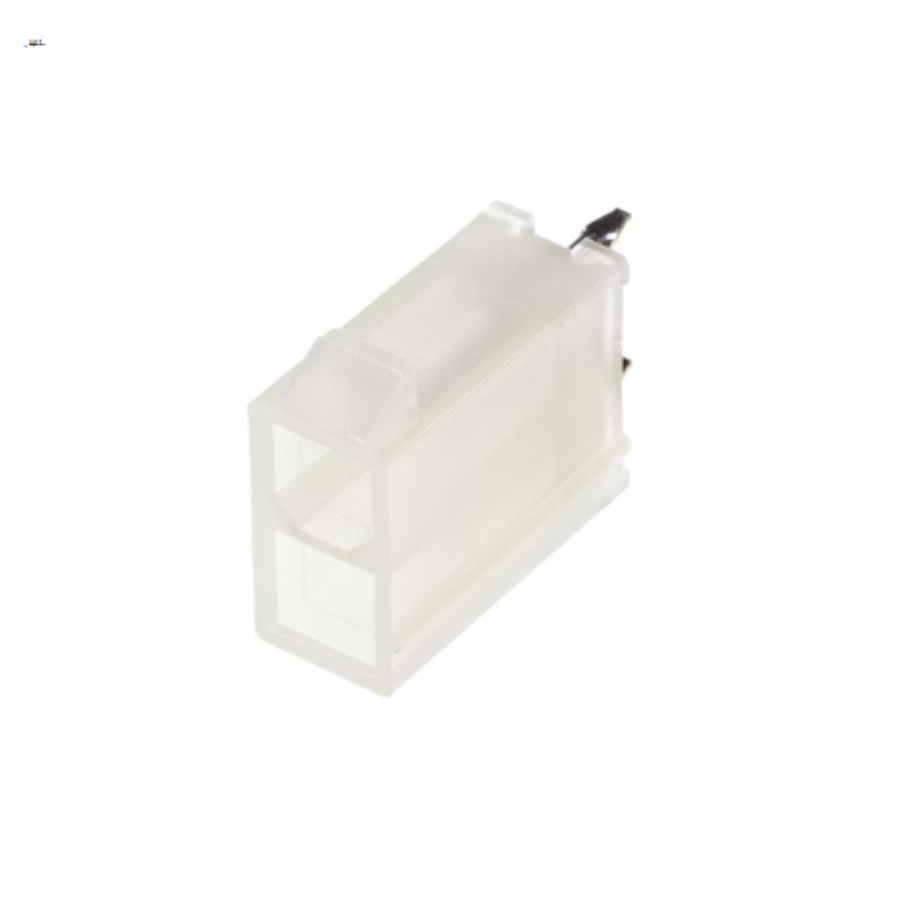

39-28-1023
Manufacturer:
Molex
Mfr.Part #:
39-28-1023
Datasheet:
Description:
Headers and Wire Housings Through Hole Power, Rectangular Number of Positions:2 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 22.32 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 2 |
| Height | 12 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 8.3 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 1 A |
| Max Current Rating | 15 A |
| Max Voltage Rating (DC) | 600.6 kV |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-2 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural, Clear |
| Gender | Male |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Connector Type | Power, Rectangular |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
Stock: 32944
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.25648 | $2.56480 |
| 25 | $0.22057 | $5.51425 |
| 50 | $0.21229 | $10.61450 |
| 100 | $0.20433 | $20.43300 |
| 300 | $0.19614 | $58.84200 |
| 500 | $0.18828 | $94.14000 |
| 1000 | $0.18074 | $180.74000 |
| 3000 | $0.17350 | $520.50000 |
| 5000 | $0.16655 | $832.75000 |
| 10000 | $0.15987 | $1598.70000 |
