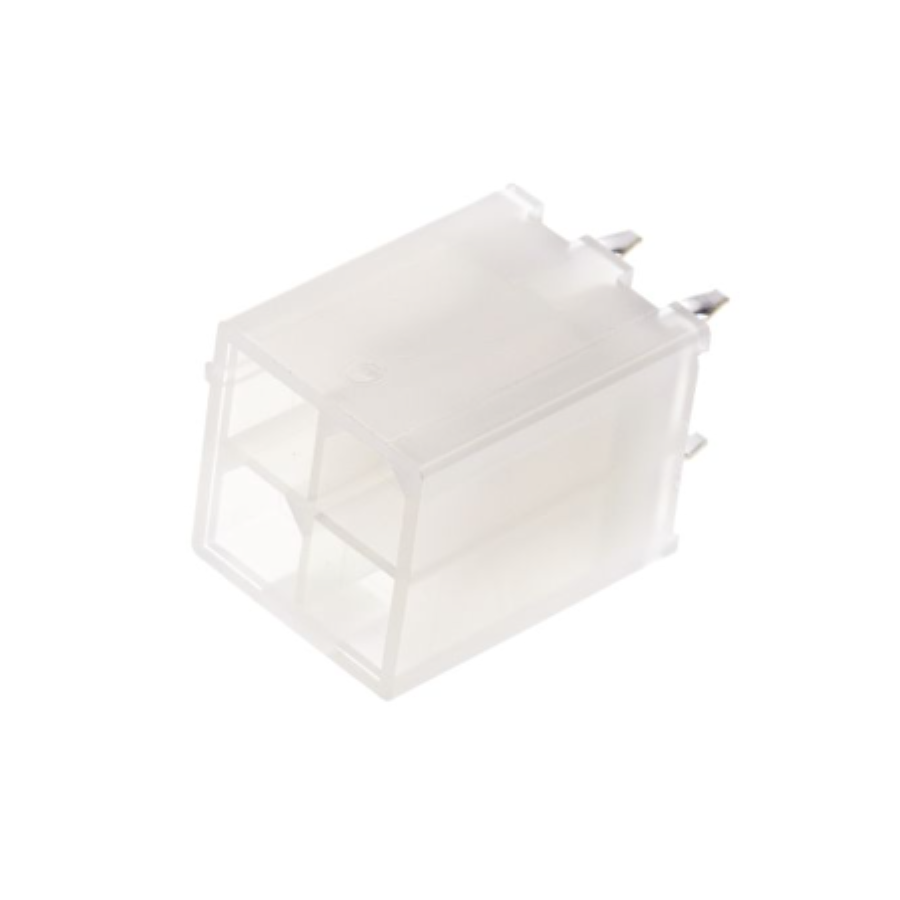

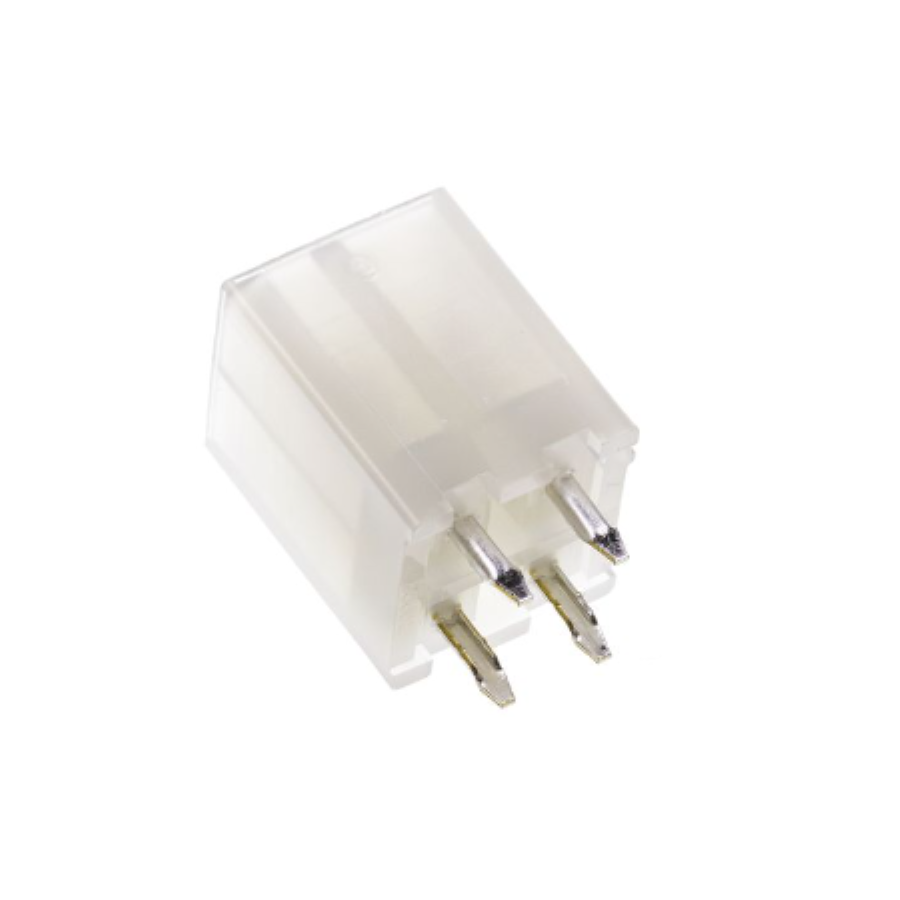

39-28-1043
Manufacturer:
Molex
Mfr.Part #:
39-28-1043
Datasheet:
Description:
Headers and Wire Housings Through Hole Power, Rectangular Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 19.66 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 13.1 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 8.5 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 9 A |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 600.6 kV |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-2 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Clear |
| Gender | Male |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Connector Type | Power, Rectangular |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 5.5 mm |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Schedule B | 8536695050|8536694040|8536694040 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
Stock: 24123
Distributors
pcbx
pcbxUnit Price$0.40694
Ext.Price$0.40694
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40694 | $0.40694 |
| 10 | $0.33343 | $3.33430 |
| 25 | $0.33000 | $8.25000 |
| 50 | $0.30605 | $15.30250 |
| 100 | $0.28384 | $28.38400 |
| 300 | $0.27866 | $83.59800 |
| 500 | $0.27357 | $136.78500 |
| 1000 | $0.25429 | $254.29000 |
| 3000 | $0.23637 | $709.11000 |
| 5000 | $0.21972 | $1098.60000 |
