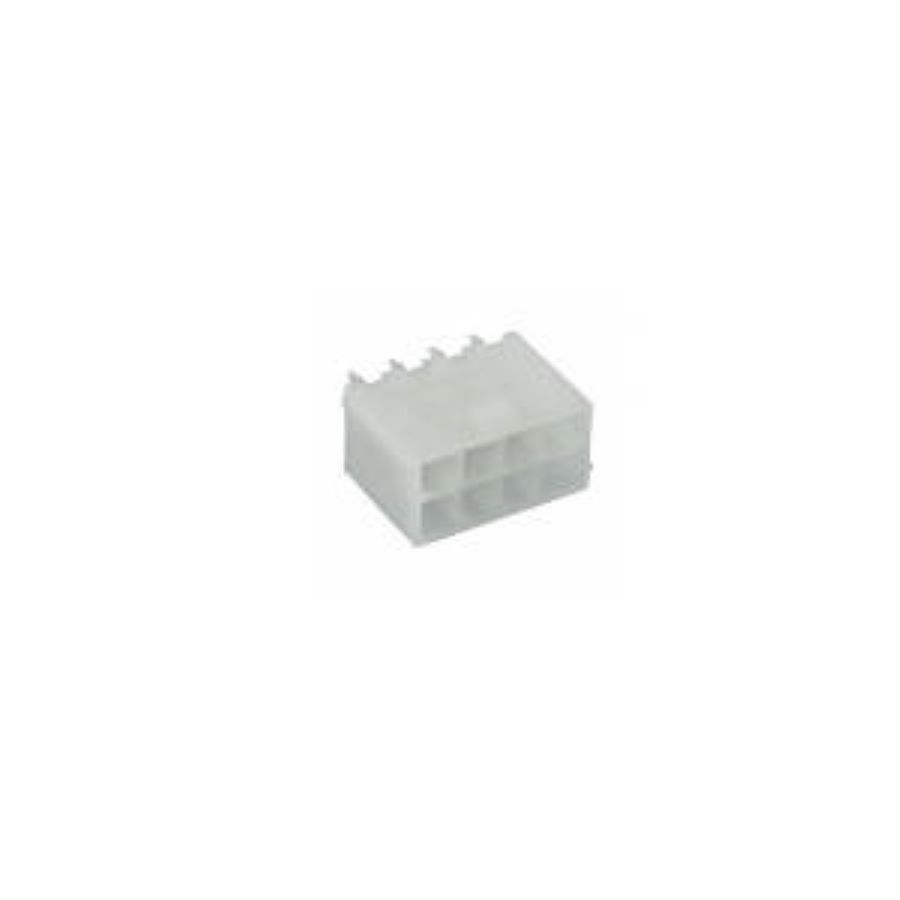

39-28-1083
Manufacturer:
Molex
Mfr.Part #:
39-28-1083
Datasheet:
Description:
Headers and Wire Housings Through Hole Power, Rectangular Number of Positions:8 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 18.4 mm |
| Width | 11 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 8 |
| Height | 6.04 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 14.18 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 8 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 600.6 kV |
| Working Voltage | 250 V |
| Flammability Rating | UL94V-2 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 8 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Clear |
| Gender | Male |
| Number of Contacts | 8 |
| Number of Poles | 8 |
| Number of Lines | 2 |
| Connector Type | Power, Rectangular |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Shape | Straight |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Test Voltage | 1.5 kV |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
Stock: 11532
Distributors
pcbx
pcbxUnit Price$0.58819
Ext.Price$0.58819
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58819 | $0.58819 |
| 10 | $0.50099 | $5.00990 |
| 25 | $0.49971 | $12.49275 |
| 50 | $0.49843 | $24.92150 |
| 100 | $0.48987 | $48.98700 |
| 300 | $0.39583 | $118.74900 |
