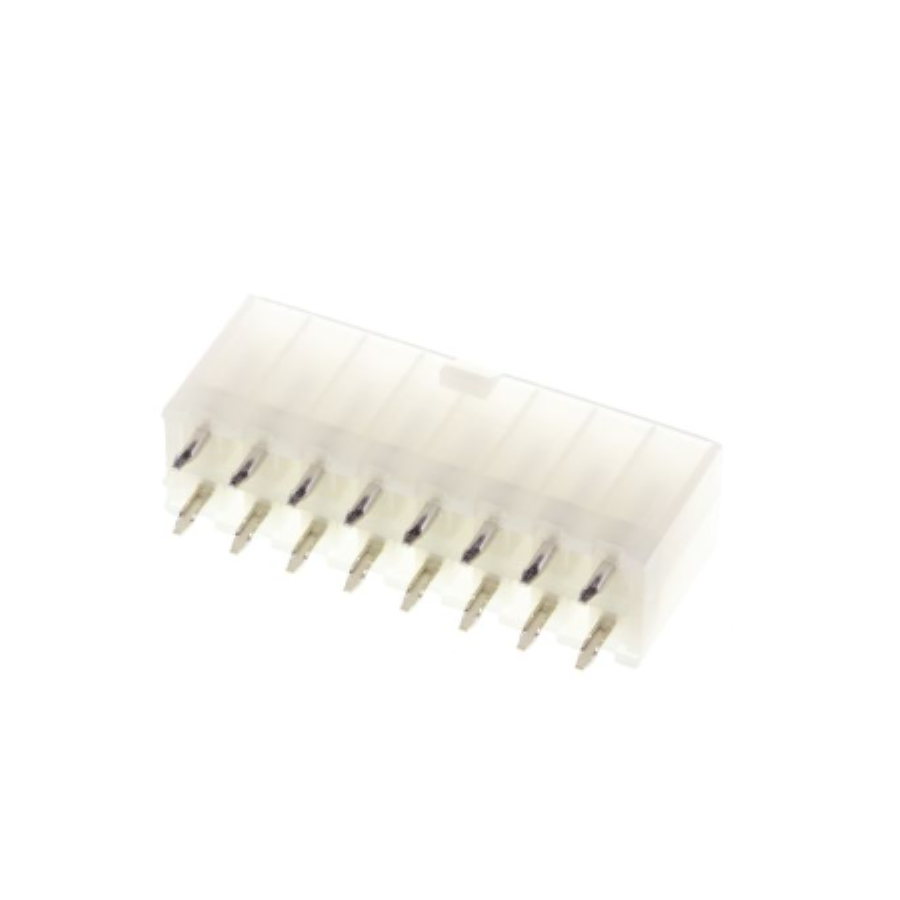

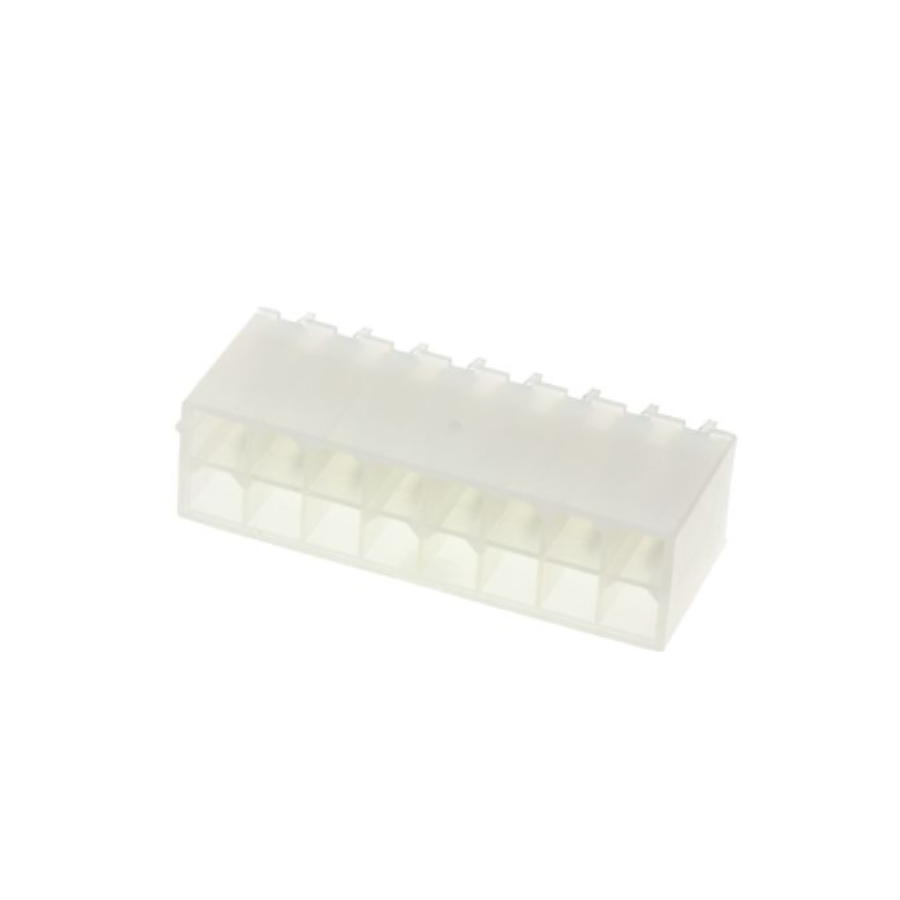

39-28-1163
Manufacturer:
Molex
Mfr.Part #:
39-28-1163
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:16 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 34.8 mm |
| Width | 9.6 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 16 |
| Height | 8.13 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 4.88 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 6 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 600.6 kV |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 16 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 16 |
| Number of Poles | 16 |
| Connector Type | Header |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
Stock: 1436
Distributors
pcbx
pcbxUnit Price$1.05755
Ext.Price$1.05755
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.05755 | $1.05755 |
| 10 | $0.95154 | $9.51540 |
| 25 | $0.89139 | $22.28475 |
| 50 | $0.83504 | $41.75200 |
| 100 | $0.78226 | $78.22600 |
| 300 | $0.77627 | $232.88100 |
| 500 | $0.76682 | $383.41000 |
| 1000 | $0.75747 | $757.47000 |
