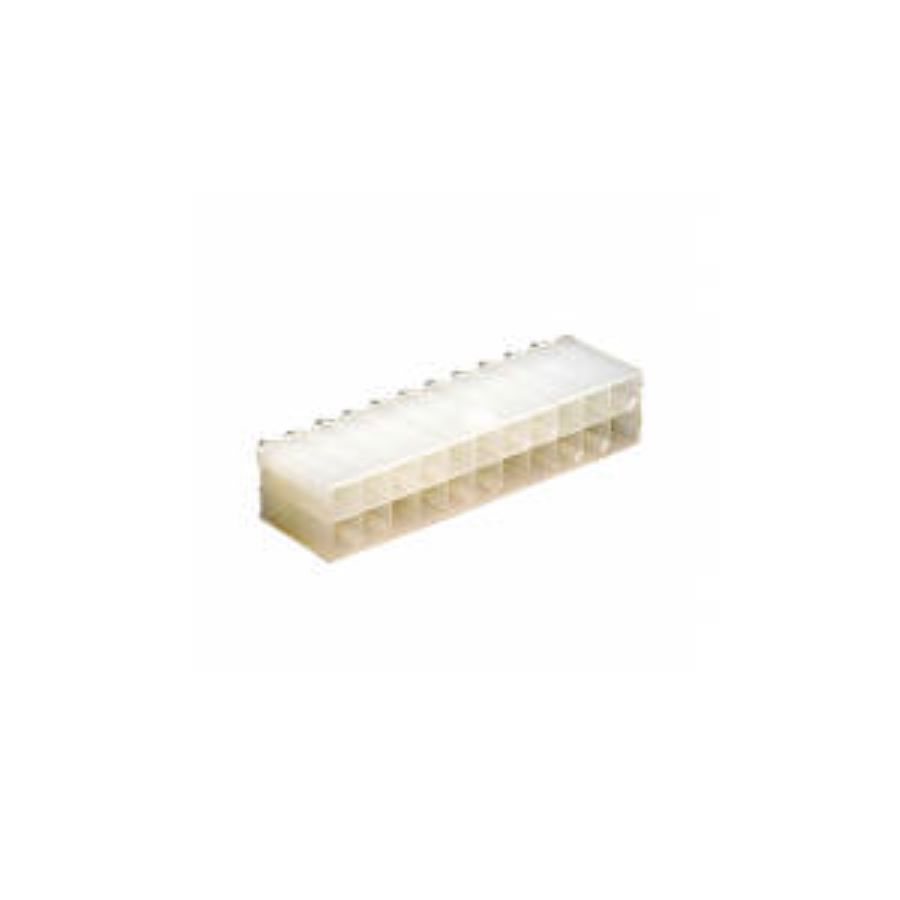

39-28-1223
Manufacturer:
Molex
Mfr.Part #:
39-28-1223
Datasheet:
Description:
Headers and Wire Housings Through Hole Power, Rectangular Number of Positions:22 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Lead Length | 3.5 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 6 A |
| Max Voltage Rating (DC) | 600.6 kV |
| Working Voltage | 600 V |
| Flammability Rating | UL94V-2 |
| Number of Circuits | 22 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Male |
| Number of Contacts | 22 |
| Number of Poles | 22 |
| Connector Type | Power, Rectangular |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | PR |
| Termination Post Length | 3.5 mm |
Stock: 392
Distributors
pcbx
pcbxUnit Price$1.90906
Ext.Price$1.90906
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.90906 | $1.90906 |
| 10 | $1.73380 | $17.33800 |
| 25 | $1.66667 | $41.66675 |
| 50 | $1.60214 | $80.10700 |
| 100 | $1.52690 | $152.69000 |
| 300 | $1.40630 | $421.89000 |
| 500 | $1.29522 | $647.61000 |
| 1000 | $1.11397 | $1113.97000 |
