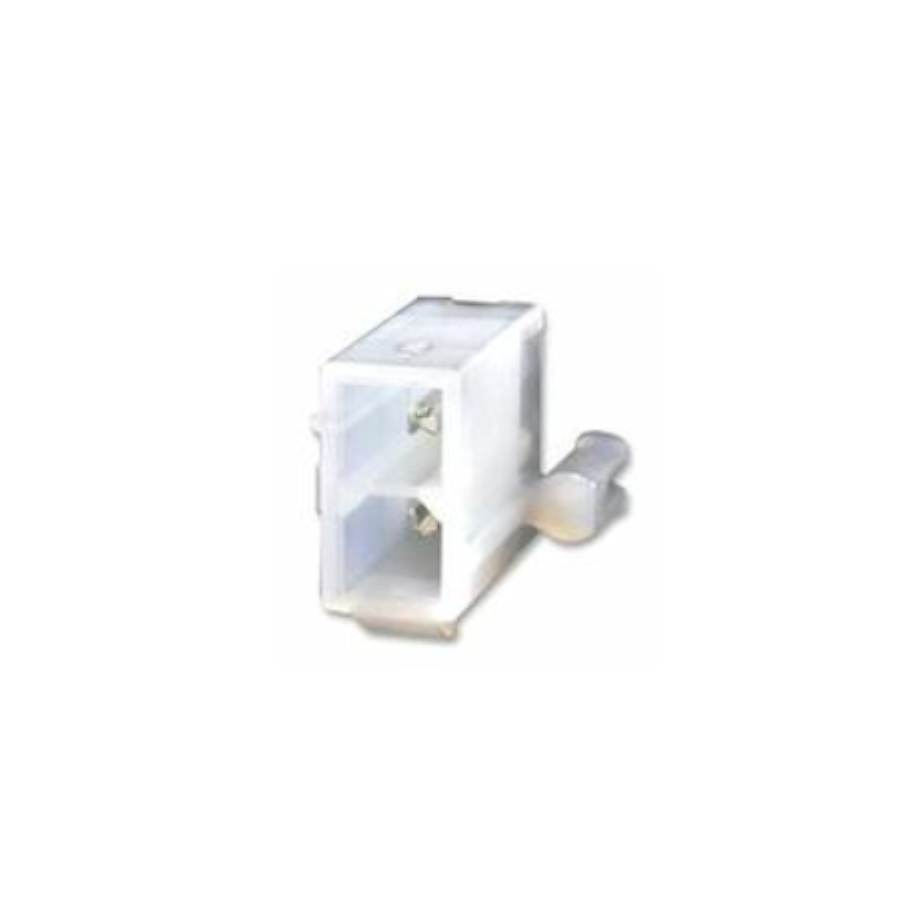

39-29-9023
Manufacturer:
Molex
Mfr.Part #:
39-29-9023
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Packaging | Tray |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 9 A |
| Max Voltage Rating (DC) | 600 V |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 4.191 mm |
| Housing Material | Nylon |
| Fastening Type | Ramp |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Natural |
| Plating | Tin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
Stock: 6449
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.24879 | $2.48790 |
| 25 | $0.23254 | $5.81350 |
| 50 | $0.22692 | $11.34600 |
| 100 | $0.22143 | $22.14300 |
| 300 | $0.20973 | $62.91900 |
| 500 | $0.19865 | $99.32500 |
| 1000 | $0.18815 | $188.15000 |
| 3000 | $0.17821 | $534.63000 |
| 5000 | $0.16879 | $843.95000 |
| 10000 | $0.15987 | $1598.70000 |
