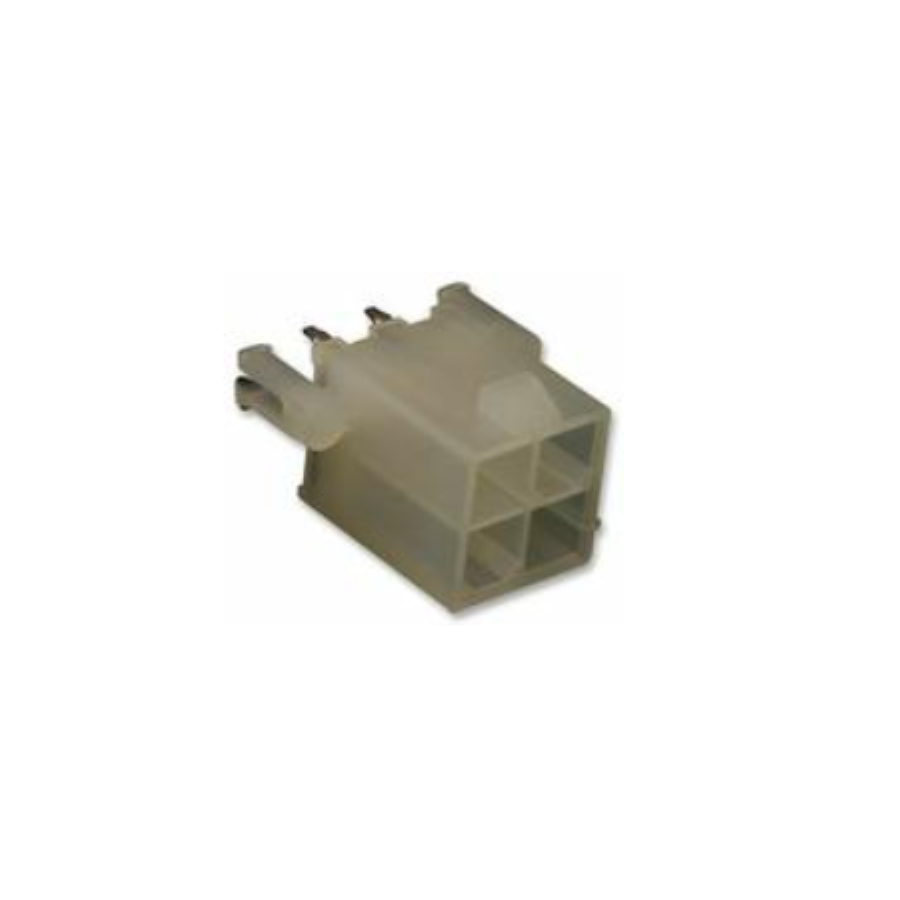

39-29-9045
Manufacturer:
Molex
Mfr.Part #:
39-29-9045
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 28.65 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 9.91 mm |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Depth | 8.77 mm |
| Halogen Free | Low Halogen |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 8 A |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 600.6 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
Stock: 2346
Distributors
pcbx
pcbxUnit Price$0.62581
Ext.Price$0.62581
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.62581 | $0.62581 |
| 10 | $0.62496 | $6.24960 |
