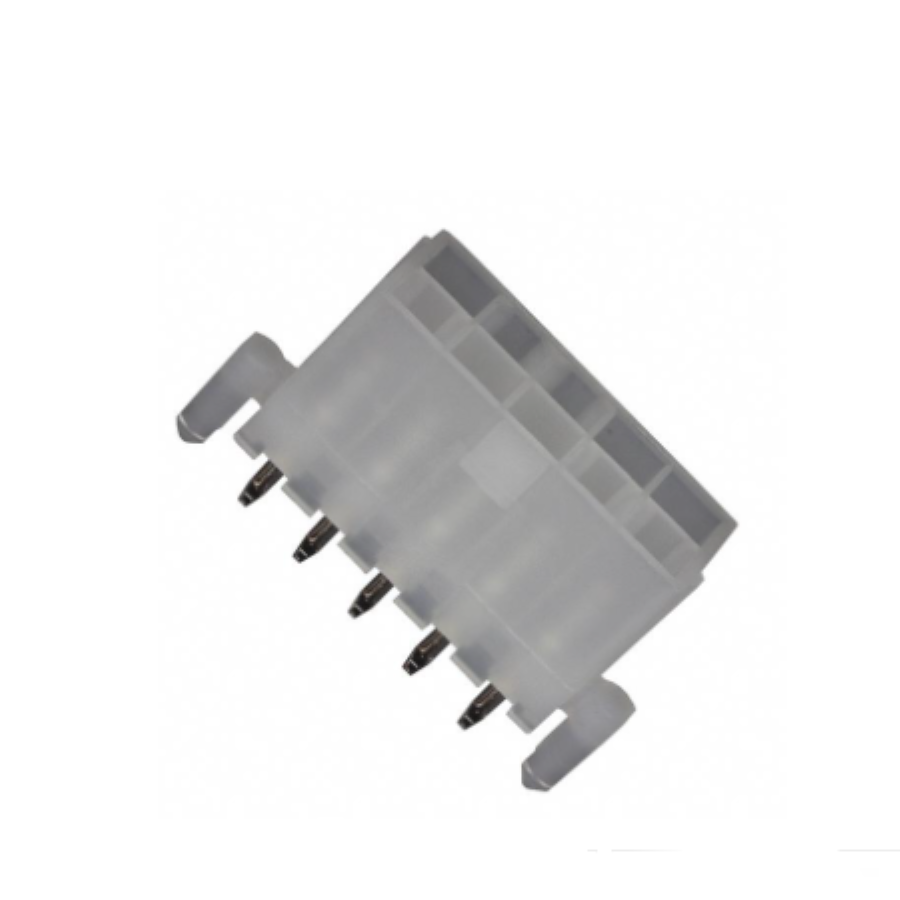

39-29-9103
Manufacturer:
Molex
Mfr.Part #:
39-29-9103
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 22.2 mm |
| Width | 9.6 mm |
| Termination | Solder |
| Diameter | 4.2 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 7 A |
| Max Current Rating | 7 A |
| Max Voltage Rating (DC) | 600.6 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 10 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 4.191 mm |
| Housing Material | Nylon |
| Fastening Type | Ramp |
| Contact Resistance | 10 mΩ |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
Stock: 5566
Distributors
pcbx
pcbxUnit Price$0.78824
Ext.Price$0.78824
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78824 | $0.78824 |
| 10 | $0.58220 | $5.82200 |
| 25 | $0.57366 | $14.34150 |
| 50 | $0.53352 | $26.67600 |
| 100 | $0.49619 | $49.61900 |
| 300 | $0.46147 | $138.44100 |
| 500 | $0.42917 | $214.58500 |
