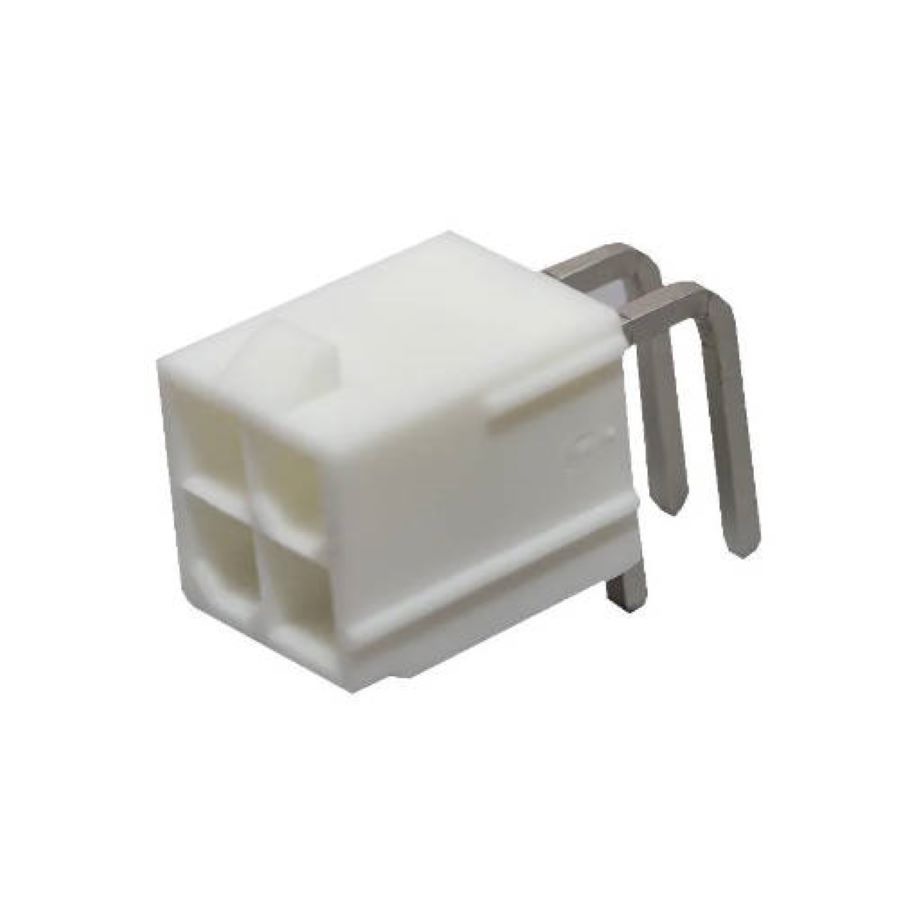

39-30-0040
Manufacturer:
Molex
Mfr.Part #:
39-30-0040
Datasheet:
Description:
Headers and Wire Housings Through Hole Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 9.6 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 4 |
| Height | 11.4 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 19.4 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Gold |
| Pitch | 4.2 mm |
| Current Rating | 9 A |
| Max Current Rating | 8 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 4 |
| ELV | Compliant |
| Number of Poles | 4 |
| Number of Lines | 2 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Test Voltage | 1.5 kV |
| Schedule B | 8536695050|8536694040|8536694040 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
