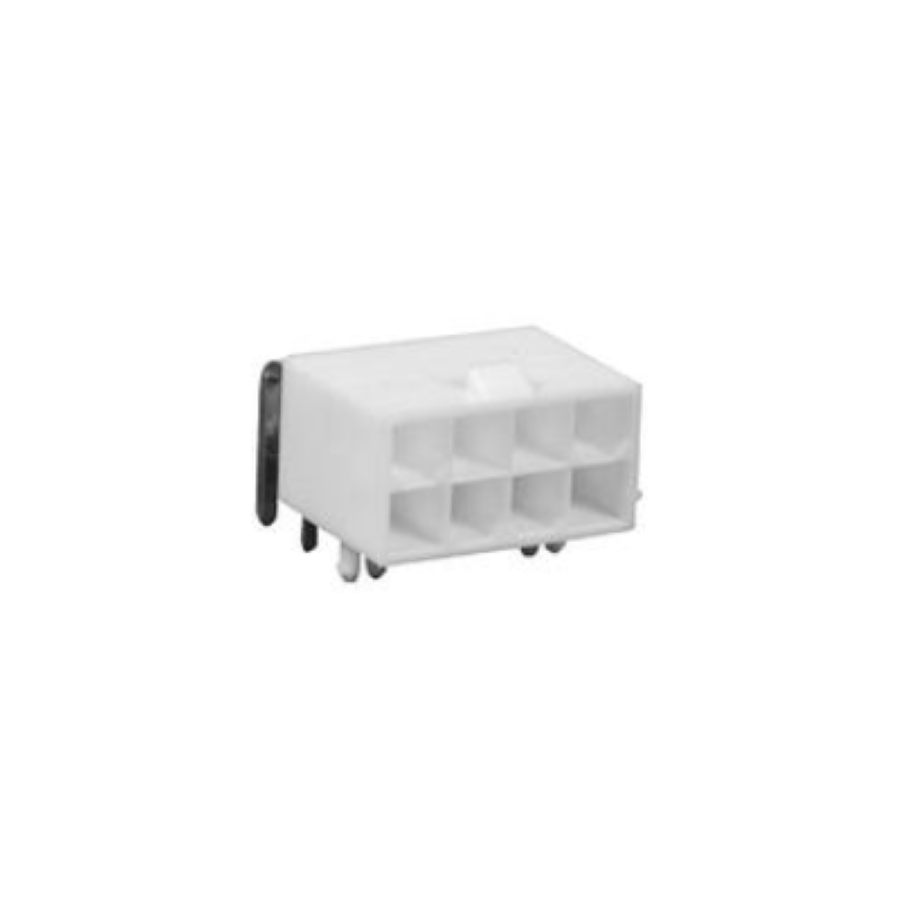

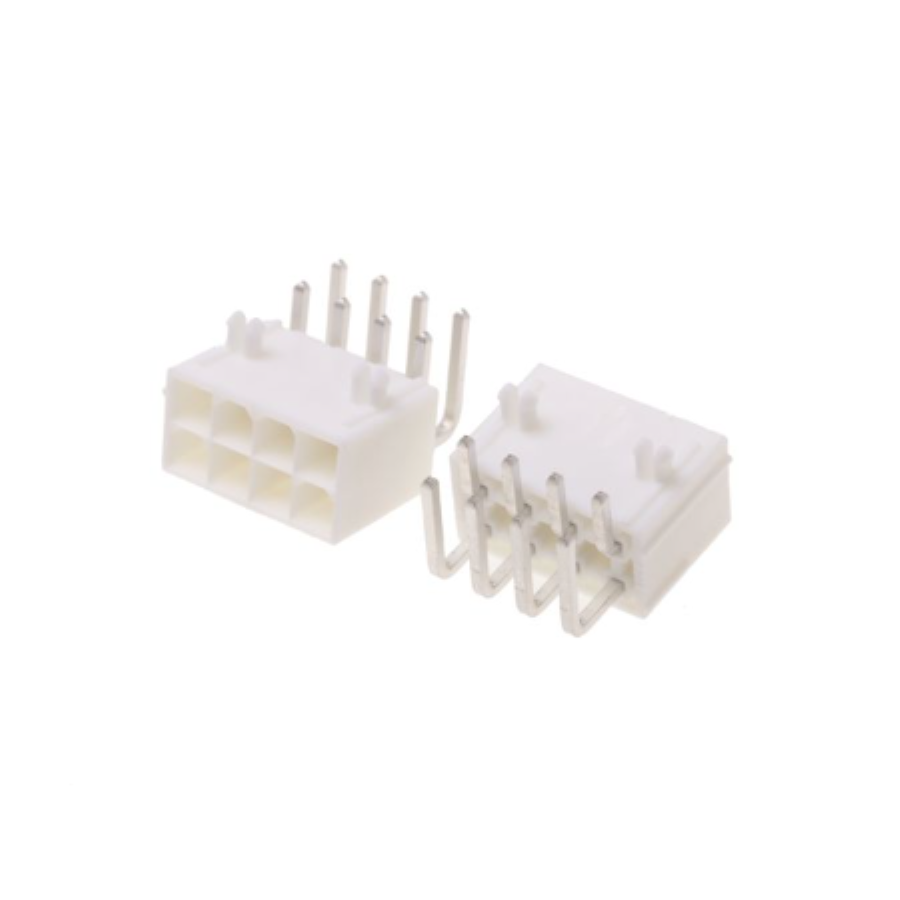

39-30-0080
Manufacturer:
Molex
Mfr.Part #:
39-30-0080
Datasheet:
Description:
Headers and Wire Housings Through Hole Power Number of Positions:8 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 18 mm |
| Width | 11.4 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Height | 11.4 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 19.4 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Number of Terminals | 8 |
| Current Rating | 7 A |
| Max Current Rating | 7 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 8 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 8 |
| ELV | Compliant |
| Connector Type | Power |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 5.5 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 1843
Distributors
pcbx
pcbxUnit Price$0.59417
Ext.Price$0.59417
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.59417 | $0.59417 |
| 10 | $0.53775 | $5.37750 |
| 25 | $0.53262 | $13.31550 |
| 50 | $0.52578 | $26.28900 |
| 100 | $0.52493 | $52.49300 |
