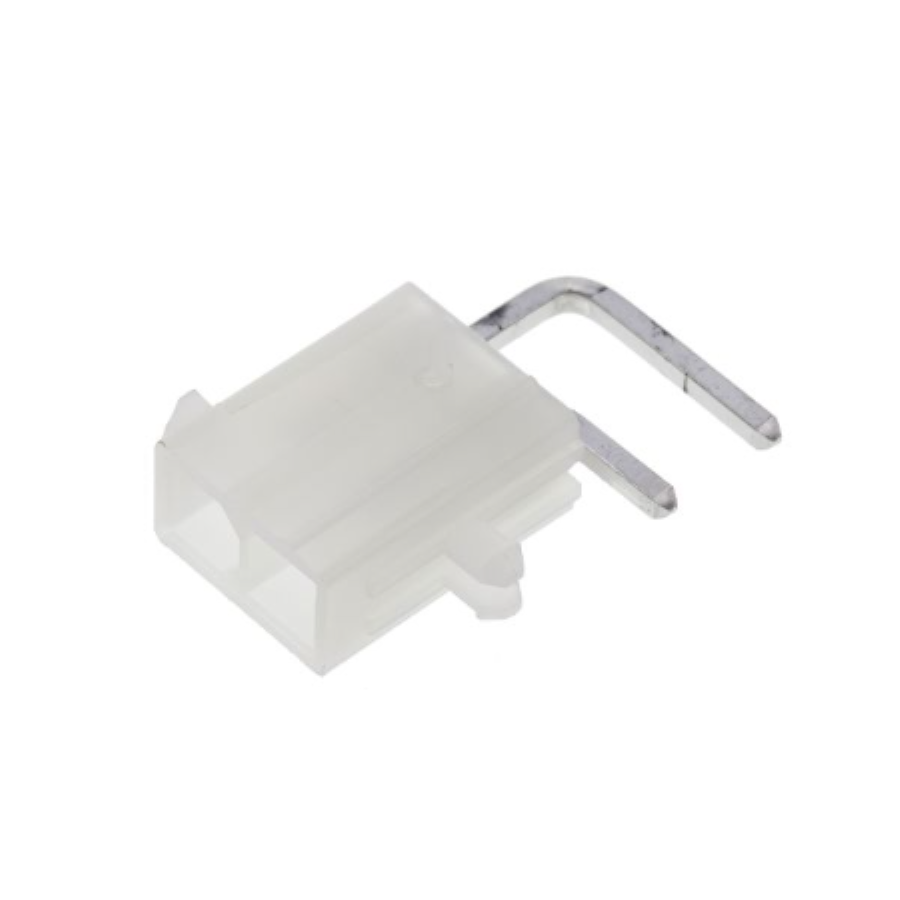

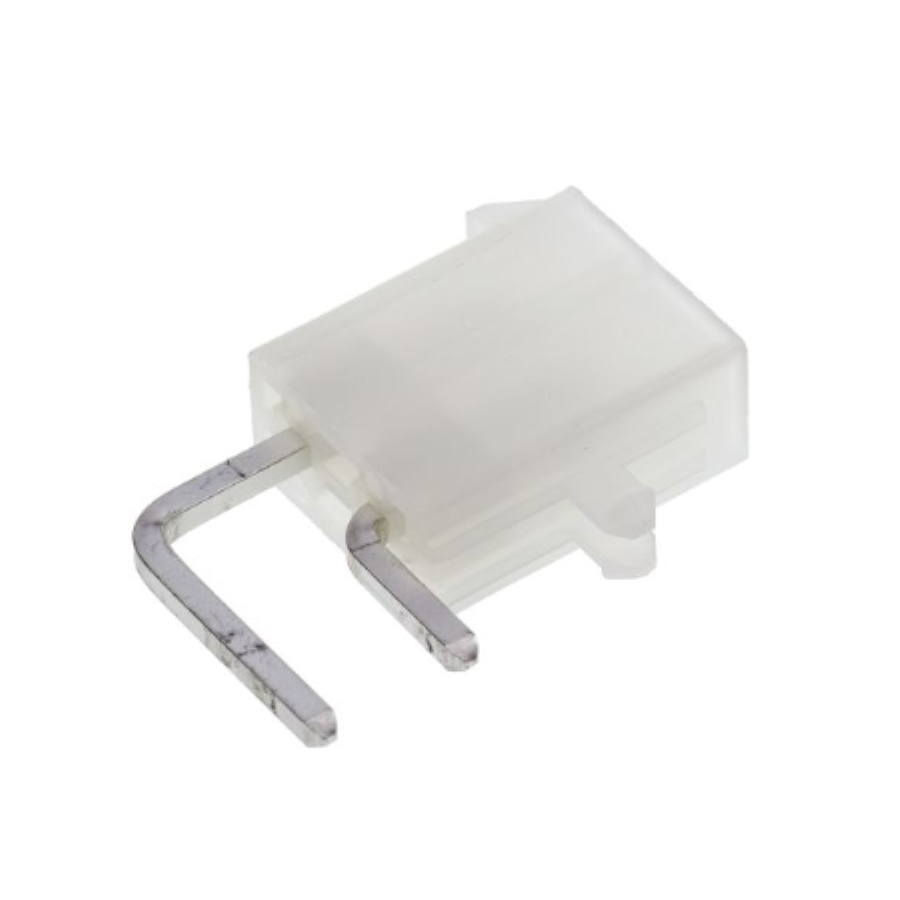

39-30-1020
Manufacturer:
Molex
Mfr.Part #:
39-30-1020
Datasheet:
Description:
Headers and Wire Housings Through Hole Power, Rectangular Number of Positions:2 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 36.07 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 2 |
| Height | 14.76 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 13.38 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 9 A |
| Working Voltage | 600 V |
| Flammability Rating | UL94 V-2 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 2 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| ELV | Compliant |
| Number of Poles | 2 |
| Connector Type | Power, Rectangular |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 23598
Distributors
pcbx
pcbxUnit Price$0.36334
Ext.Price$0.36334
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36334 | $0.36334 |
| 10 | $0.30863 | $3.08630 |
| 25 | $0.26503 | $6.62575 |
| 50 | $0.25545 | $12.77250 |
| 100 | $0.24622 | $24.62200 |
| 300 | $0.22126 | $66.37800 |
| 500 | $0.19883 | $99.41500 |
| 1000 | $0.17868 | $178.68000 |
| 3000 | $0.17695 | $530.85000 |
| 5000 | $0.17524 | $876.20000 |
| 10000 | $0.17355 | $1735.50000 |
