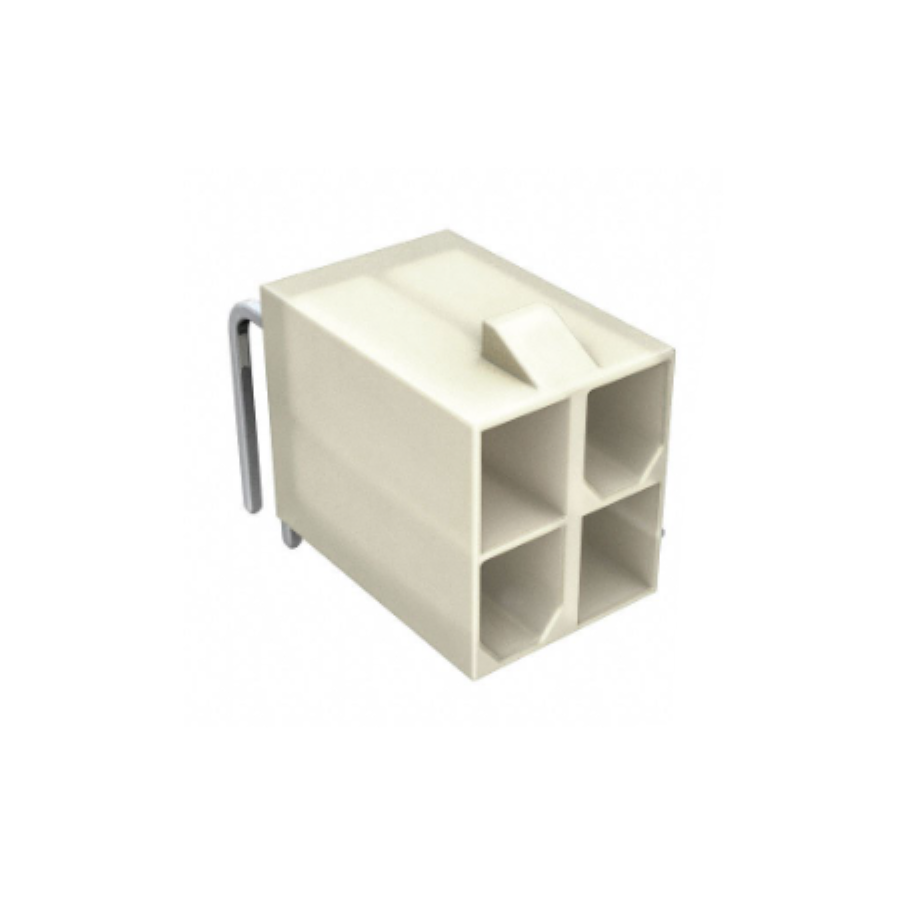

39-30-1040
Manufacturer:
Molex
Mfr.Part #:
39-30-1040
Datasheet:
Description:
Headers and Wire Housings Through Hole Power, Rectangular Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 21.08 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 5 |
| Height | 13.38 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 19.79 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 9 A |
| Working Voltage | 600 V |
| Flammability Rating | UL94 V-2 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 4 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 4 |
| ELV | Compliant |
| Number of Poles | 4 |
| Connector Type | Power, Rectangular |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 20537
Distributors
pcbx
pcbxUnit Price$0.35650
Ext.Price$0.35650
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35650 | $0.35650 |
| 10 | $0.29923 | $2.99230 |
| 25 | $0.25819 | $6.45475 |
| 50 | $0.25798 | $12.89900 |
| 100 | $0.25777 | $25.77700 |
| 300 | $0.25756 | $77.26800 |
| 500 | $0.25733 | $128.66500 |
