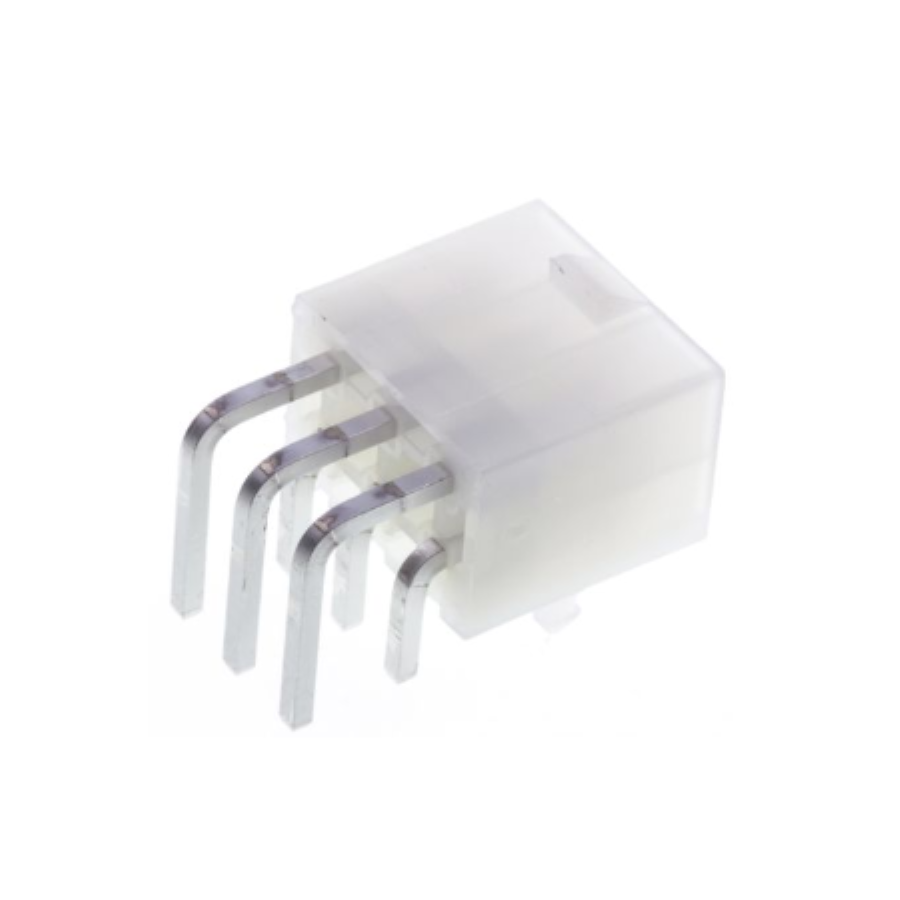

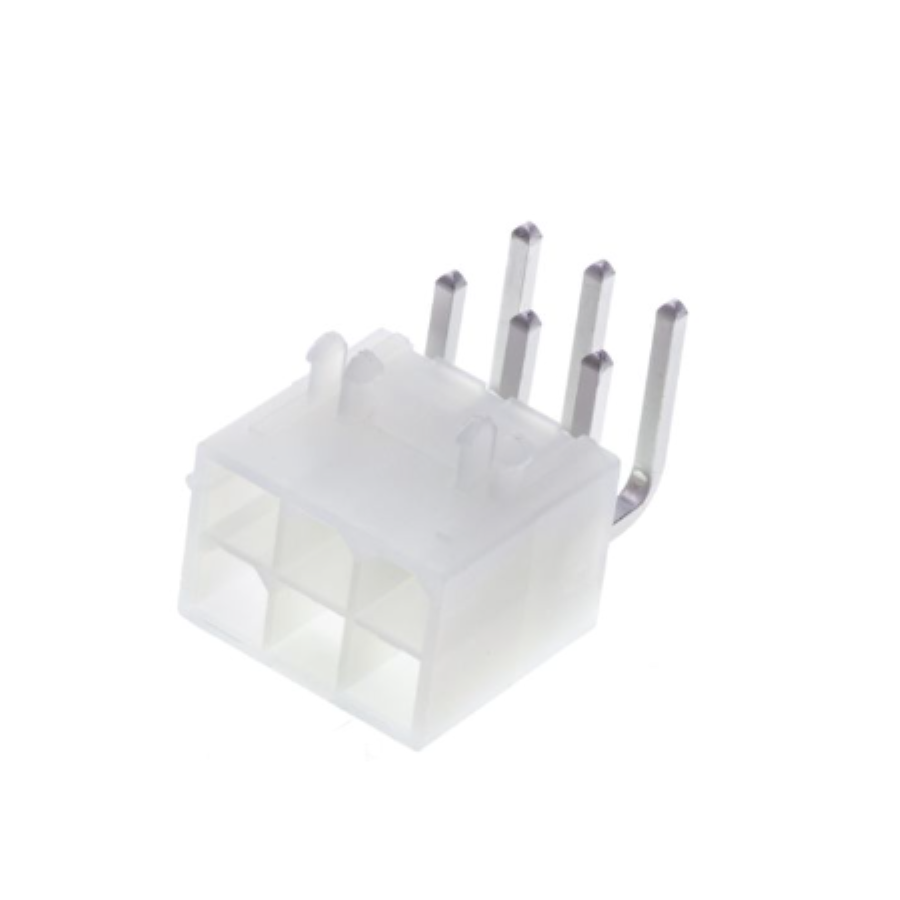

39-30-1060
Manufacturer:
Molex
Mfr.Part #:
39-30-1060
Datasheet:
Description:
Headers and Wire Housings Through Hole Power, Rectangular Number of Positions:6 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 13.8 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 5 |
| Height | 10 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 12.8 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 8 A |
| Max Current Rating | 8 A |
| Working Voltage | 600 V |
| Flammability Rating | UL94 V-2 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 6 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 6 |
| ELV | Compliant |
| Number of Poles | 6 |
| Number of Lines | 2 |
| Connector Type | Power, Rectangular |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 5.5 mm |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Test Voltage | 1.5 kV |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 2517
Distributors
pcbx
pcbxUnit Price$0.51980
Ext.Price$0.51980
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51980 | $0.51980 |
| 10 | $0.40096 | $4.00960 |
| 25 | $0.39583 | $9.89575 |
| 50 | $0.39241 | $19.62050 |
| 100 | $0.32402 | $32.40200 |
| 300 | $0.32146 | $96.43800 |
| 500 | $0.32103 | $160.51500 |
| 1000 | $0.32060 | $320.60000 |
