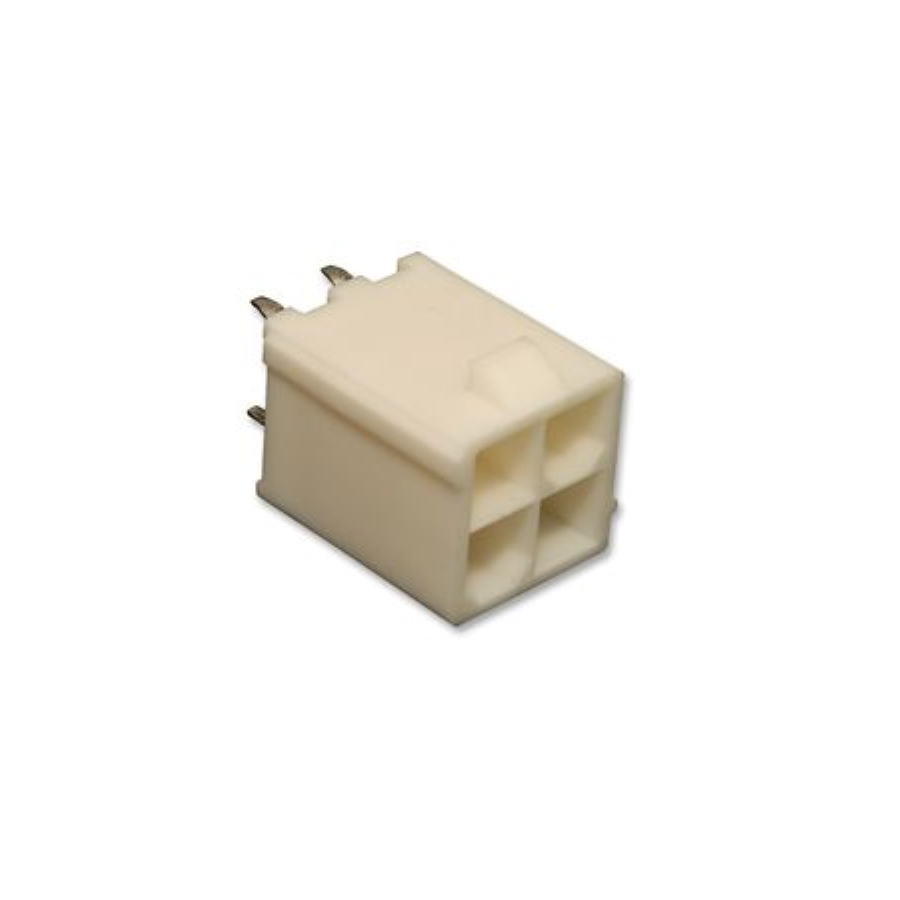

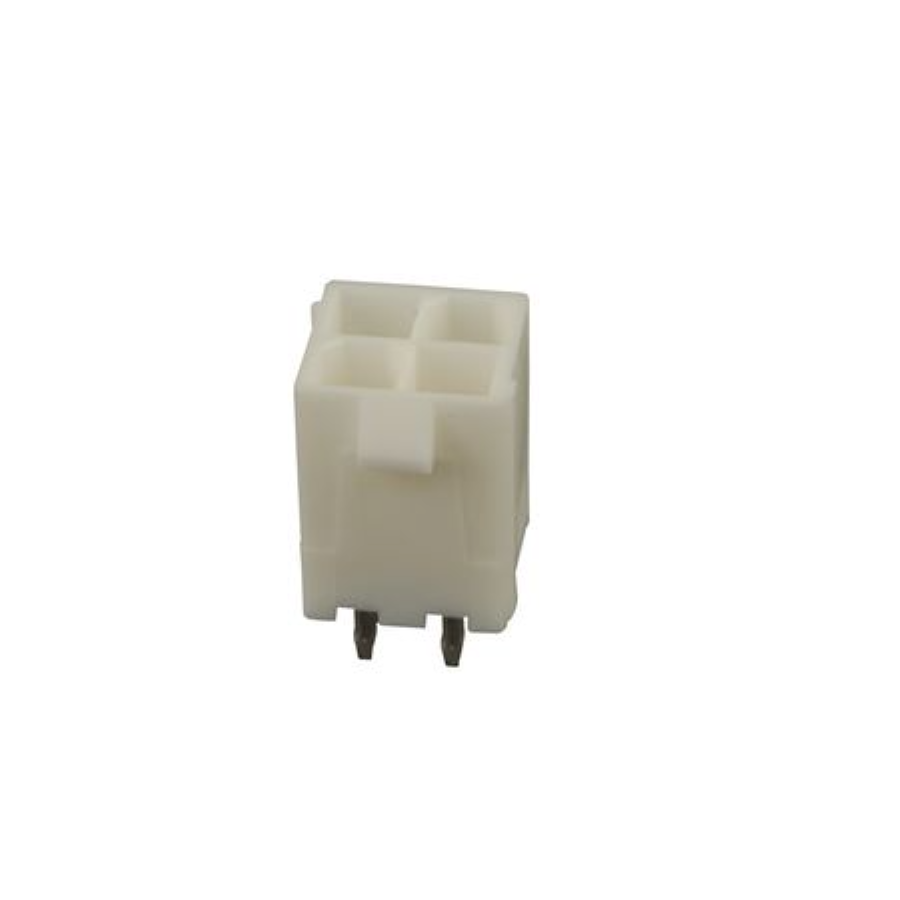

39-31-0048
Manufacturer:
Molex
Mfr.Part #:
39-31-0048
Datasheet:
Description:
Headers and Wire Housings Through Hole Power Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 33.82 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 21 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 14.1 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 8 A |
| Max Voltage Rating (DC) | 600.6 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Power |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Contact Resistance | 1.5 mΩ |
| Housing Color | Black |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
Stock: 1284
Distributors
pcbx
pcbxUnit Price$1.10115
Ext.Price$1.10115
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.10115 | $1.10115 |
| 10 | $0.99514 | $9.95140 |
| 25 | $0.97034 | $24.25850 |
| 50 | $0.92589 | $46.29450 |
| 100 | $0.85151 | $85.15100 |
| 300 | $0.82591 | $247.77300 |
| 500 | $0.80107 | $400.53500 |
| 1000 | $0.66343 | $663.43000 |
