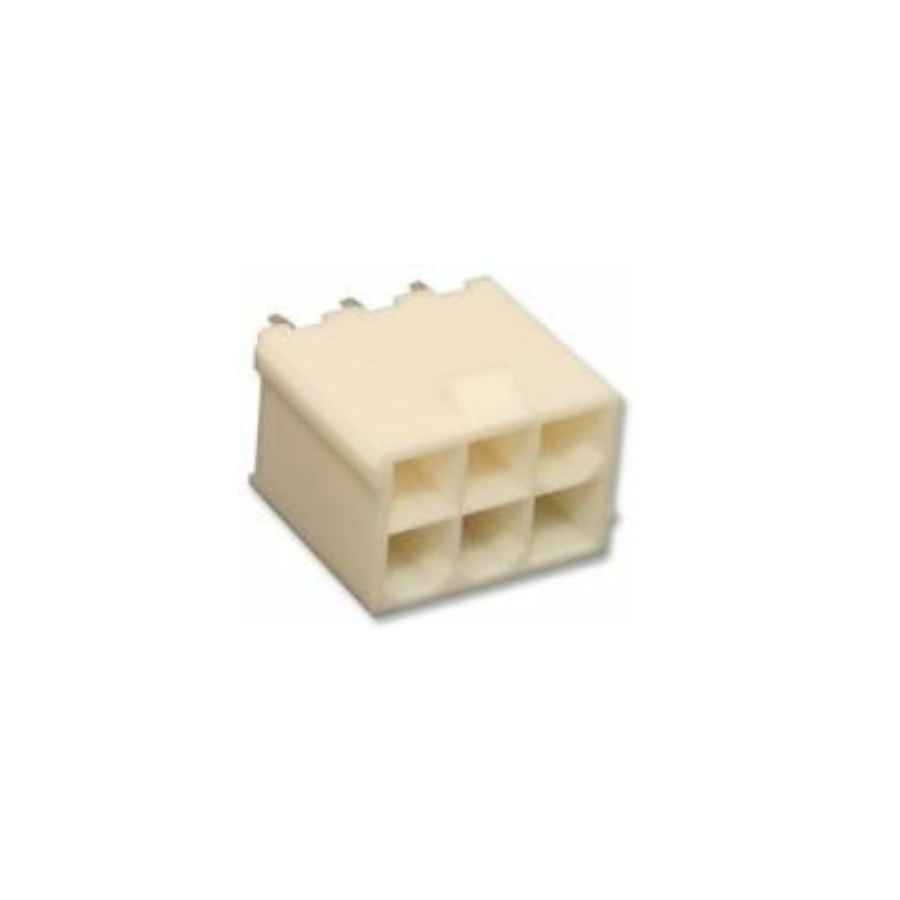

39-31-0068
Manufacturer:
Molex
Mfr.Part #:
39-31-0068
Datasheet:
Description:
Headers and Wire Housings Through Hole Power Number of Positions:6 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 52.32 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 27.3 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 11 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Number of Terminals | 6 |
| Current Rating | 8 A |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 600.6 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Power |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 5.5 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
Stock: 282
Distributors
pcbx
pcbxUnit Price$1.40807
Ext.Price$1.40807
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.40807 | $1.40807 |
| 10 | $1.28923 | $12.89230 |
| 25 | $1.23880 | $30.97000 |
| 50 | $1.22683 | $61.34150 |
| 100 | $1.11397 | $111.39700 |
| 300 | $1.08231 | $324.69300 |
| 500 | $1.05156 | $525.78000 |
