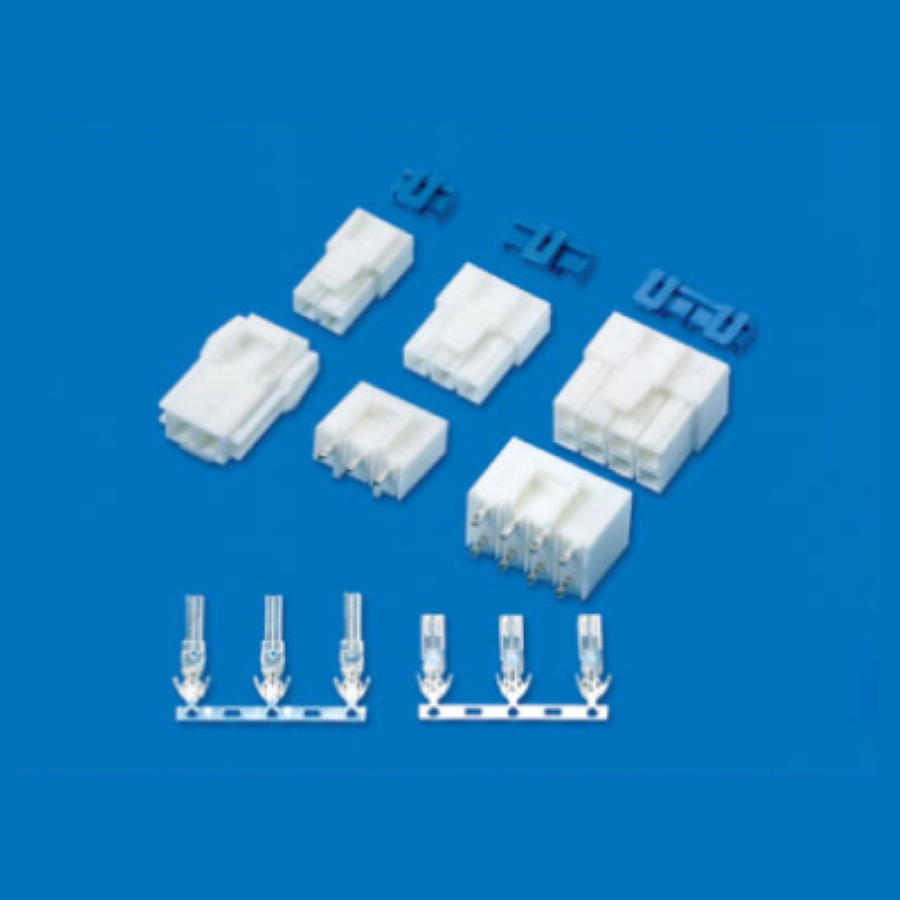

39012026
Manufacturer:
Molex
Mfr.Part #:
39012026
Datasheet:
Description:
Headers and Wire Housings Panel Pin Number of Positions:2 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 10.8 mm |
| Width | 11.6 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 11.6 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 23.9 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Pitch | 4.2 mm |
| Current Rating | 13 A |
| Max Voltage Rating (DC) | 600 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Connector Type | Pin |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Polyamide |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 2284
Distributors
pcbx
pcbxUnit Price$0.16608
Ext.Price$0.16608
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16608 | $0.16608 |
| 10 | $0.15168 | $1.51680 |
| 50 | $0.13853 | $6.92650 |
| 100 | $0.13039 | $13.03900 |
| 500 | $0.12273 | $61.36500 |
| 1000 | $0.11553 | $115.53000 |
| 3000 | $0.10960 | $328.80000 |
| 5000 | $0.10398 | $519.90000 |
