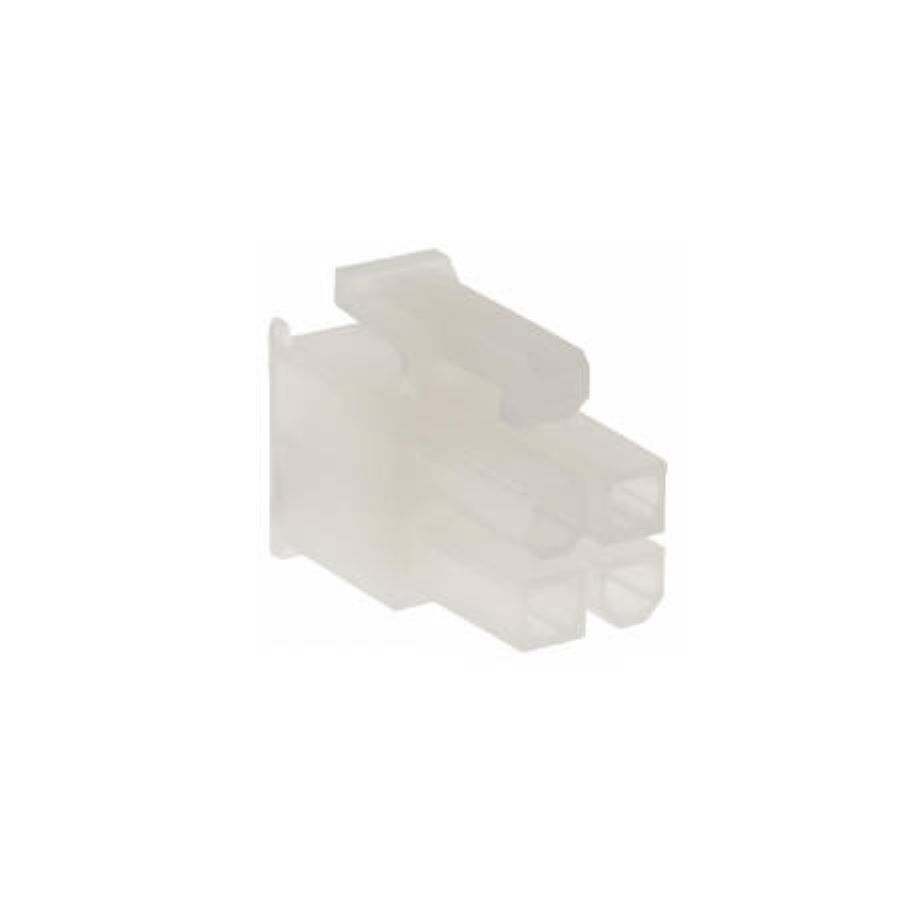

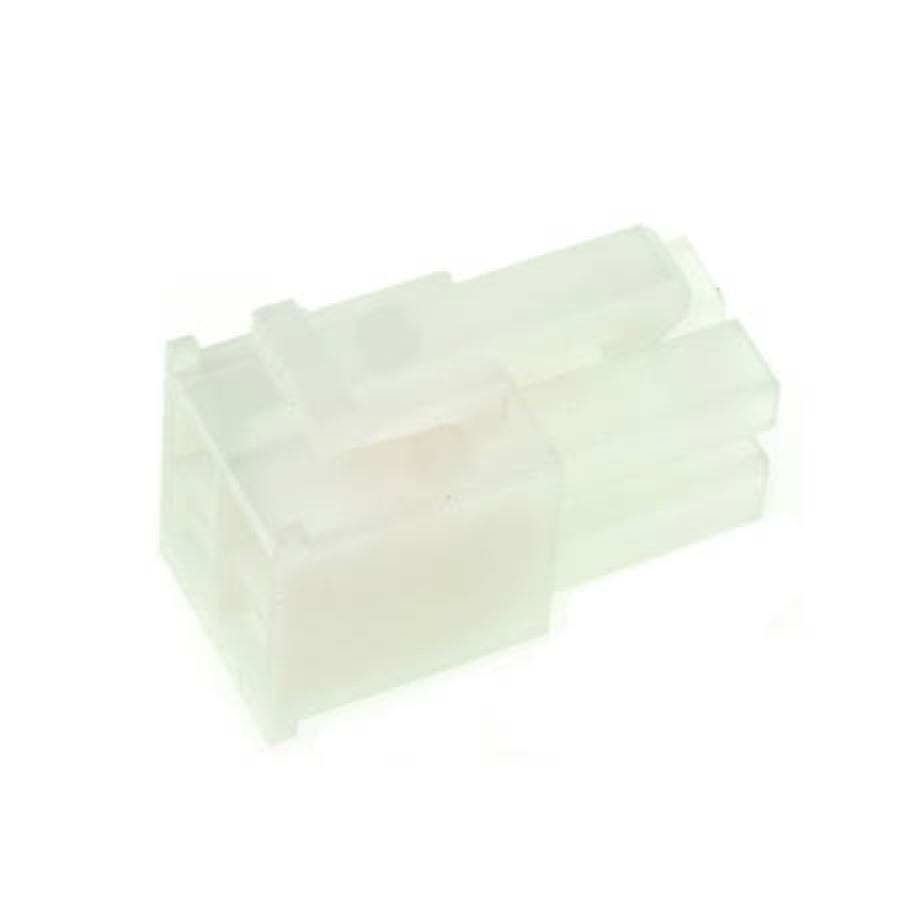

39012040
Manufacturer:
Molex
Mfr.Part #:
39012040
Datasheet:
Description:
Headers and Wire Housings Socket Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 9.6 mm |
| Width | 15.1 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 14.1 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 19.6 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 13 A |
| Max Voltage Rating (DC) | 600 V |
| Flammability Rating | UL94 V-2 |
| Approvals | CSA, TUV, UL |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 4 |
| Connector Type | Socket |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 20709
Distributors
pcbx
pcbxUnit Price$0.14380
Ext.Price$0.14380
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14380 | $0.14380 |
| 10 | $0.07190 | $0.71900 |
| 50 | $0.06501 | $3.25050 |
| 100 | $0.05878 | $5.87800 |
| 500 | $0.05242 | $26.21000 |
| 1000 | $0.04675 | $46.75000 |
| 3000 | $0.04470 | $134.10000 |
| 5000 | $0.04274 | $213.70000 |
| 10000 | $0.04087 | $408.70000 |
