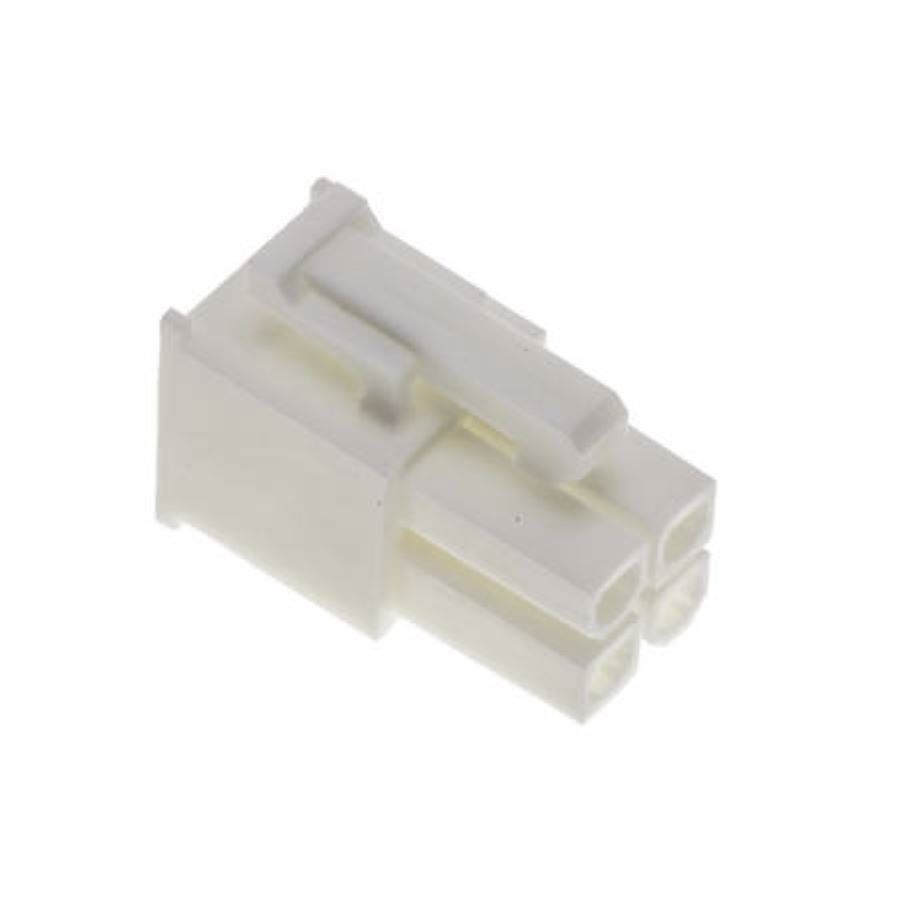

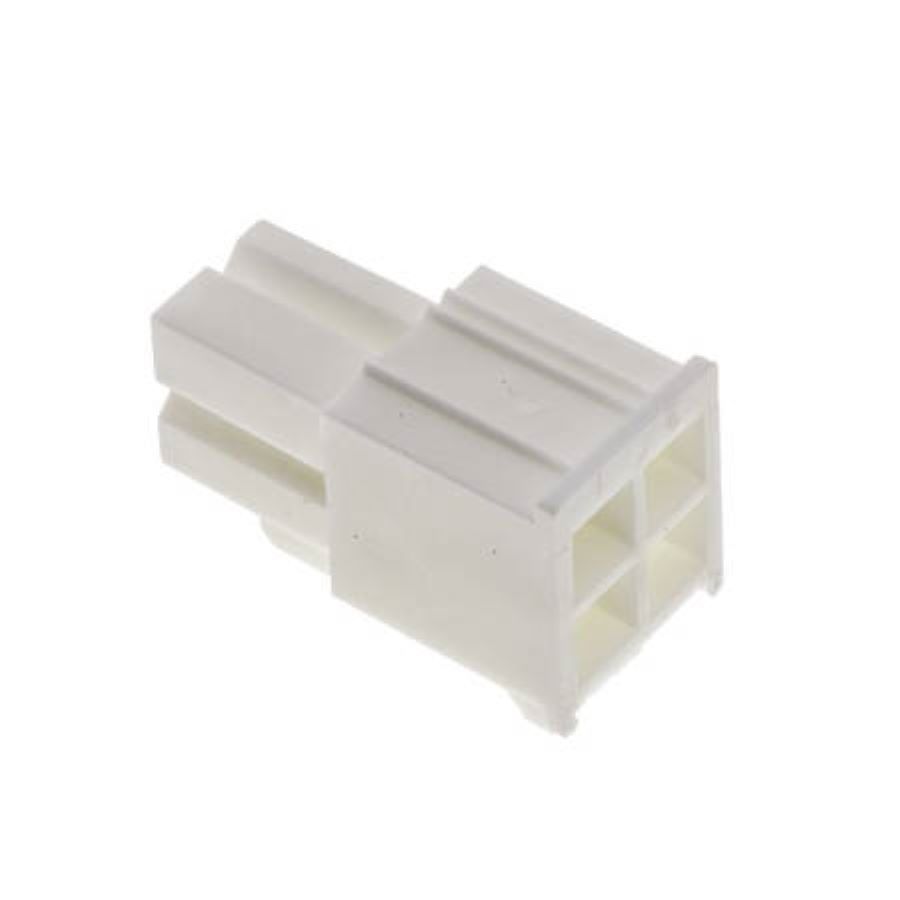

39012045
Manufacturer:
Molex
Mfr.Part #:
39012045
Datasheet:
Description:
Headers and Wire Housings Cable Socket Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 9.6 mm |
| Width | 15.1 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 15.1 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 19.6 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Pitch | 4.2 mm |
| Current Rating | 13 A |
| Max Voltage Rating (DC) | 600 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | White |
| Gender | Receptacle |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Connector Type | Socket |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Housing Material | Polyamide |
| glow wire compliant | Non-compliant |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 11686
Distributors
pcbx
pcbxUnit Price$0.12317
Ext.Price$0.12317
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12317 | $0.12317 |
| 10 | $0.11148 | $1.11480 |
| 50 | $0.10090 | $5.04500 |
| 100 | $0.09115 | $9.11500 |
| 500 | $0.08235 | $41.17500 |
| 1000 | $0.07628 | $76.28000 |
| 3000 | $0.07066 | $211.98000 |
| 5000 | $0.06546 | $327.30000 |
