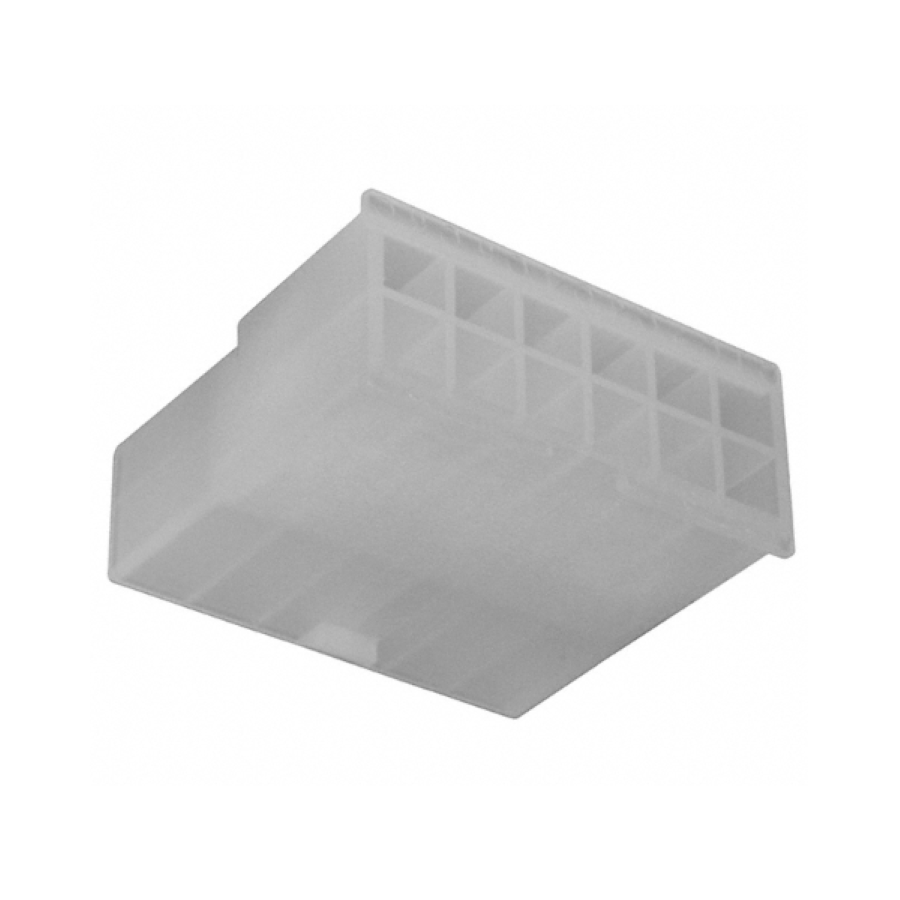

39013045
Manufacturer:
Molex
Mfr.Part #:
39013045
Datasheet:
Description:
Headers and Wire Housings Plug-In Socket Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 9.6 mm |
| Width | 15.1 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 19.6 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Pitch | 4.2 mm |
| Current Rating | 13 A |
| Max Voltage Rating (DC) | 600 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Receptacle |
| Number of Contacts | 4 |
| Connector Type | Socket |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Housing Material | Polyamide |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 5262
Distributors
pcbx
pcbxUnit Price$0.31008
Ext.Price$0.31008
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31008 | $0.31008 |
| 10 | $0.27627 | $2.76270 |
| 50 | $0.24614 | $12.30700 |
| 100 | $0.22441 | $22.44100 |
| 500 | $0.20460 | $102.30000 |
| 1000 | $0.18653 | $186.53000 |
| 3000 | $0.17467 | $524.01000 |
| 5000 | $0.16356 | $817.80000 |
