39014036
Manufacturer:
Molex
Mfr.Part #:
39014036
Datasheet:
Description:

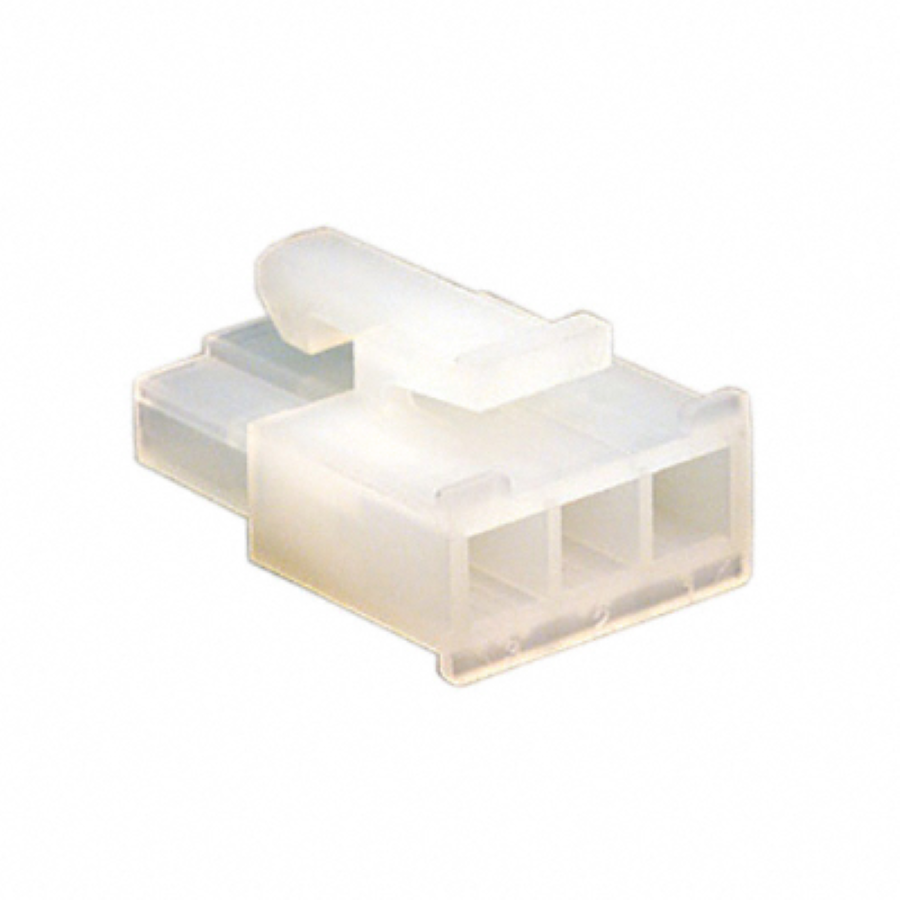

Headers and Wire Housings Cable Pin, Plug, Power, Rectangular, Socket Number of Positions:3 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 19.2 mm |
| Width | 23.4 mm |
| Termination | Crimp |
| Diameter | 4.2 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 3 |
| Height | 7.4 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 7.4 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| REACH SVHC | Unknown |
| Pitch | 4.2 mm |
| Current Rating | 13 A |
| Max Current Rating | 12 A |
| Max Voltage Rating (DC) | 600 V |
| Working Voltage | 250 V |
| Flammability Rating | UL94V-2 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 3 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 3 |
| Body Material | Nylon, Polyamide |
| Number of Poles | 3 |
| Connector Type | Pin, Plug, Power, Rectangular, Socket |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 20 AWG |
| Housing Color | Natural |
| glow wire compliant | Non-compliant |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
