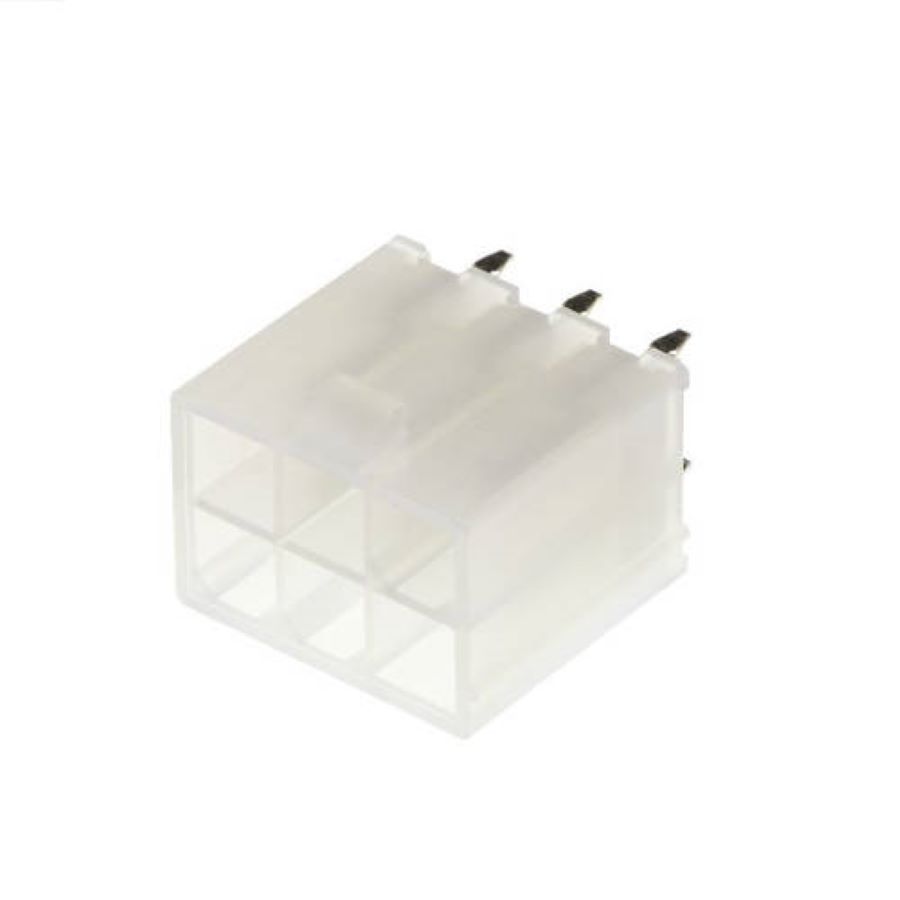

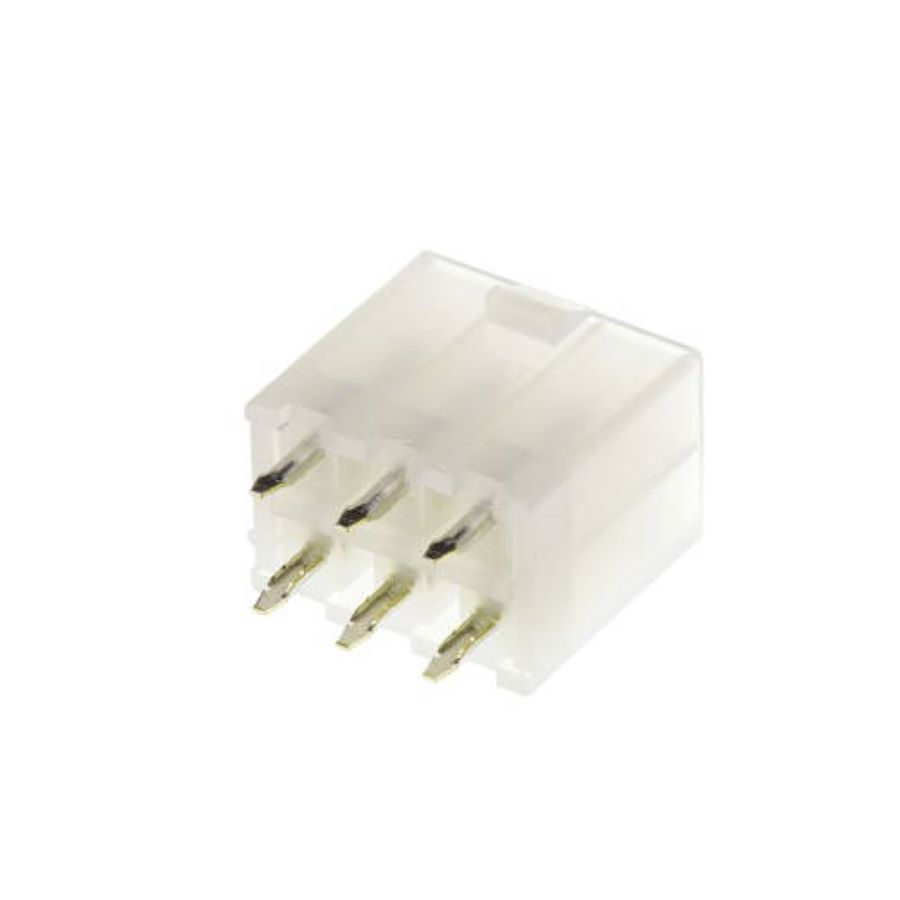

39281063
Manufacturer:
Molex
Mfr.Part #:
39281063
Datasheet:
Description:
Headers and Wire Housings Through Hole Power, Rectangular Number of Positions:6 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 101.19 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 6 |
| Height | 6.04 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 14.18 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 8 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 600 V |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-2 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Clear |
| Gender | Male |
| Number of Contacts | 6 |
| Number of Poles | 6 |
| Connector Type | Power, Rectangular |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
Stock: 5364
Distributors
pcbx
pcbxUnit Price$0.32074
Ext.Price$0.32074
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32074 | $0.32074 |
| 10 | $0.28940 | $2.89400 |
| 50 | $0.26112 | $13.05600 |
| 100 | $0.23183 | $23.18300 |
| 500 | $0.20583 | $102.91500 |
| 1000 | $0.19858 | $198.58000 |
| 3000 | $0.19158 | $574.74000 |
| 5000 | $0.18483 | $924.15000 |
