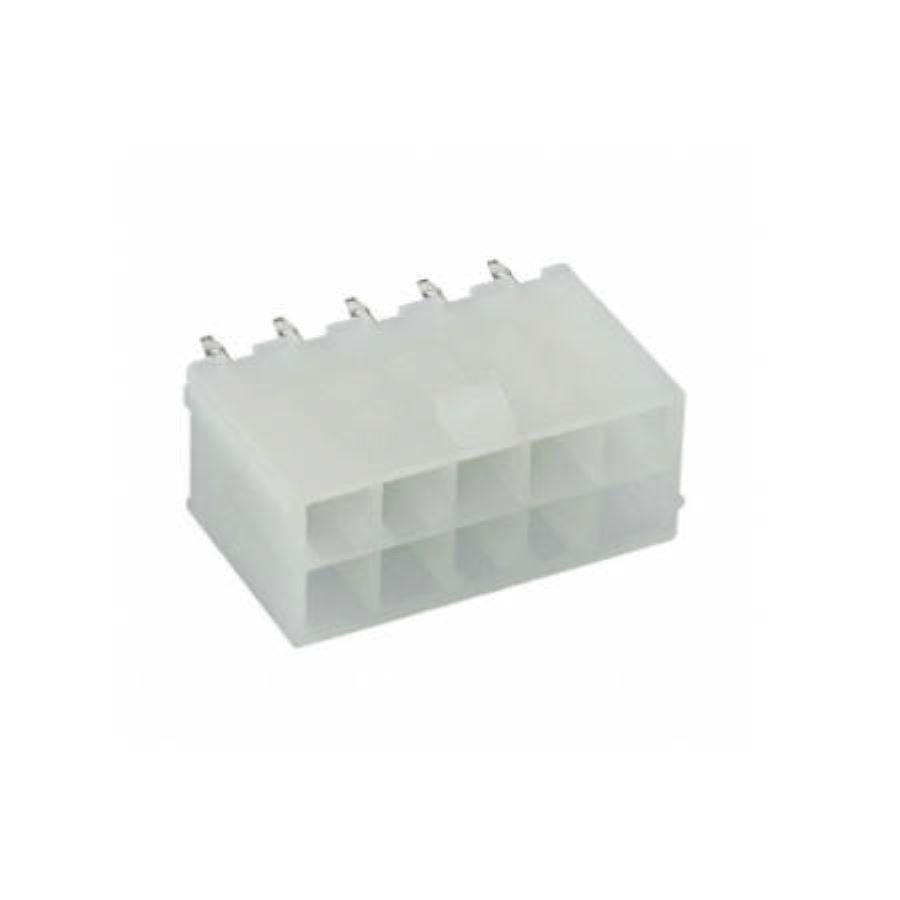

39281103
Manufacturer:
Molex
Mfr.Part #:
39281103
Datasheet:
Description:
Headers and Wire Housings Through Hole Power, Rectangular Number of Positions:10 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 101.19 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 10 |
| Height | 3.5 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 9.39 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 7 A |
| Max Current Rating | 3 A |
| Max Voltage Rating (DC) | 600 V |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-2 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 10 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Clear, Natural |
| Gender | Male |
| Number of Contacts | 10 |
| Number of Poles | 10 |
| Connector Type | Power, Rectangular |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Mating Post Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | PR |
