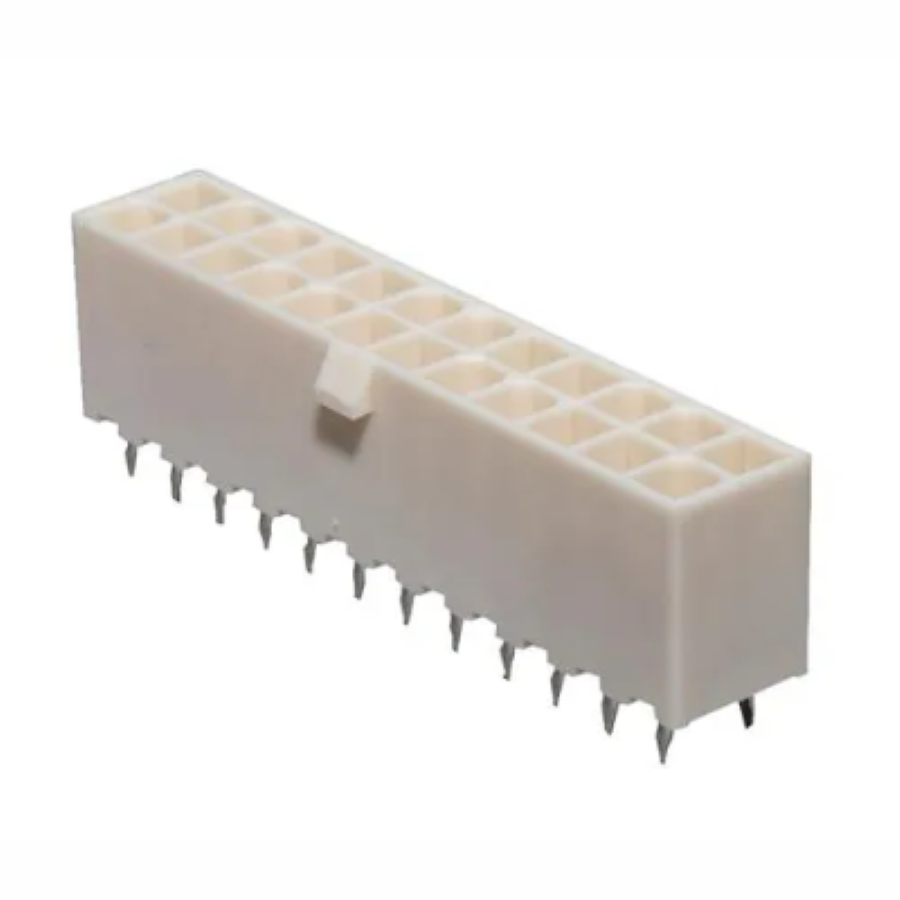

39288020
Manufacturer:
Molex
Mfr.Part #:
39288020
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:2 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 5.8 mm |
| Width | 11 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 2 |
| Height | 12.8 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 11 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 4.2 mm |
| Current Rating | 1 A |
| Max Voltage Rating (DC) | 600 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Number of Lines | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 5.5 mm |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Shape | Straight |
| Housing Color | Natural |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Test Voltage | 1.5 kV |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.5 mm |
Stock: 1378
Distributors
pcbx
pcbxUnit Price$0.21686
Ext.Price$0.21686
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21686 | $0.21686 |
| 10 | $0.19476 | $1.94760 |
| 50 | $0.17491 | $8.74550 |
| 100 | $0.15529 | $15.52900 |
| 500 | $0.13787 | $68.93500 |
| 1000 | $0.12241 | $122.41000 |
| 3000 | $0.11467 | $344.01000 |
| 5000 | $0.10741 | $537.05000 |
