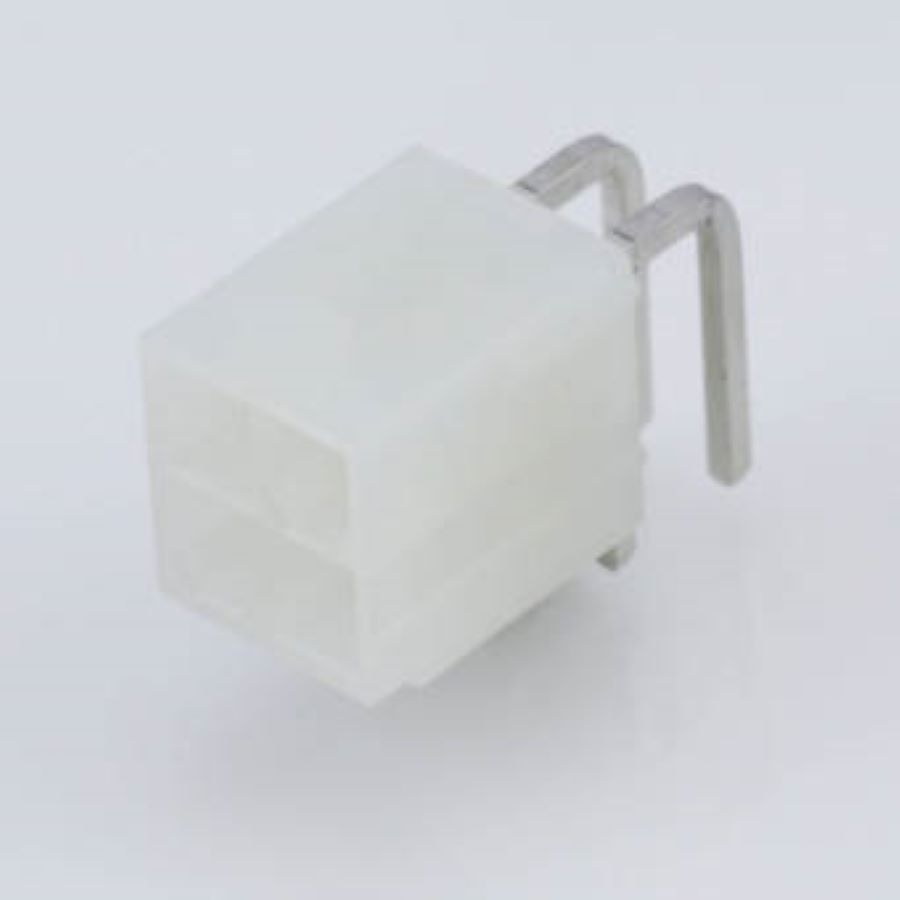

39301040
Manufacturer:
Molex
Mfr.Part #:
39301040
Datasheet:
Description:
Headers and Wire Housings Through Hole Power, Rectangular Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 21.08 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 5 |
| Height | 13.38 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 19.79 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Current Rating | 9 A |
| Working Voltage | 600 V |
| Flammability Rating | UL94V-2 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 4 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 4 |
| ELV | Compliant |
| Number of Poles | 4 |
| Connector Type | Power, Rectangular |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.6 mm |
Stock: 5936
Distributors
pcbx
pcbxUnit Price$0.41270
Ext.Price$0.41270
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41270 | $0.41270 |
| 10 | $0.38222 | $3.82220 |
| 25 | $0.35399 | $8.84975 |
| 50 | $0.32784 | $16.39200 |
| 100 | $0.29900 | $29.90000 |
| 300 | $0.27270 | $81.81000 |
| 500 | $0.24871 | $124.35500 |
| 1000 | $0.23811 | $238.11000 |
| 3000 | $0.22796 | $683.88000 |
| 5000 | $0.21825 | $1091.25000 |
