39303045
Manufacturer:
Molex
Mfr.Part #:
39303045
Datasheet:
Description:

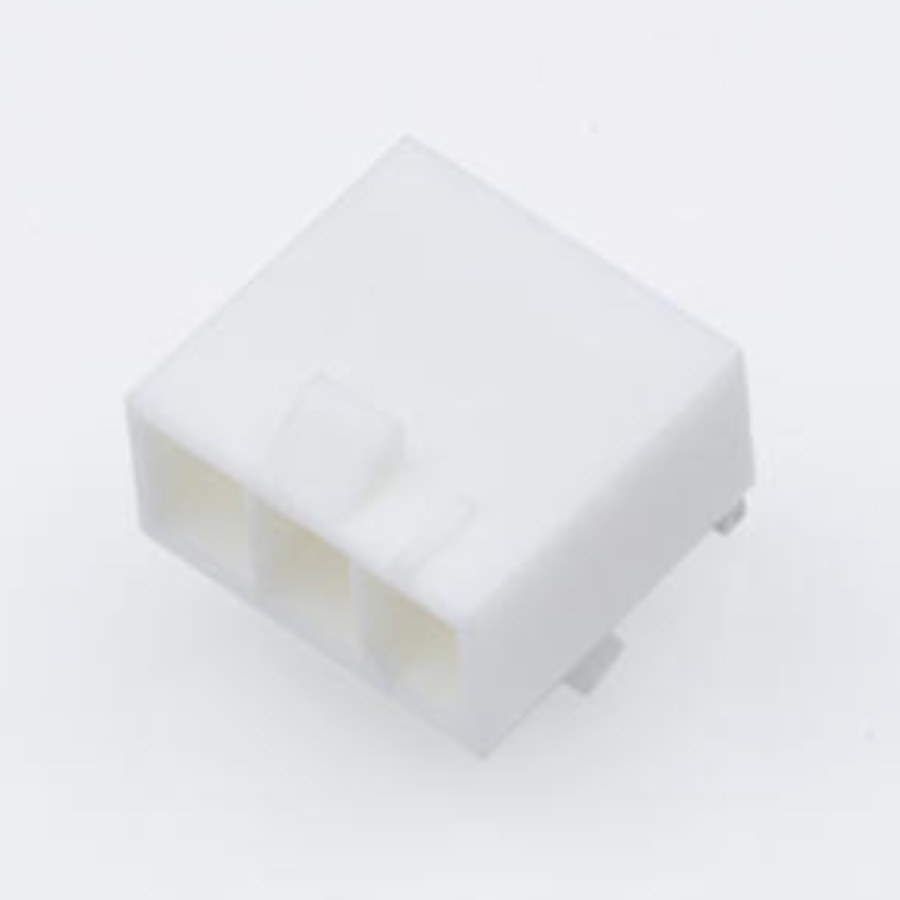

Headers and Wire Housings Through Hole Male Pin Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 600 V |
| Length | 18 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 4 |
| Material | Brass, Nylon |
| Packaging | Bulk |
| Depth | 13.9 mm |
| RoHS | Compliant |
| Lead Pitch | 4.2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Number of Terminals | 4 |
| Current Rating | 13 A |
| Number of Circuits | 4 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Male Pin |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Contact Resistance | 10 mΩ |
| Housing Color | Natural |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 2285
Distributors
pcbx
pcbxUnit Price$0.64013
Ext.Price$0.64013
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.64013 | $0.64013 |
| 10 | $0.52973 | $5.29730 |
| 25 | $0.49285 | $12.32125 |
| 50 | $0.45854 | $22.92700 |
| 100 | $0.42661 | $42.66100 |
| 300 | $0.41185 | $123.55500 |
| 500 | $0.39760 | $198.80000 |
| 1000 | $0.38383 | $383.83000 |
