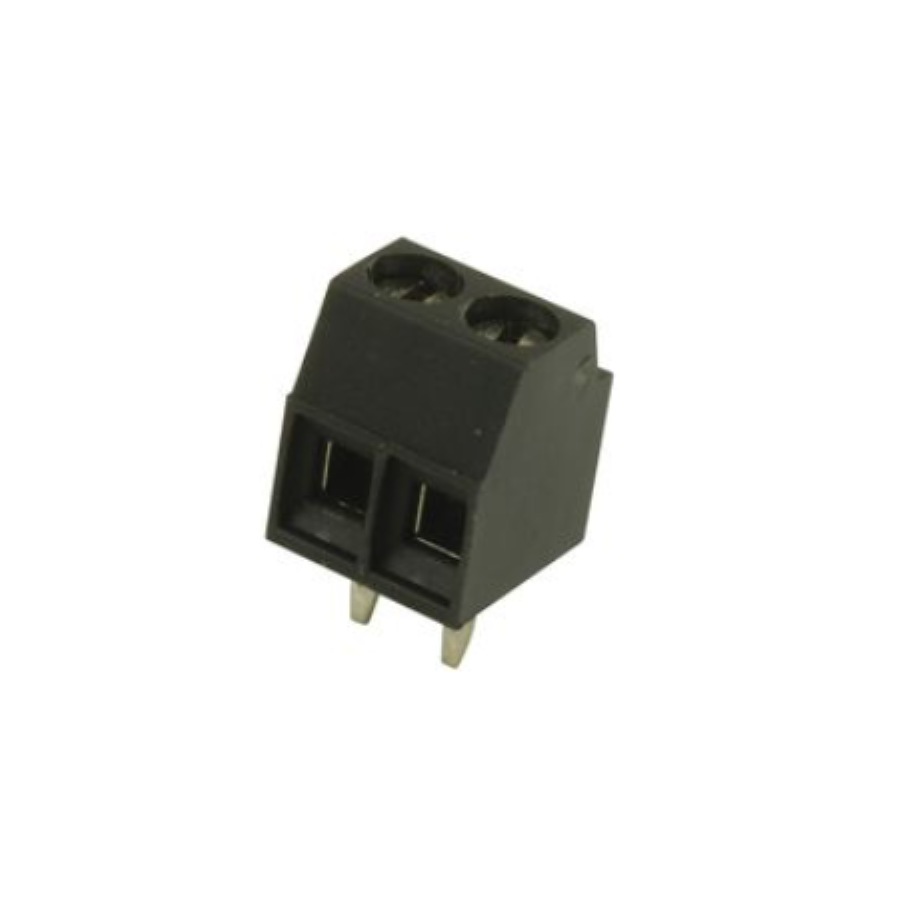

39357-0002
Manufacturer:
Molex
Mfr.Part #:
39357-0002
Datasheet:
Description:
Terminal Blocks Through Hole 2 3.5 mm 17.5 A 300 V 28 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Length | 3.5 mm |
| Termination | Screw |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Height | 8.51 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 7.29 mm |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Weight | 1.240008 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 3.5 mm |
| Current Rating | 17.5 A |
| Max Current Rating | 17.5 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 2 |
| Wire/Cable Gauge | 28 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | PBT |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Max Voltage Rating (AC) | 300 V |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 28 AWG |
| Housing Color | Black |
| Schedule B | 8536695050|8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Connection Method | Screw |
| Wire Gauge Range | 28 AWG to 16 AWG |
Stock: 43
Distributors
pcbx
pcbxUnit Price$0.85724
Ext.Price$0.85724
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.85724 | $0.85724 |
| 10 | $0.59493 | $5.94930 |
| 25 | $0.56248 | $14.06200 |
| 50 | $0.53678 | $26.83900 |
| 100 | $0.52189 | $52.18900 |
| 300 | $0.47766 | $143.29800 |
| 500 | $0.43718 | $218.59000 |
