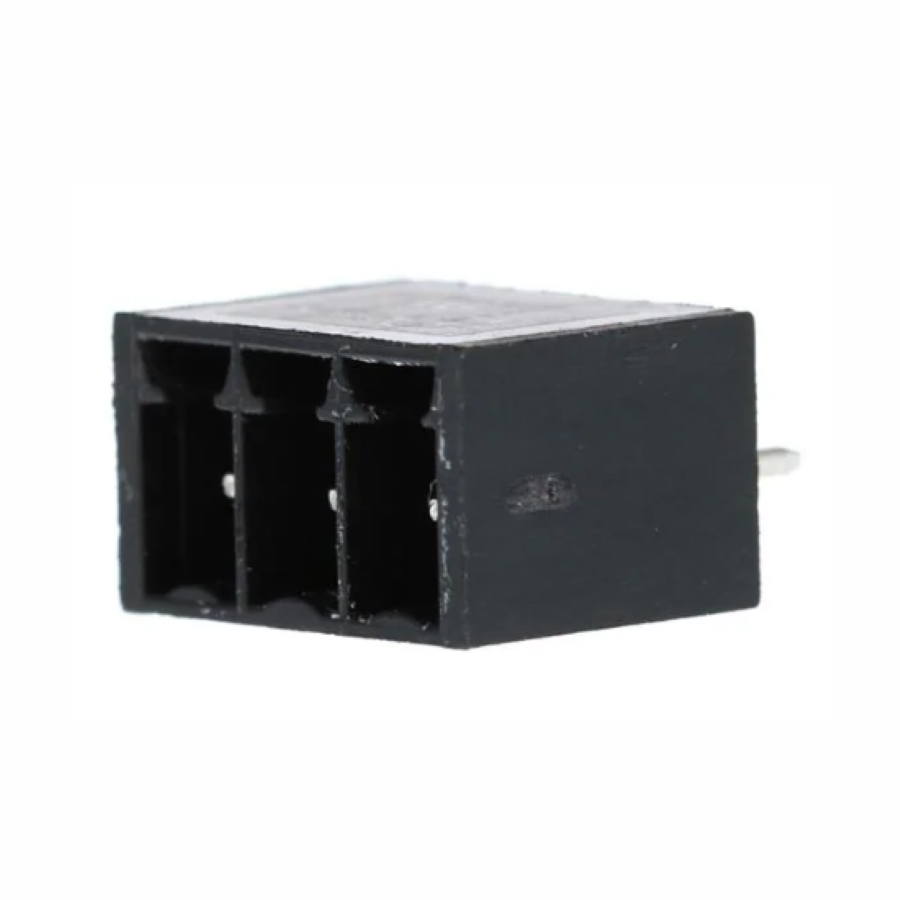

39501-1003
Manufacturer:
Molex
Mfr.Part #:
39501-1003
Datasheet:
Description:
Terminal Blocks Through Hole 3 3.5 mm 8 A 300 V
| Parameter | Value |
|---|---|
| Length | 11.9 mm |
| Width | 6.9 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.5 mm |
| Current | 8 A |
| Current Rating | 8 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 3 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Terminal Block |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Max Voltage Rating (AC) | 300 V |
| Wire Gauge (Max) | 2 AWG |
| Wire Gauge (Min) | 20 AWG |
| Housing Color | Black |
| Schedule B | 8536694040 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Connection Method | Plug |
Stock: 1520
Distributors
pcbx
pcbxUnit Price$0.74464
Ext.Price$0.74464
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.74464 | $0.74464 |
| 10 | $0.54288 | $5.42880 |
| 25 | $0.47534 | $11.88350 |
| 50 | $0.43174 | $21.58700 |
| 100 | $0.42917 | $42.91700 |
| 300 | $0.38406 | $115.21800 |
| 500 | $0.34368 | $171.84000 |
| 1000 | $0.30521 | $305.21000 |
