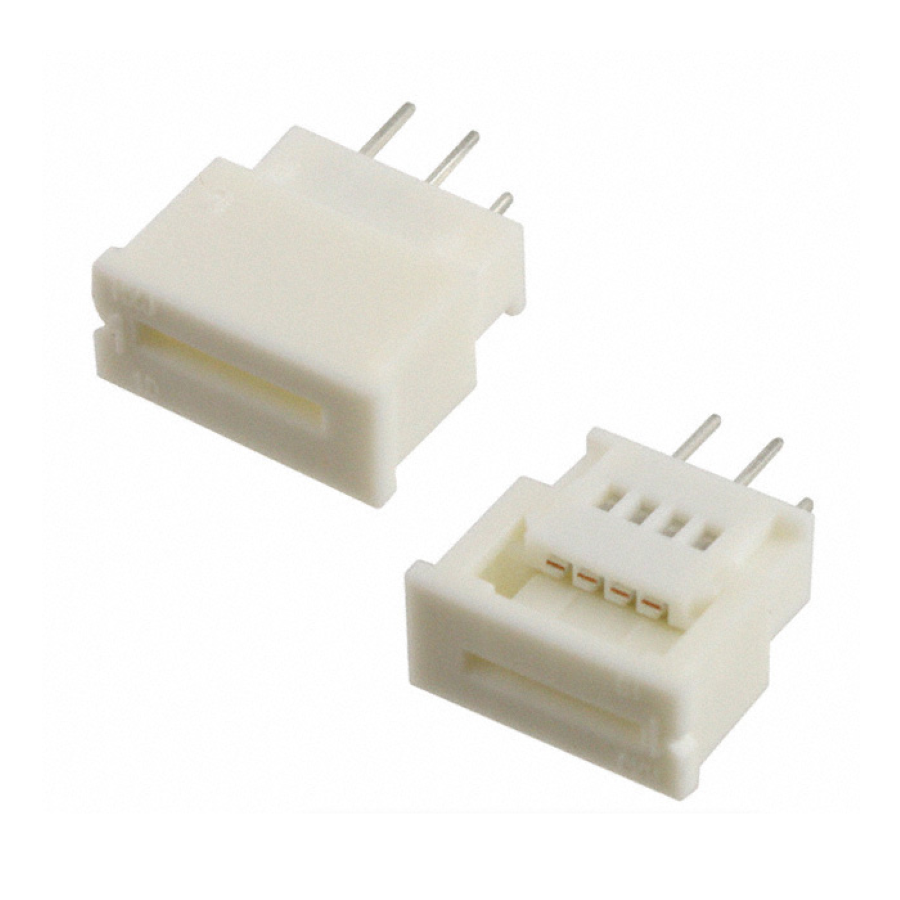

39532045
Manufacturer:
Molex
Mfr.Part #:
39532045
Datasheet:
Description:
FFC / FPC Through Hole Number of Positions:4 1 A 200 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 200 V |
| Length | 10.75 mm |
| Width | 5 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 4 |
| Height | 9.8 mm |
| Packaging | Tray |
| Voltage Rating | 200 V |
| Depth | 5 mm |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Vertical, Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Receptacle |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Stackable | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | JP |
| Mounting Angle | Vertical |
