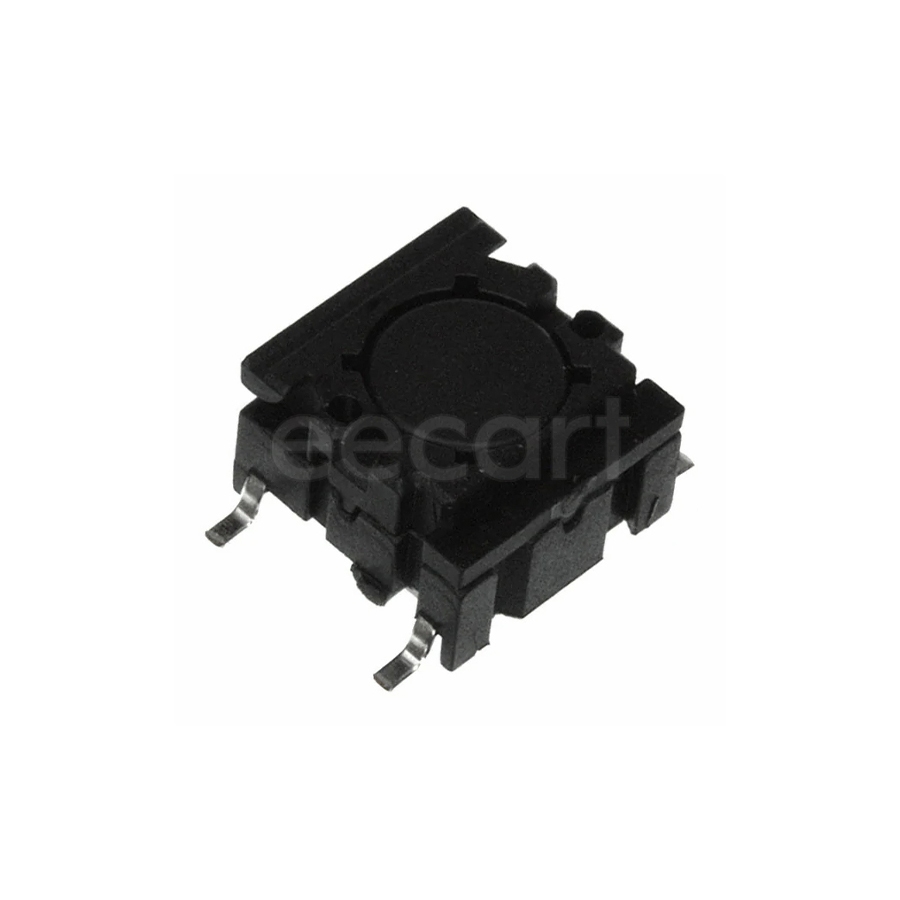

3ASH9
Manufacturer:
Apem
Mfr.Part #:
3ASH9
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 300 gf Straight
| Parameter | Value |
|---|---|
| Max Operating Temperature | 160 °C |
| Min Operating Temperature | -40 °C |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Throw Configuration | SPST |
| Mechanical Life | 10 Mcycles |
| Voltage Rating (DC) | 24 V |
| Switch Function | Off-Mom |
| Current Rating | 50 mA |
| Operating Force | 300 gf |
| Actuator Material | Polyphenylene Sulfide |
| Life (Cycles) | 10 MCycles |
| Packaging | Tube |
| Actuator Type | Plunger for Cap |
| Mounting Direction | Straight |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Circuit Type | SPST-NO |
| RoHS | Compliant |
Stock: 122
Distributors
pcbx
pcbxUnit Price$2.06551
Ext.Price$2.06551
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.06551 | $2.06551 |
| 10 | $1.60214 | $16.02140 |
| 25 | $1.50680 | $37.67000 |
| 50 | $1.41714 | $70.85700 |
| 100 | $1.33283 | $133.28300 |
| 300 | $1.24578 | $373.73400 |
| 500 | $1.16441 | $582.20500 |
| 1000 | $1.13278 | $1132.78000 |
