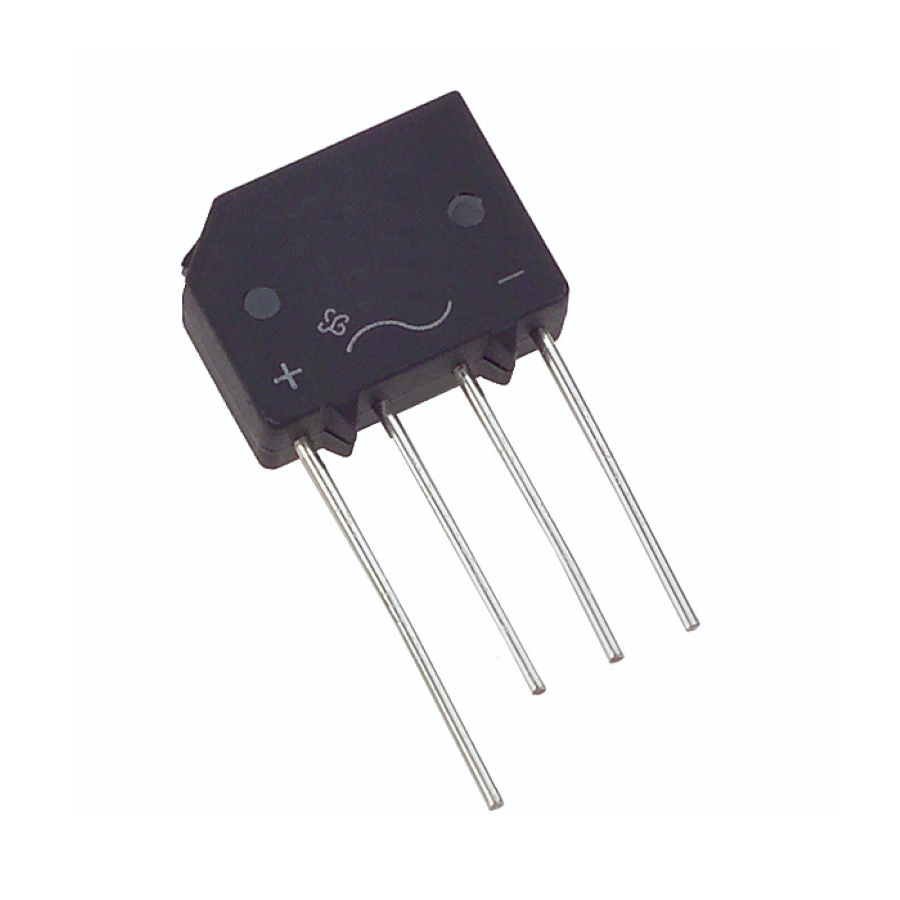

3KBP06M-E4/51
Manufacturer:
Vishay
Mfr.Part #:
3KBP06M-E4/51
Datasheet:
Description:
Bridge Rectifiers KBPM-4 Through Hole Single Phase 600 V Forward Current:3 A Forward Voltage:1.05 V
| Parameter | Value |
|---|---|
| Capacitance | |
| Length | 15.24 mm |
| Width | 5.08 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Height | 11.68 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Type | Single Phase |
| Number of Elements | 1 |
| Forward Current | 3 A |
| Forward Voltage | 1.05 V |
| Max Reverse Leakage Current | 5 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 600 V |
| Element Configuration | Single |
| Max Surge Current | 80 A |
| Forward Surge Current (Ifsm) | 80 A |
| Reverse Voltage | 420 V |
| Peak Non-Repetitive Surge Current | 80 A |
| Reverse Current | 5 µA |
| Recovery Time | |
| Peak Reverse Voltage | 600 V |
