12226-1150-00FR
Manufacturer:
3M
Mfr.Part #:
12226-1150-00FR
Datasheet:
Description:

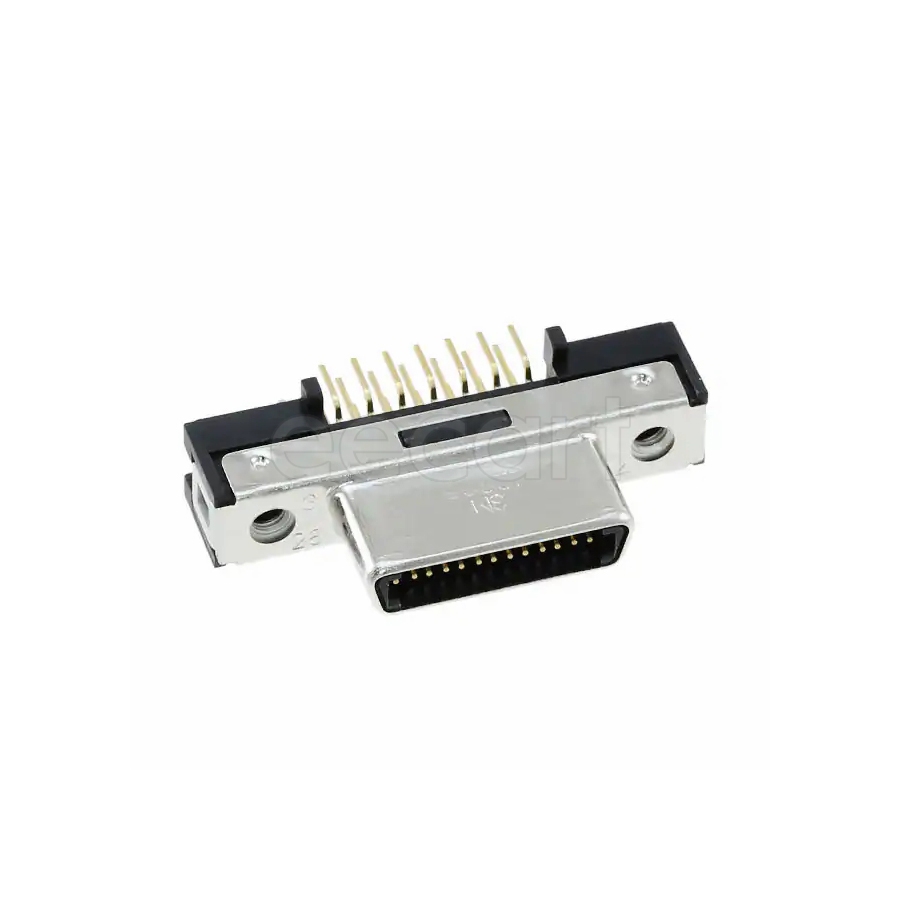

D-Sub Connectors Through Hole Receptacle Number of Positions:26 Solder Receptacle
| Parameter | Value |
|---|---|
| Length | 24.8 mm |
| Width | 11.5 mm |
| Termination | Solder |
| Max Operating Temperature | 70 °C |
| Material | Steel |
| Packaging | Tray |
| Depth | 7.5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Features | Shielded |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.6 mm |
| Type | Receptacle |
| Number of Terminals | 26 |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 26 |
| Connector Type | Power, Receptacle, Rectangular |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Housing Color | Black |
| Plating | Nickel |
| Min Operating Temperature | -40 °C |
Stock: 1145
Distributors
pcbx
pcbxUnit Price$7.86460
Ext.Price$7.86460
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $7.86460 | $7.86460 |
| 10 | $6.68502 | $66.85020 |
| 25 | $6.26622 | $156.65550 |
| 50 | $5.96703 | $298.35150 |
| 100 | $5.68231 | $568.23100 |
| 300 | $5.25872 | $1577.61600 |
| 500 | $5.07277 | $2536.38500 |
| 1000 | $4.83093 | $4830.93000 |
