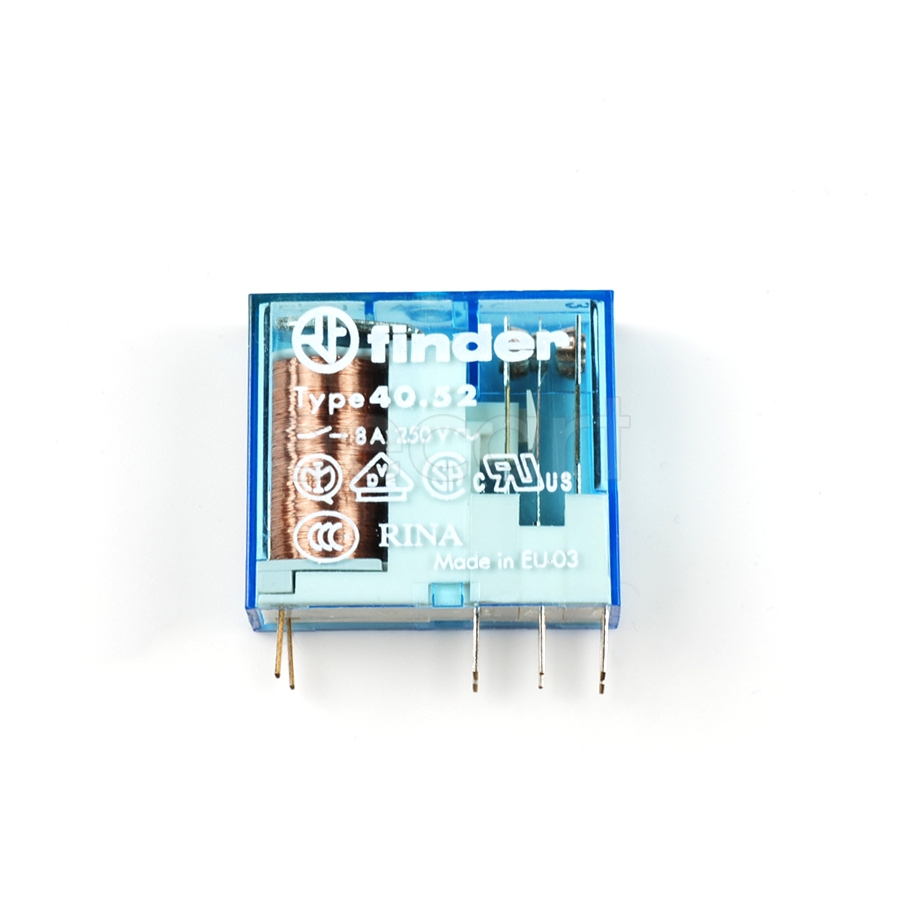

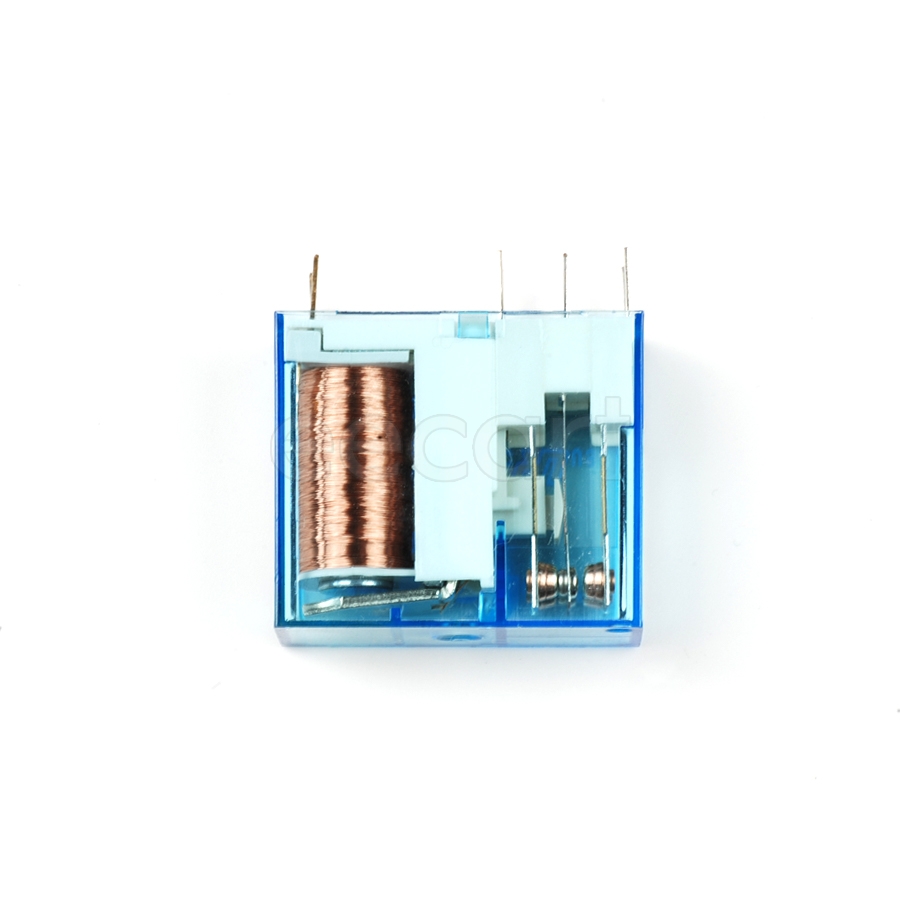

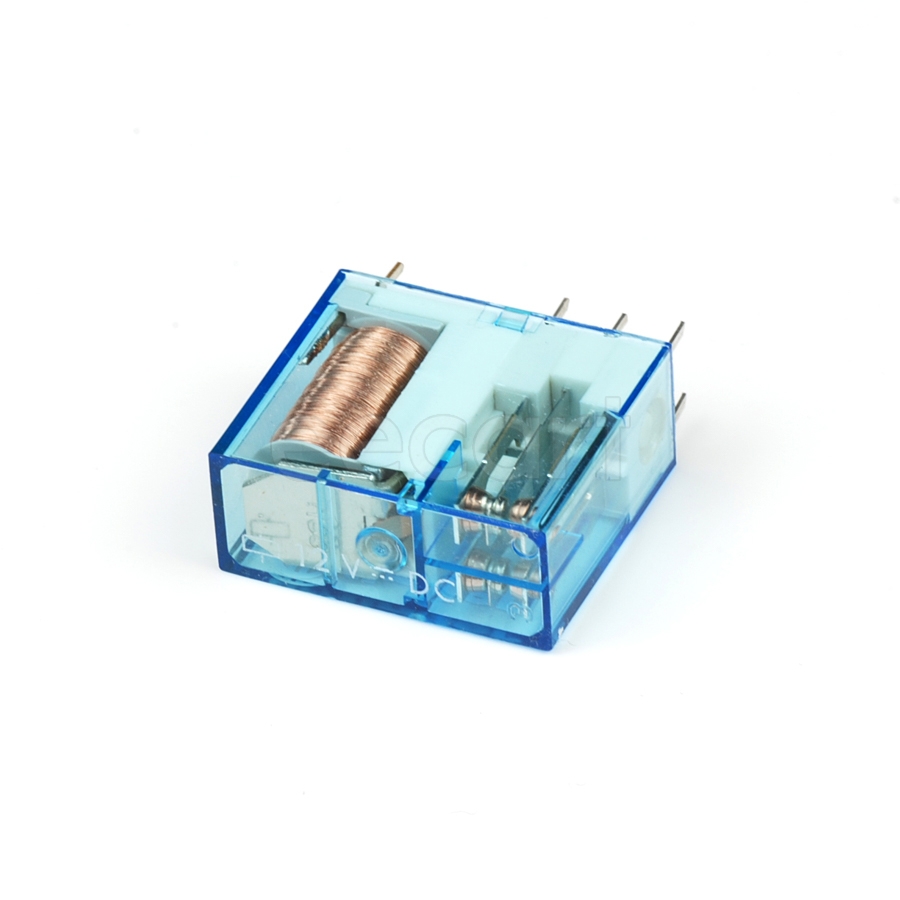

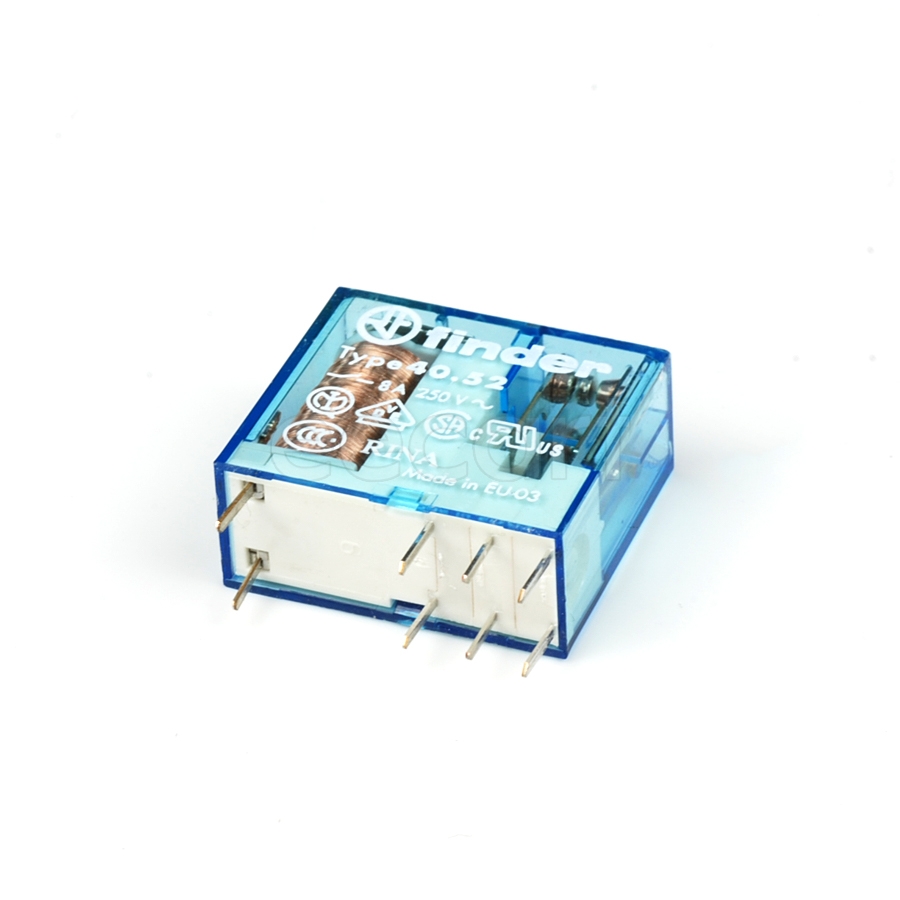

40.52.9.012.0000
Manufacturer:
Finder
Mfr.Part #:
40.52.9.012.0000
Datasheet:
Description:
Relays Through Hole Coil Current:55 mA Contact Current Rating:8 A DPDT Coil Voltage (DC):12 V General Purpose
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 29 mm |
| Width | 12.4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 25 mm |
| Circuit Type | DPDT (2 Form C) |
| Packaging | Bulk |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | IP40 |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 16 A |
| Throw Configuration | DPDT |
| Coil Voltage (DC) | 12 V |
| Coil Current | 55 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 220 Ω |
| Relay Type | General Purpose |
| Operate Time | 7 ms |
| Release Time | 3 ms |
| Contact Current Rating | 8 A |
| switching current | 8 A |
| Termination Style | Plug In |
| Switching Voltage | 250 V |
| Switching Capacity | 2 kW |
| Must Operate Voltage | 8.8 V |
| Must Release Voltage | 2.4 V |
