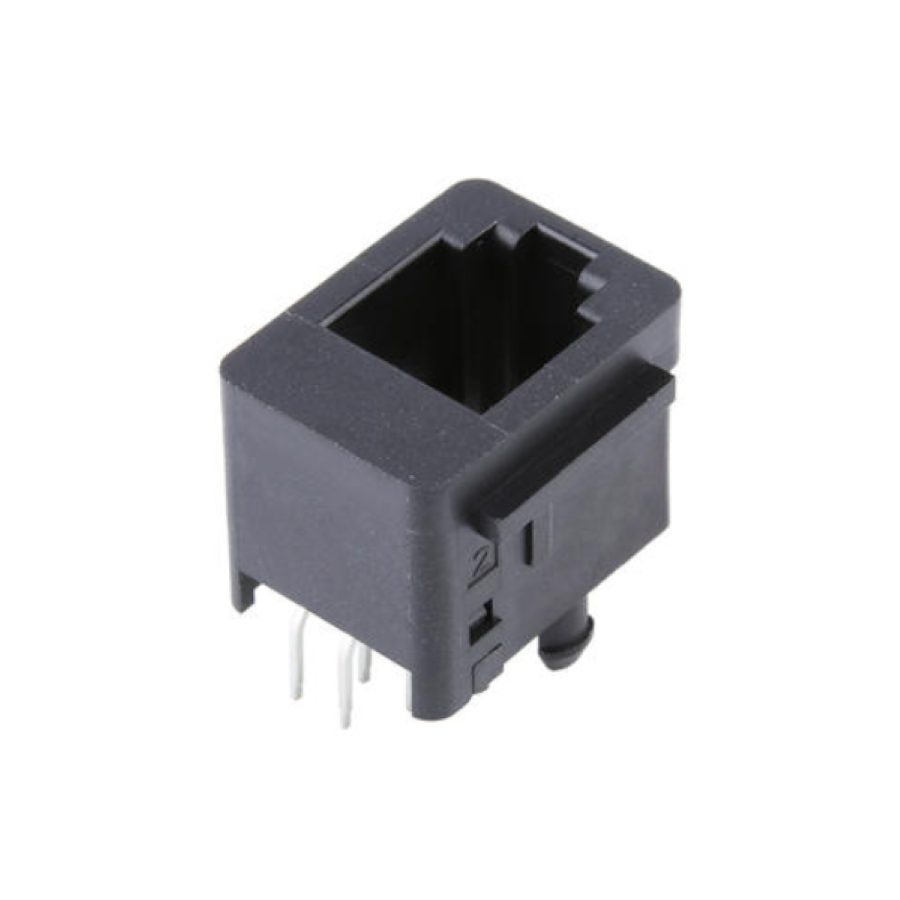

42878-8410
Manufacturer:
Molex
Mfr.Part #:
42878-8410
Datasheet:
Description:
Modular / Ethernet Connectors Through Hole RJ45 Female Current Rating:1.5 A Voltage Rating:150 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 15.88 mm |
| Width | 18.03 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 12.7 mm |
| Packaging | Reel |
| Voltage Rating | 150 V |
| Depth | 12.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Number of Terminals | 8 |
| Current Rating | 1.5 A |
| Max Current Rating | 1.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 8 |
| Direction(Counting Sequence) | User Selectable |
| Connector Type | RJ45 |
| Number of Positions | 8 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 150 V |
| Housing Color | Black |
| Plating | Tin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 1052
Distributors
pcbx
pcbxUnit Price$0.78824
Ext.Price$0.78824
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78824 | $0.78824 |
| 10 | $0.67625 | $6.76250 |
| 25 | $0.63180 | $15.79500 |
| 50 | $0.60016 | $30.00800 |
| 100 | $0.57195 | $57.19500 |
| 300 | $0.54030 | $162.09000 |
| 500 | $0.51040 | $255.20000 |
| 1000 | $0.50954 | $509.54000 |
