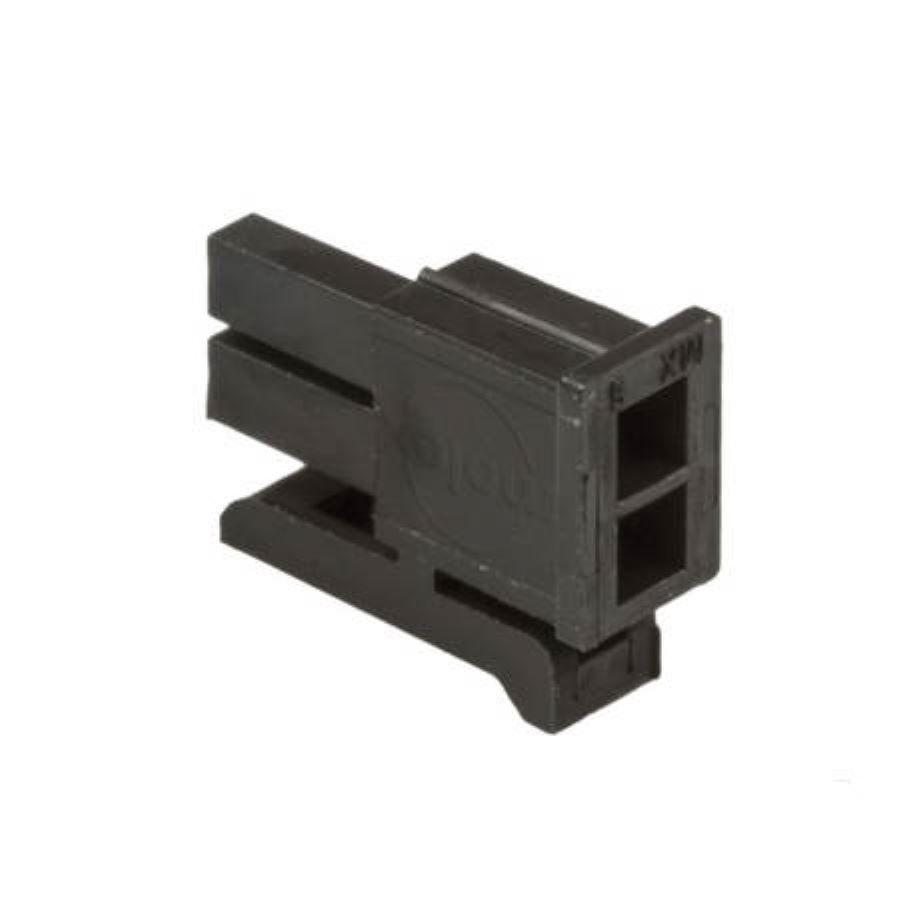

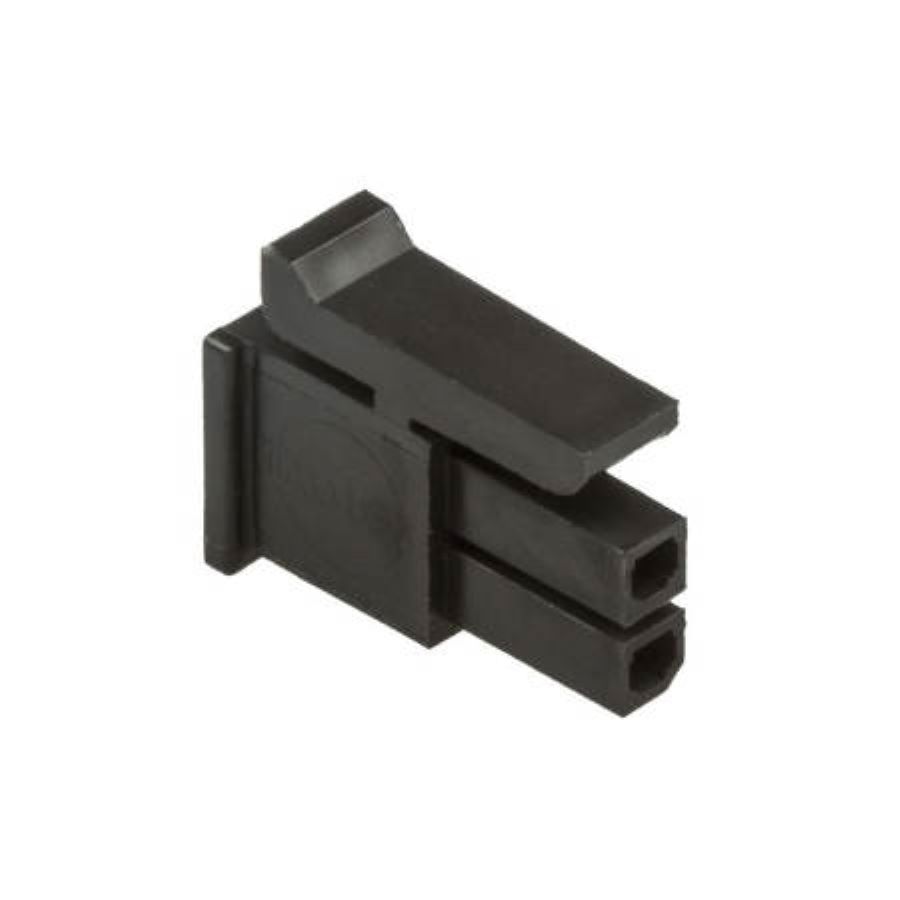

430250200
Manufacturer:
Molex
Mfr.Part #:
430250200
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Power, Rectangular Number of Positions:2 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 3.86 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Height | 8.28 mm |
| Material | Polyester |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 14 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, TUV, UL |
| Number of Circuits | 2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Connector Type | Power, Rectangular |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Black |
| glow wire compliant | Non-compliant |
| Contact Gender | Female |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
Stock: 20307
Distributors
pcbx
pcbxUnit Price$0.08563
Ext.Price$0.08563
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08563 | $0.08563 |
| 10 | $0.07645 | $0.76450 |
| 50 | $0.06826 | $3.41300 |
| 100 | $0.06051 | $6.05100 |
| 500 | $0.05364 | $26.82000 |
| 1000 | $0.05106 | $51.06000 |
| 3000 | $0.04860 | $145.80000 |
| 5000 | $0.04626 | $231.30000 |
