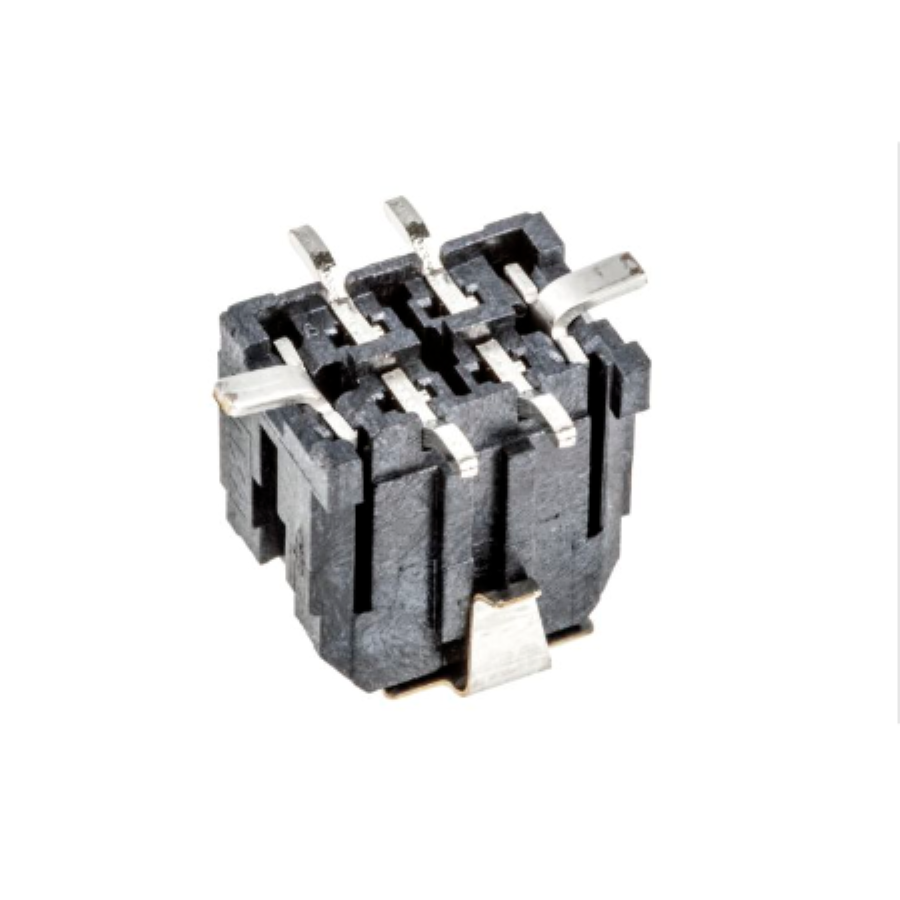

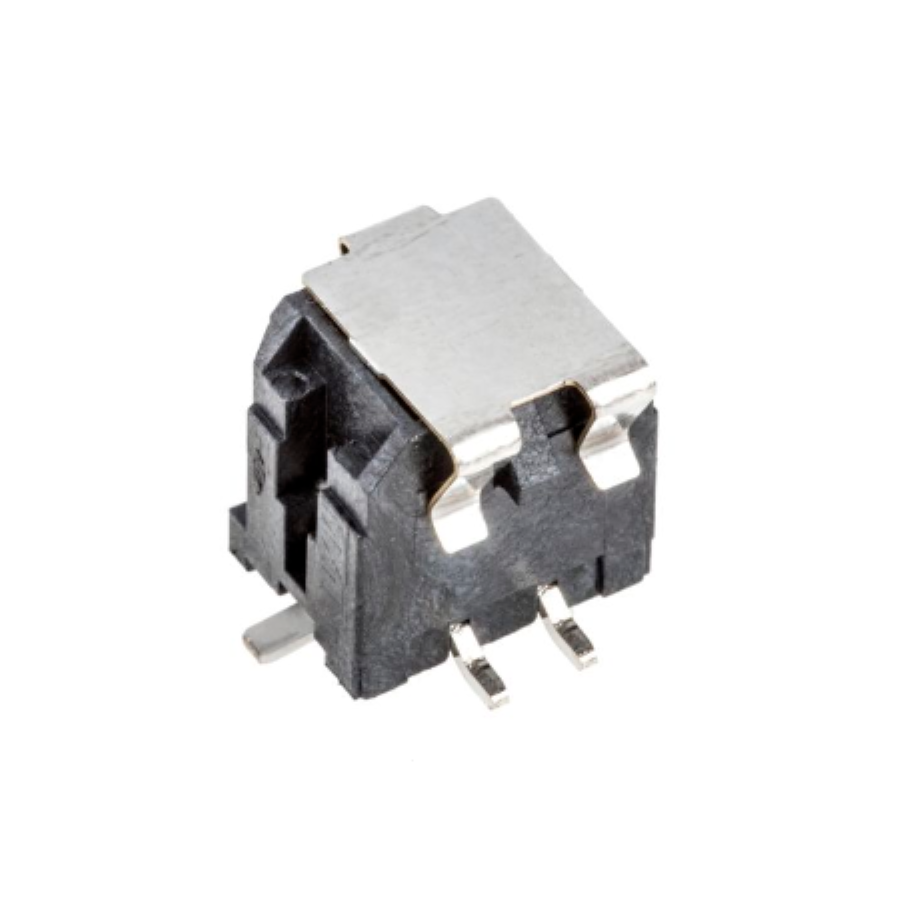

43045-0418
Manufacturer:
Molex
Mfr.Part #:
43045-0418
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Power Number of Positions:4 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 10.16 mm |
| Material | Thermoplastic |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Power |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 3410
Distributors
pcbx
pcbxUnit Price$1.63976
Ext.Price$1.63976
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.63976 | $1.63976 |
| 10 | $1.43286 | $14.32860 |
| 25 | $1.37045 | $34.26125 |
| 50 | $1.33882 | $66.94100 |
| 100 | $1.27641 | $127.64100 |
| 300 | $1.14191 | $342.57300 |
| 500 | $1.02158 | $510.79000 |
| 1000 | $0.91392 | $913.92000 |
