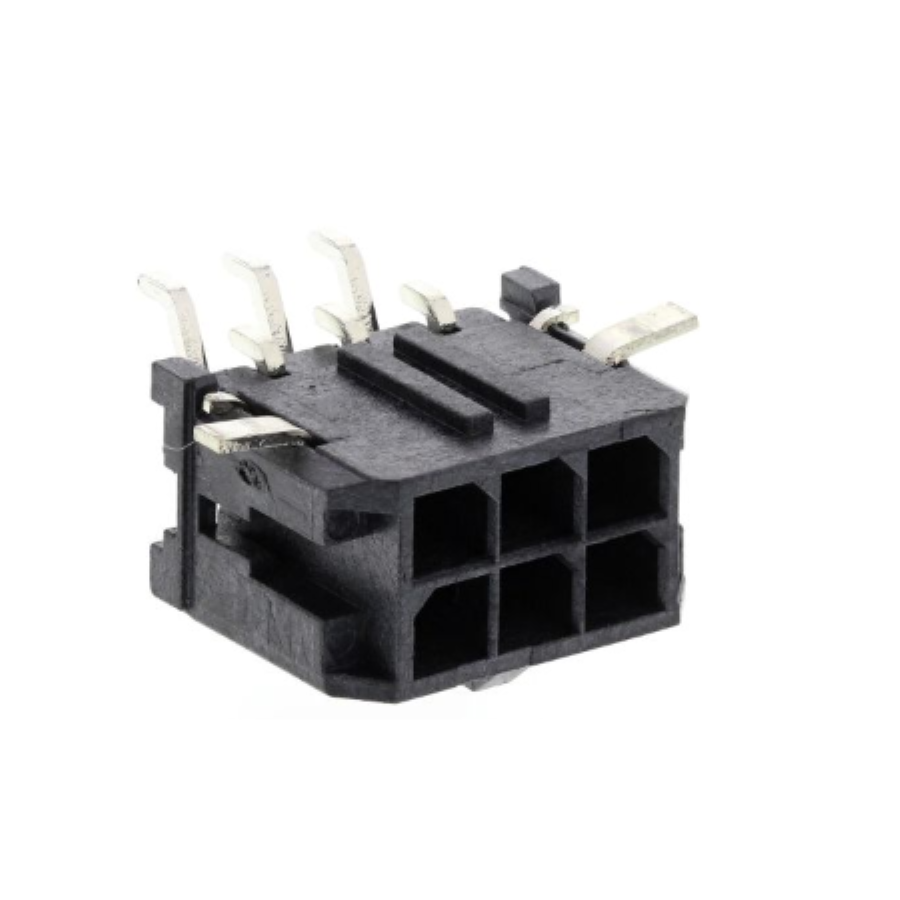

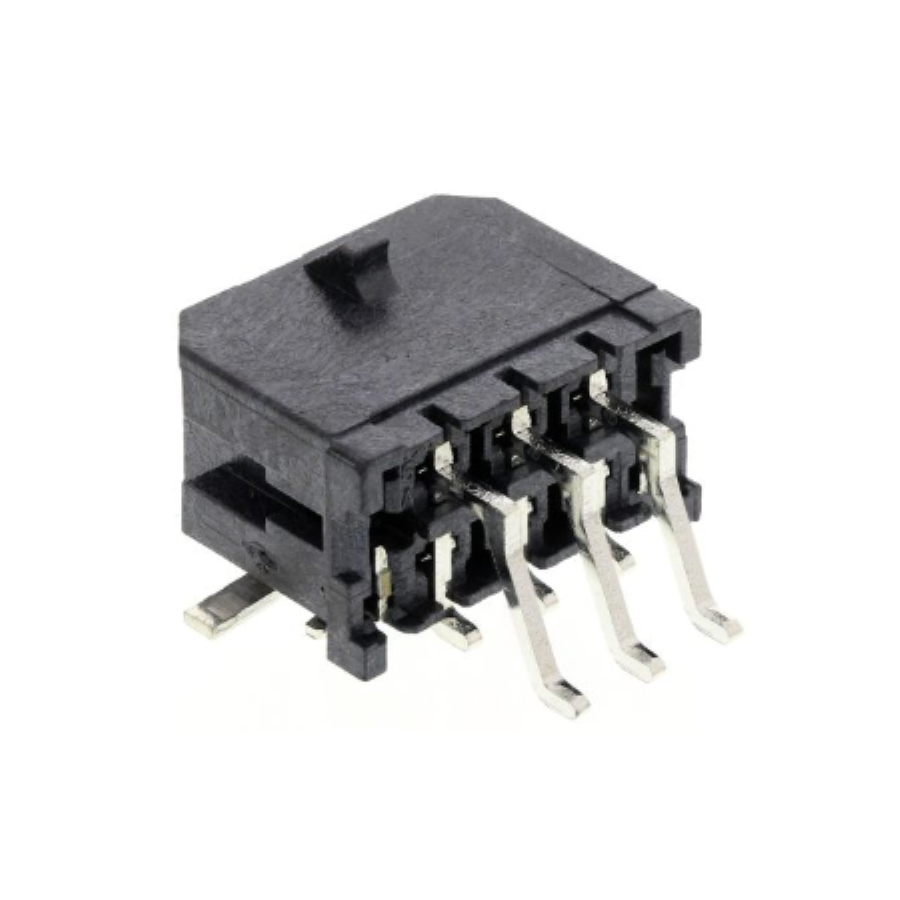

43045-0609
Manufacturer:
Molex
Mfr.Part #:
43045-0609
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin, Power, Rectangular Number of Positions:6 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Diameter | 3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 6 |
| Height | 9.27 mm |
| Material | Glass, Polymer, Thermoplastic |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Tin |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Number of Poles | 6 |
| Connector Type | Male Pin, Power, Rectangular |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.9972 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Ramp |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Compliant |
| Contact Gender | Male |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 1366
Distributors
pcbx
pcbxUnit Price$1.75859
Ext.Price$1.75859
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.75859 | $1.75859 |
| 10 | $1.62094 | $16.20940 |
| 25 | $1.56914 | $39.22850 |
| 50 | $1.51900 | $75.95000 |
| 100 | $1.47048 | $147.04800 |
| 300 | $1.38880 | $416.64000 |
| 500 | $1.31166 | $655.83000 |
| 1000 | $1.23880 | $1238.80000 |
