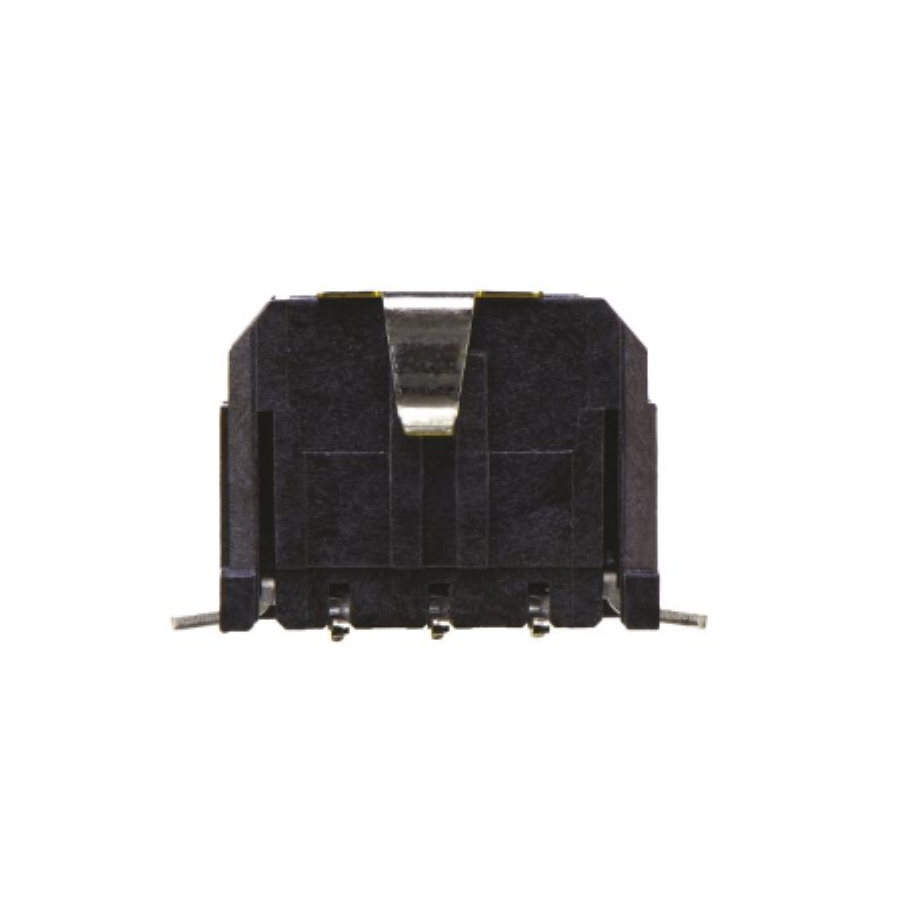

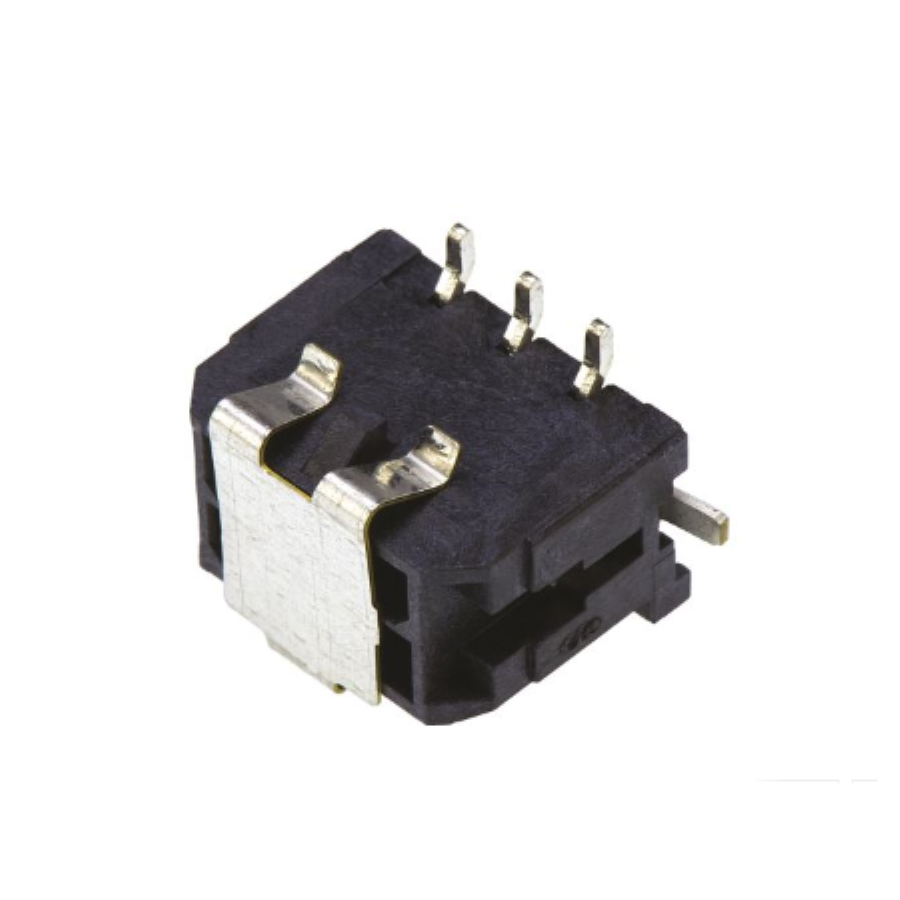

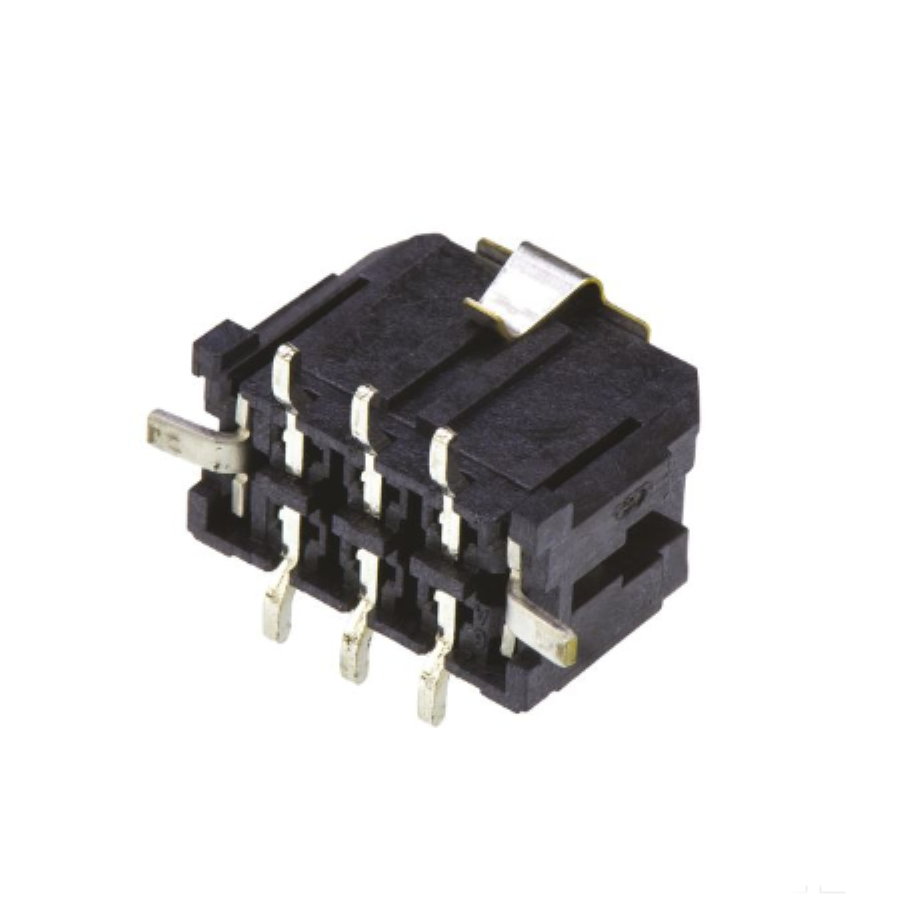

43045-0618
Manufacturer:
Molex
Mfr.Part #:
43045-0618
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:6 Pitch:3 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Diameter | 3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 6 |
| Material | Glass, Polymer |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 3 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| Number of Poles | 6 |
| Connector Type | Header |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 10 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
Stock: 519
Distributors
pcbx
pcbxUnit Price$1.97745
Ext.Price$1.97745
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.97745 | $1.97745 |
| 10 | $1.75260 | $17.52600 |
| 25 | $1.73380 | $43.34500 |
| 50 | $1.71499 | $85.74950 |
| 100 | $1.31403 | $131.40300 |
| 300 | $1.26429 | $379.28700 |
| 500 | $1.21644 | $608.22000 |
| 1000 | $1.17040 | $1170.40000 |
